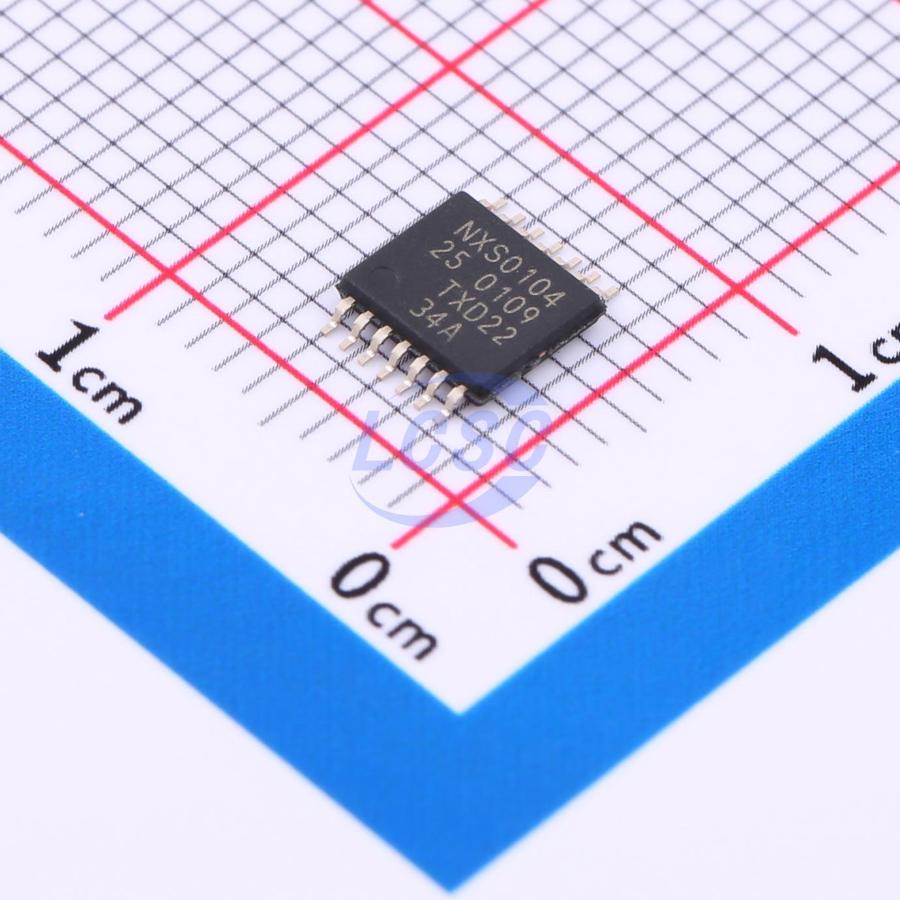

NXS0104PWJ
24Mbps TSSOP-14 Specialty Logic RoHS
Dual-supply voltage translation transceiver, open-drain, automatic direction sensing
- Manufacturer
- Nexperia
- Manufacturer part #
- NXS0104PWJ
- Store part #
- C551628
- Package / case
- TSSOP-14
- Category
- Specialty Logic
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36,506 in stock
#C551628
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.04 | ₹60.04 |
| 10+ | ₹46.87 | ₹468.70 |
| 30+ | ₹41.28 | ₹1,238.40 |
| 100+ | ₹34.08 | ₹3,408.00 |
| 500+ | ₹31.01 | ₹15,505.00 |
| 1,000+ | ₹29.21 | ₹29,210.00 |
1 × ₹60.04
₹60.04
excl. GST
₹70.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NXS0104PWJ
₹60.04 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Automatic direction detection;Output enable high-impedance;Power-off protection;Integrated pull-up resistor
- Channel Type
- Bidirectional
- Interface
- I2C;Single bus
- Voltage - Supply
- 1.65V~3.6V;2.3V~5.5V
- Data Rate
- 24Mbps
- Output Type
- Open-drain
- Number of Gates
- 4;-
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.17 g
Overview
The NXS0104 is a 4-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. It features two 4-bit input-output ports (An and Bn), one output enable input (OE) and two supply pins (VCC(A) and VCC(B)). VCC(A) can be supplied at any voltage between 1.65 V and 3.6 V and VCC(B) can be supplied at any voltage between 2.3 V and 5.5 V, making the device suitable for translating between any of the voltage nodes (1.8 V, 2.5 V, 3.3 V and 5.0 V). Pins An and OE are referenced to VCC(A) and pins Bn are referenced to VCC(B). A LOW level at pin OE causes the outputs to assume a high-impedance OFF-state. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
Applications
- Desktop PC
- Handset
- Smartphone Tablet
Key features
- Wide supply voltage range: VCC(A): 1.65 V to 3.6 V and VCC(B): 2.3 V to 5.5 V
- Maximum data rates: Push-pull: 24 Mbps
- IOFF circuitry provides partial Power-down mode operation
- Inputs accept voltages up to 5.5 V
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2500 V for A port; HBM: ANSI/ESDA/JEDEC JS-001 class 3B exceeds 15000 V for B port; CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V; IEC61000-4-2 contact discharge exceeds 8000 V for B port
- Latch-up performance exceeds 100 mA per JESD 78B Class II
- Multiple package options
- Specified from -40 °C to +85 °C and -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AIPTS0104TA14.TR#C5358052Wuxi I-core Elec · TSSOP-14 | Wuxi I-core Elec | TSSOP-14 | 3,555 | ₹55.92 · 3,555 in stock | View |
