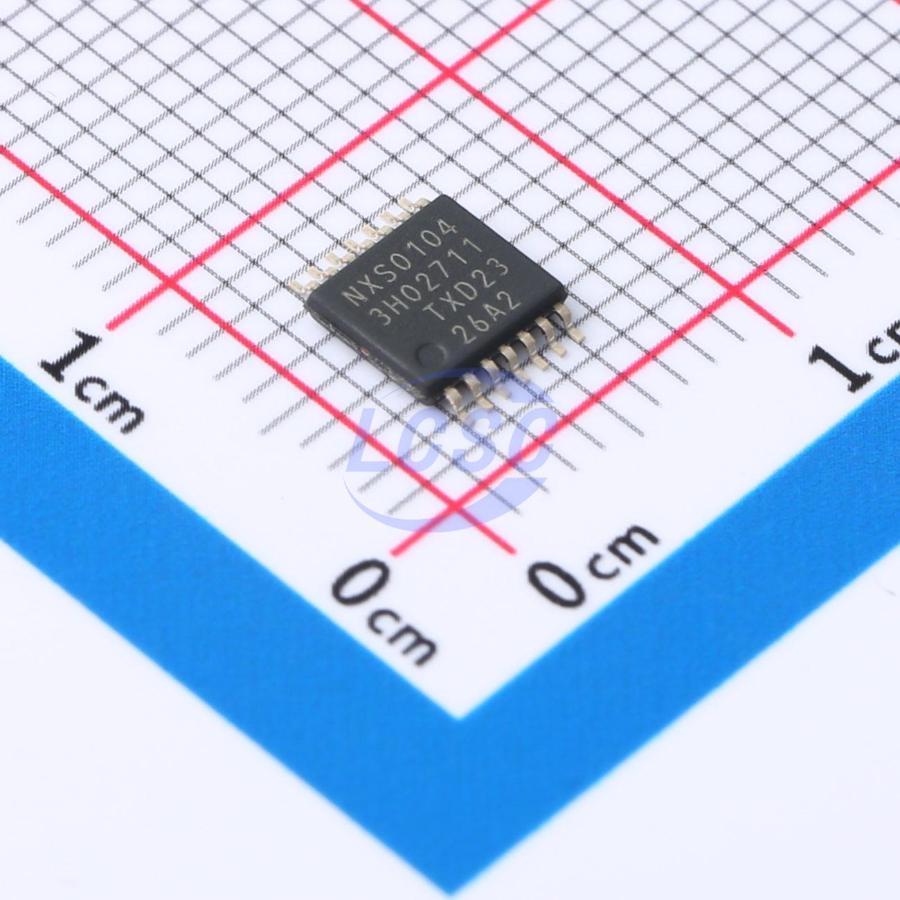

NXS0104PW-Q100J
24Mbps TSSOP-14 Specialty Logic RoHS
Dual-supply voltage translation transceiver, open-drain, automatic direction sensing
- Manufacturer
- Nexperia
- Manufacturer part #
- NXS0104PW-Q100J
- Store part #
- C551629
- Package / case
- TSSOP-14
- Category
- Specialty Logic
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,679 in stock
#C551629
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.30 | ₹62.30 |
| 10+ | ₹50.03 | ₹500.30 |
| 30+ | ₹44.07 | ₹1,322.10 |
| 100+ | ₹37.93 | ₹3,793.00 |
| 500+ | ₹34.32 | ₹17,160.00 |
| 1,000+ | ₹32.50 | ₹32,500.00 |
1 × ₹62.30
₹62.30
excl. GST
₹73.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NXS0104PW-Q100J
₹62.30 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Automatic direction detection;Power-off protection;Output enable high-impedance;Integrated pull-up resistor
- Channel Type
- Bidirectional
- Interface
- I2C;Single bus
- Voltage - Supply
- 1.65V~3.6V;2.3V~5.5V
- Data Rate
- 24Mbps
- Output Type
- Tri-State
- Number of Gates
- 4;-
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.122 g
Overview
The NXS0104-Q100 is a 4-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. It features two 4-bit input-output ports (An and Bn), one output enable input (OE) and two supply pins (VCC(A) and VCC(B)). VCC(A) can be supplied at any voltage between 1.65 V and 3.6 V and VCC(B) can be supplied at any voltage between 2.3 V and 5.5 V, making the device suitable for translating between any of the voltage nodes (1.8 V, 2.5 V, 3.3 V and 5.0 V). Pins An and OE are referenced to VCC(A) and pins Bn are referenced to VCC(B). A LOW level at pin OE causes the outputs to assume a high-impedance OFF-state. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.
Key features
- Automotive product qualification in accordance with AEC-Q100 (Grade 1)
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
- Wide supply voltage range: VCC(A): 1.65 V to 3.6 V and VCC(B): 2.3 V to 5.5 V
- Maximum data rates: Push-pull: 24 Mbps
- IOFF circuitry provides partial Power-down mode operation
- Inputs accept voltages up to 5.5 V
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2500 V for A port
- HBM: ANSI/ESDA/JEDEC JS-001 class 3B exceeds 15000 V for B port
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- IEC61000-4-2 contact discharge exceeds 8000 V for B port
- Latch-up performance exceeds 100 mA per JESD 78B Class II
- Multiple package options
- DHVQFN package with Side-Wettable Flanks enabling Automatic Optical Inspection (AOI) of solder joints
- Dual supply translating transceiver; open drain; auto direction sensing
