GREENMICRODatasheet (PDF)

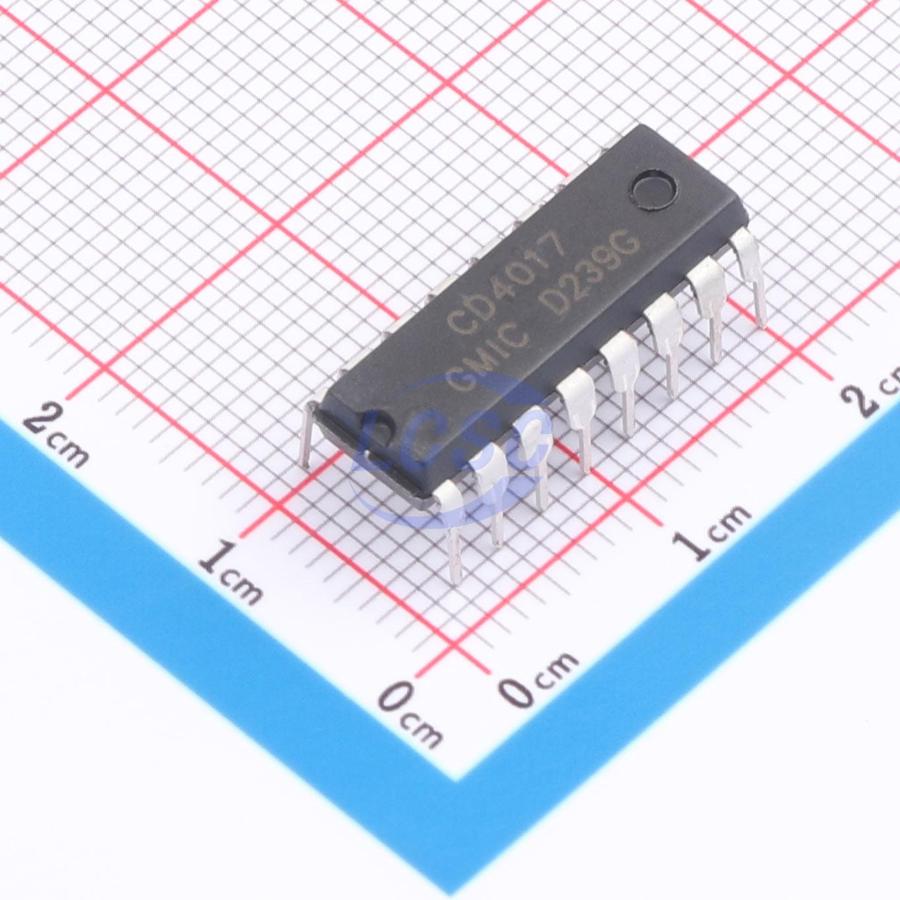

CD4017BED
Rising Edge 1 11MHz DIP-16 Counters, Dividers
DIP-16RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- CD4017BED
- Store part #
- C51898328
- Package / case
- DIP-16
- Category
- Counters, Dividers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,830 in stock
#C51898328
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.80 | ₹79.00 |
| 50+ | ₹12.70 | ₹635.00 |
| 150+ | ₹11.15 | ₹1,672.50 |
| 500+ | ₹9.99 | ₹4,995.00 |
| 2,000+ | ₹8.73 | ₹17,460.00 |
| 5,000+ | ₹8.27 | ₹41,350.00 |
5 × ₹15.80
₹79.00
excl. GST
₹93.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
CD4017BED
₹79.00 for 5 + GST
Specifications
- Logic Family
- CD4000
- Voltage - Supply
- 3V~18V
- Direction
- Up Counter
- Trigger Type
- Rising Edge
- Operating Temperature
- -40℃~+85℃
- Reset
- Asynchronous
- Number of Elements
- 1
- Propagation Delay
- 85ns
- Count Rate
- 11MHz
- Features
- Static operation;Reset function;Low-power mode
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.216 g
Overview
CD4017 is a 5-stage Johnson decade counter with 10 decoded high-level outputs. It includes CLOCK, RE, and INH inputs. The Schmitt trigger on the clock input provides pulse shaping, with no restrictions on the rise and fall times of the input clock pulses. When INH is low, the counter increments on the rising edge of the clock; otherwise, the count function is disabled. When RE is high, the counter is reset to zero.
Key features
- Fully static operation
- Standard symmetrical output characteristics
- Low power consumption
- Package: DIP16/SOP16/TSSOP16
