MSKSEMIDatasheet (PDF)

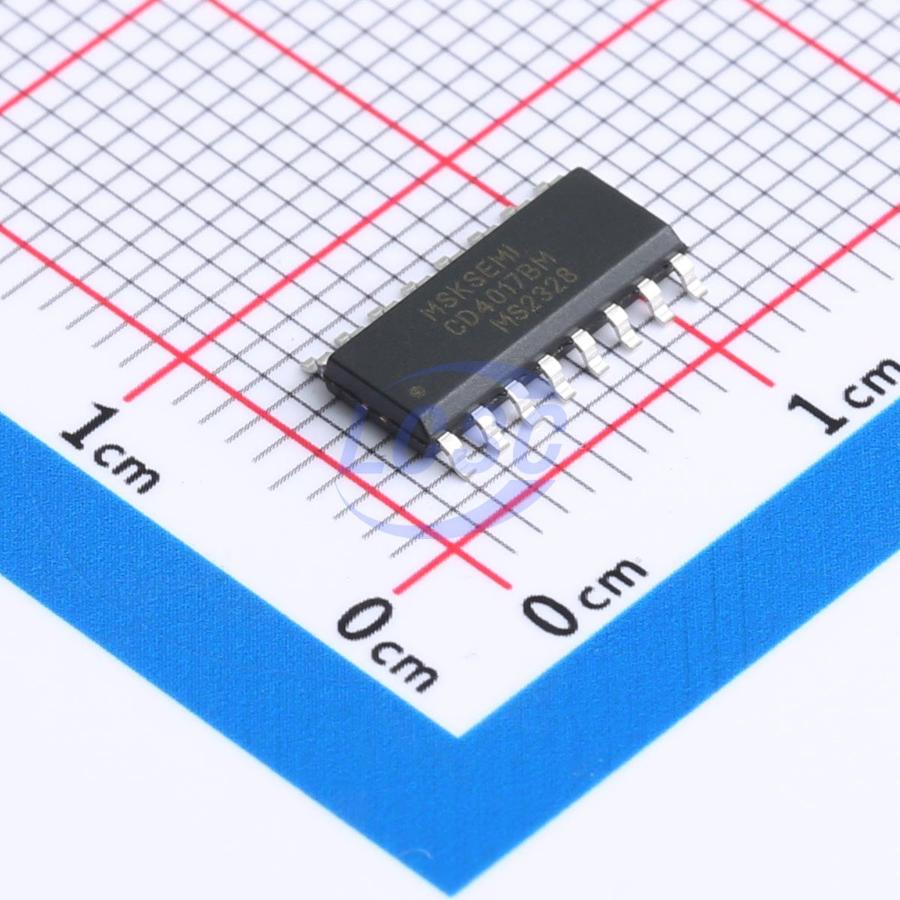

CD4017BM-MS
Rising Edge 1 5.5MHz SOP-16 Counters, Dividers
SOP-16RoHSActive
5-stage Johnson decoding counter
- Manufacturer
- MSKSEMI
- Manufacturer part #
- CD4017BM-MS
- Store part #
- C7473153
- Package / case
- SOP-16
- Category
- Counters, Dividers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,205 in stock
#C7473153
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.77 | ₹128.85 |
| 50+ | ₹20.51 | ₹1,025.50 |
| 150+ | ₹18.24 | ₹2,736.00 |
| 500+ | ₹15.44 | ₹7,720.00 |
| 2,500+ | ₹14.13 | ₹35,325.00 |
| 5,000+ | ₹13.38 | ₹66,900.00 |
5 × ₹25.77
₹128.85
excl. GST
₹152.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4017BM-MS
₹128.85 for 5 + GST
Specifications
- Logic Family
- CD4000
- Voltage - Supply
- 3V~18V
- Trigger Type
- Rising Edge
- Reset
- Asynchronous
- Operating Temperature
- -40℃~+85℃
- Number of Elements
- 1
- Propagation Delay
- 325ns
- Count Rate
- 5.5MHz
- Features
- Static operation;Reset function
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.302 g
Overview
The CD4017 is a 5-stage Johnson decade counter with 10 decoded outputs and CLOCK, RE, and INH inputs. The Schmitt trigger on the clock input provides pulse shaping, with no restrictions on the rise and fall times of the input clock pulses. When INH is low, the counter increments on the rising edge of the clock; when INH is high, the counting function is disabled. When RE is high, the counter is reset to zero.
Key features
- Fully static operation, 5V / 10V / 15V standard parameter range
- Standard symmetrical output characteristics
- Industrial-grade temperature range operation (-40~85℃)
- 100% tested quiescent current at 20V
- Package: DIP-16 / SOP-16 / TSSOP-16
