HGSEMIDatasheet (PDF)

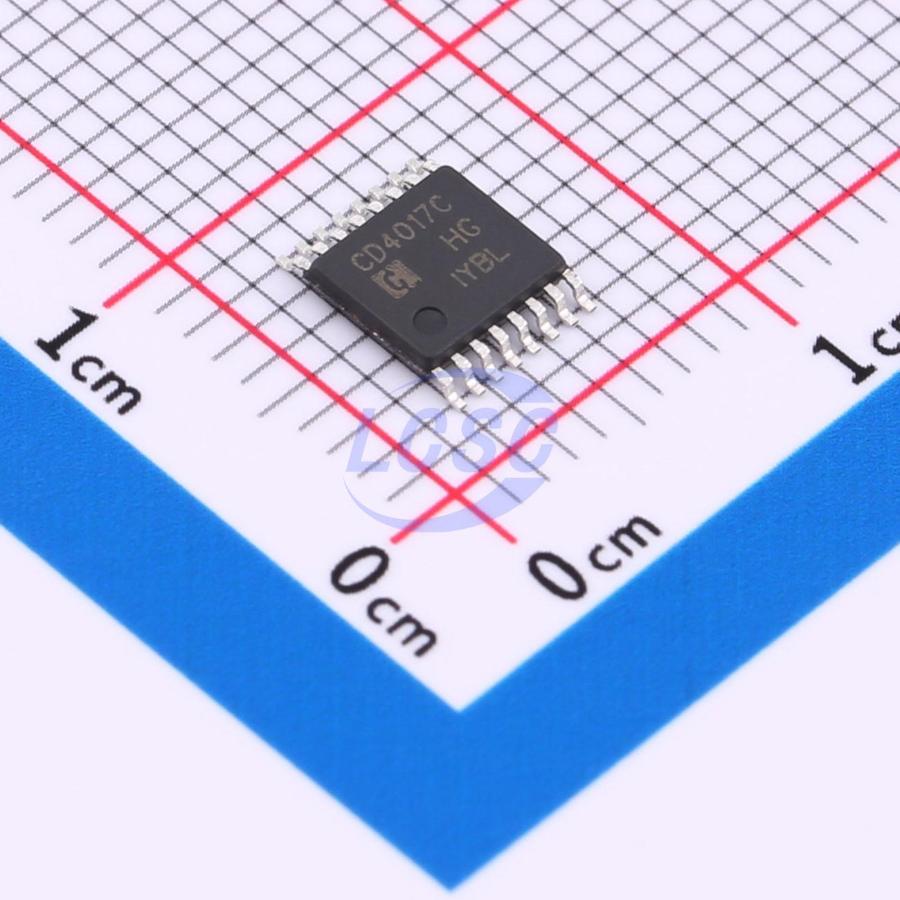

CD4017CMT/TR
Rising Edge 5 5.5MHz TSSOP-16 Counters, Dividers
TSSOP-16RoHSActive
5-stage Johnson decoding counter
- Manufacturer
- HGSEMI
- Manufacturer part #
- CD4017CMT/TR
- Store part #
- C20613260
- Package / case
- TSSOP-16
- Category
- Counters, Dividers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,020 in stock
#C20613260
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.22 | ₹91.10 |
| 50+ | ₹14.26 | ₹713.00 |
| 150+ | ₹12.28 | ₹1,842.00 |
| 500+ | ₹10.80 | ₹5,400.00 |
| 2,500+ | ₹10.09 | ₹25,225.00 |
| 5,000+ | ₹9.50 | ₹47,500.00 |
5 × ₹18.22
₹91.10
excl. GST
₹107.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4017CMT/TR
₹91.10 for 5 + GST
Specifications
- Logic Family
- CD4000
- Voltage - Supply
- 3V~15V
- Direction
- Up Counter
- Trigger Type
- Rising Edge
- Timing
- Synchronous
- Operating Temperature
- -40℃~+85℃
- Reset
- Asynchronous
- Number of Elements
- 5
- Propagation Delay
- 85ns
- Count Rate
- 5.5MHz
- Features
- Static operation;Reset function
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.232 g
Overview
CD4017C is a 5-stage Johnson decade counter with 10 decoded outputs and CLOCK, RE, INH inputs. The Schmitt trigger on the clock input provides pulse shaping, with no restrictions on the rise and fall times of the input clock pulses. When INH is low, the counter advances on the rising edge of the clock; otherwise, the count function is disabled. When RE is high, the counter resets to zero.
Key features
- Fully static operation
- 5V, 10V, 15V parametric standard ranges
- Standard symmetrical output characteristics
- Operating temperature range: -40 ~ 85℃
- 100% quiescent current tested at 15V
- Package: DIP-16/SOP-16/TSSOP-16
