lingxingicDatasheet (PDF)

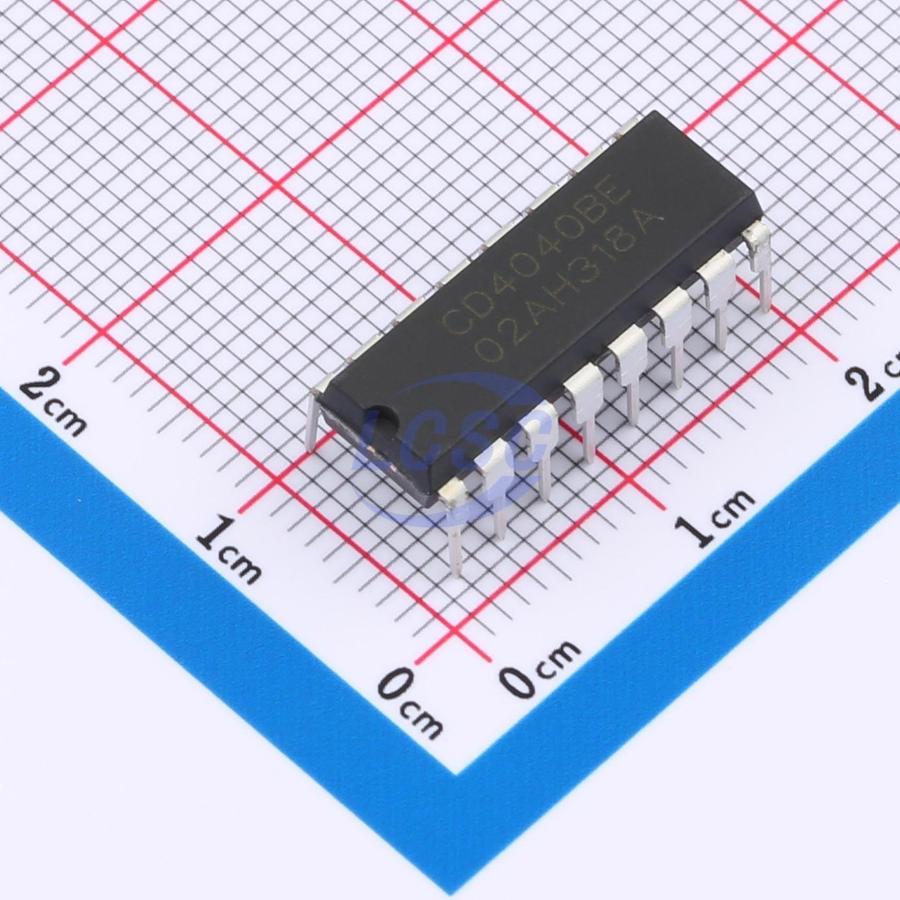

CD4040BE(LX)
Falling Edge 1 98MHz DIP-16 Counters, Dividers
DIP-16RoHSActive
12-stage Binary Ripple Counter
- Manufacturer
- lingxingic
- Manufacturer part #
- CD4040BE(LX)
- Store part #
- C22390246
- Package / case
- DIP-16
- Category
- Counters, Dividers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,410 in stock
#C22390246
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.86 | ₹139.30 |
| 50+ | ₹21.88 | ₹1,094.00 |
| 150+ | ₹19.32 | ₹2,898.00 |
| 500+ | ₹16.11 | ₹8,055.00 |
| 2,500+ | ₹14.70 | ₹36,750.00 |
| 5,000+ | ₹13.84 | ₹69,200.00 |
5 × ₹27.86
₹139.30
excl. GST
₹164.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
CD4040BE(LX)
₹139.30 for 5 + GST
Specifications
- Logic Family
- CD4000
- Voltage - Supply
- 2V~6V
- Direction
- Up Counter
- Trigger Type
- Falling Edge
- Timing
- Asynchronous
- Operating Temperature
- -40℃~+125℃
- Reset
- Asynchronous
- Number of Elements
- 1
- Propagation Delay
- 14ns
- Count Rate
- 98MHz
- Features
- Reset function
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.649 g
Overview
The CD4040 is a 12-stage binary ripple counter with a clock input (CP), an overriding asynchronous master reset input (MR) and twelve parallel outputs (Q0 to Q11). Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Specified from -40℃ to +125℃
- Packaging information: DIP16/SOP16/TSSOP16
