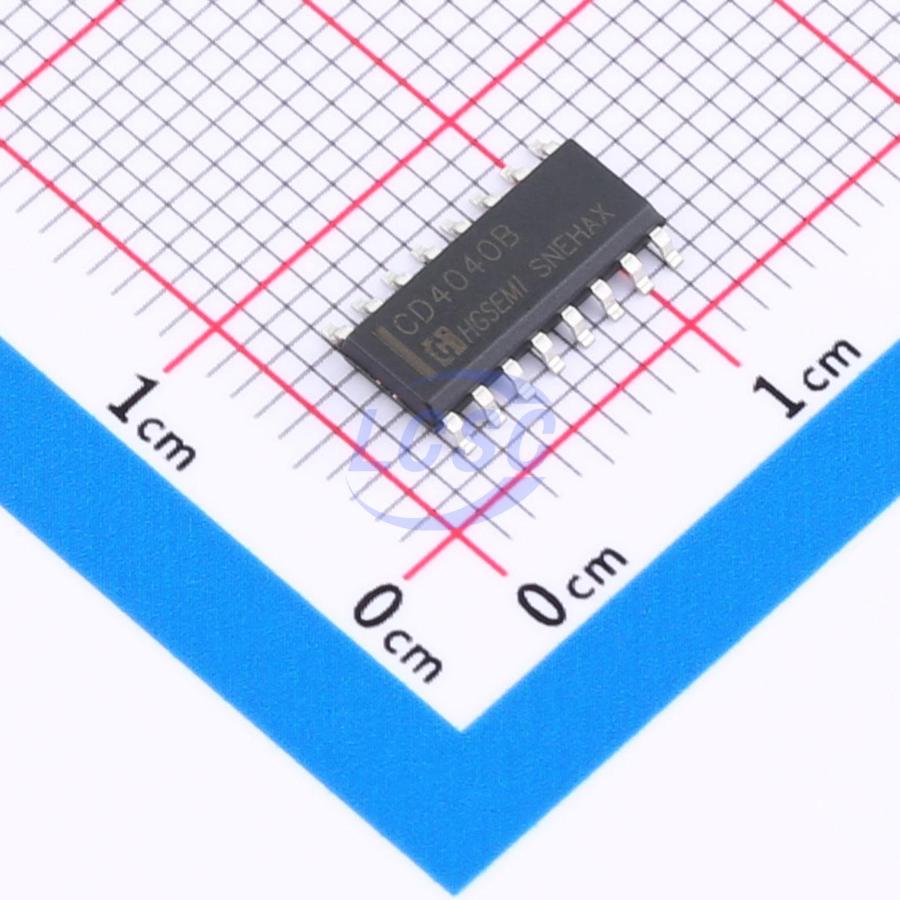

HGSEMIDatasheet (PDF)
CD4040BM/TR
Falling Edge 12MHz SOP-16 Counters, Dividers
SOP-16RoHSActive
Ripple Carry Binary Counters
- Manufacturer
- HGSEMI
- Manufacturer part #
- CD4040BM/TR
- Store part #
- C725347
- Package / case
- SOP-16
- Category
- Counters, Dividers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,155 in stock
#C725347
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.50 | ₹87.50 |
| 50+ | ₹13.64 | ₹682.00 |
| 150+ | ₹11.71 | ₹1,756.50 |
| 500+ | ₹10.27 | ₹5,135.00 |
| 2,500+ | ₹9.99 | ₹24,975.00 |
| 5,000+ | ₹9.42 | ₹47,100.00 |
5 × ₹17.50
₹87.50
excl. GST
₹103.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4040BM/TR
₹87.50 for 5 + GST
Specifications
- Logic Family
- CD4000
- Voltage - Supply
- 3V~15V
- Direction
- Up Counter
- Trigger Type
- Falling Edge
- Timing
- Asynchronous
- Operating Temperature
- -40℃~+85℃
- Reset
- Asynchronous
- Propagation Delay
- 100ns
- Count Rate
- 12MHz
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.348 g
Overview
The CD4040B is a 12-stage ripple-carry binary counter. The counter advances one count on each negative transition of the clock pulse. The counter can be reset to the zero state independently of the clock by a logic "1" at the reset input.
Key features
- Wide supply voltage range: 1.0V ~ 15V
- High noise immunity: typical 0.45 VDD
- Low-power TTL compatibility: drives 2× 74L or 1× 74LS
- Medium-speed operation: typical 8 MHz at VDD = 10V
- Schmitt trigger clock input
- Packages: DIP-16, SOP-16, TSSOP-16
