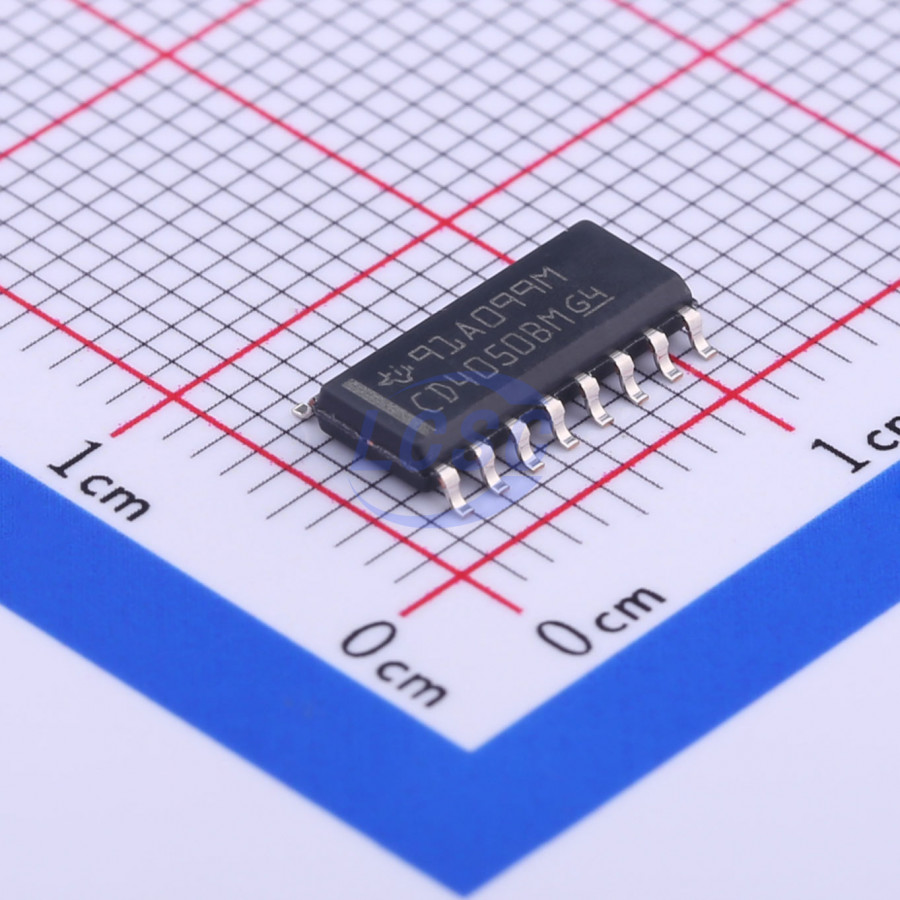

CD4050BDR

CD4049UB Inverting CD4050B Noninverting High Sink Current for Driving 2 TTL Loads High-to-Low Level Logic Conversion 100% Tested for Quiescent Current at 20 V Maximum Input Current of 1 μA at 18 V Over Full Package Temperature Range; 100 nA at 18 V and 25 ℃ 5-V, 10-V, and 15-V Parametric Ratings The CD4049UB and CD4050B devices are inverting and noninverting hex buffers, and feature logic-level conversion using only one supply voltage (VCC). The input-signal high level (VIH) can exceed the VCC supply voltage when these devices are used for logiclevel conversions. These devices are intended for use as CMOS to DTL or TTL converters and can drive directly two DTL or TTL loads. (VCC = 5 V, VOL ≤ 0.4 V, and IOL ≥ 3.3 mA.)

Applications

• CMOS to DTL or TTL Hex Converters
• CMOS Current Sink or Source Drivers
• CMOS High-to-Low Logic Level Converters

Key features

• High Sink Current for Driving 2 TTL Loads
• High-to-Low Level Logic Conversion
• 100% Tested for Quiescent Current at 20 V
• Maximum Input Current of 1 μA at 18 V Over Full Package Temperature Range; 100 nA at 18 V and 25 ℃
• 5-V, 10-V, and 15-V Parametric Ratings
• Logic-level conversion using only one supply voltage (VCC)
• The input-signal high level (VIH) can exceed the VCC supply voltage when used for logiclevel conversions
• Can drive directly two DTL or TTL loads (VCC = 5 V, VOL ≤ 0.4 V, and IOL ≥ 3.3 mA)
