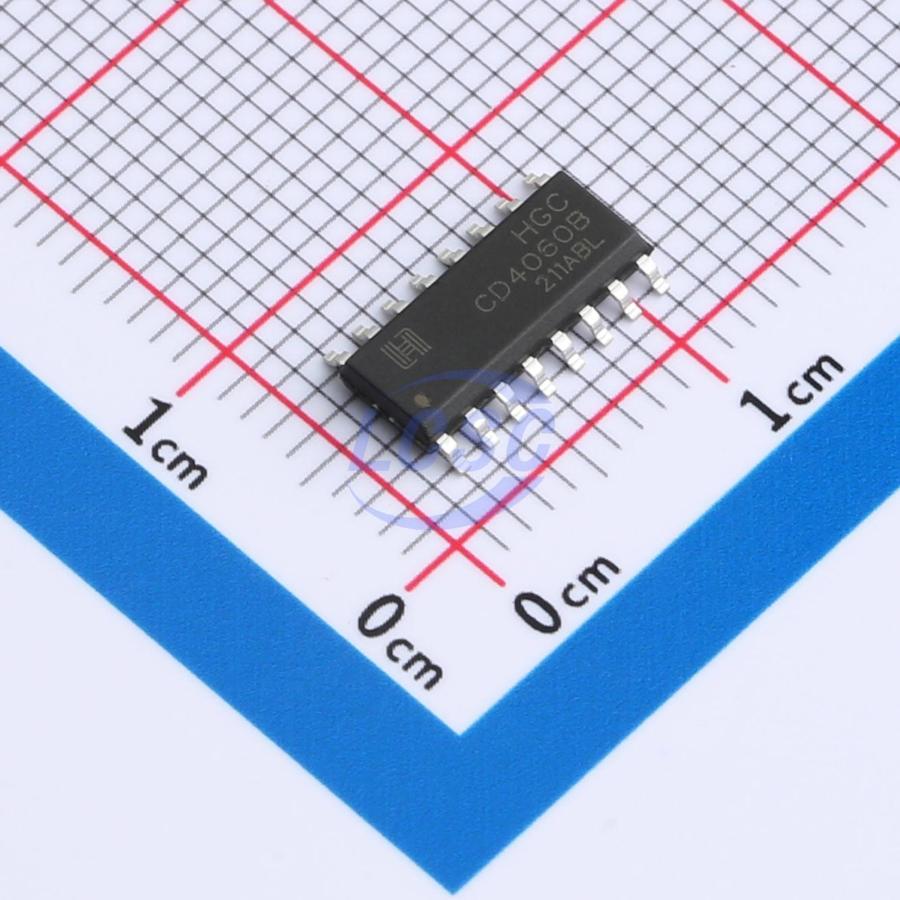

CD4060BDRG
Falling Edge 1 7MHz SOP-16 Counters, Dividers RoHS
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- CD4060BDRG
- Store part #
- C5145434
- Package / case
- SOP-16
- Category
- Counters, Dividers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,460 in stock
#C5145434
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.07 | ₹55.35 |
| 50+ | ₹8.71 | ₹435.50 |
| 150+ | ₹7.51 | ₹1,126.50 |
| 500+ | ₹6.63 | ₹3,315.00 |
| 2,500+ | ₹5.62 | ₹14,050.00 |
| 5,000+ | ₹5.27 | ₹26,350.00 |
5 × ₹11.07
₹55.35
excl. GST
₹65.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4060BDRG
₹55.35 for 5 + GST
Specifications
- Logic Family
- CD4000
- Voltage - Supply
- 2V~20V
- Trigger Type
- Falling Edge
- Timing
- Asynchronous
- Reset
- Asynchronous
- Operating Temperature
- -40℃~+85℃
- Number of Elements
- 1
- Propagation Delay
- 100ns@15V,50pF
- Count Rate
- 7MHz
- Features
- Reset function
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.34 g
Overview
CD4060B is a 14-stage binary counter featuring an integrated oscillator driver and a 14-bit binary counter. The oscillator driver can be configured via external components to operate as either an RC oscillator or a crystal oscillator driver. A dedicated reset pin is provided to clear the counter and control the oscillator on/off state. When the reset pin is driven high, the counter is reset and the oscillator is disabled. All flip-flops in the counter are asynchronous edge-triggered. The counter state changes on the falling edge of φi (φo).
Key features
- Wide voltage operating range
- 12MHz operation at 15V
- Active-high reset function
- Symmetrical output characteristics
- Characterized at 5V, 10V, and 15V
