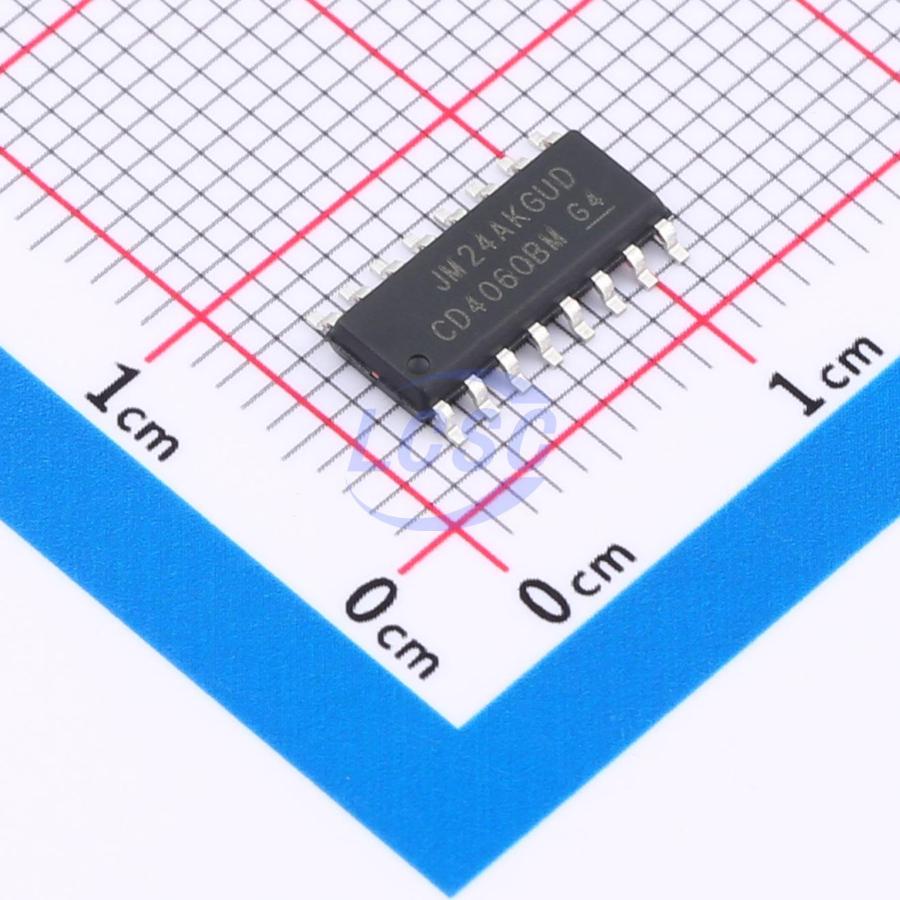

CD4060BM-TD
Falling Edge 1 12MHz SOP-16 Counters, Dividers RoHS
14-bit binary divider/oscillator
- Manufacturer
- TDSEMIC
- Manufacturer part #
- CD4060BM-TD
- Store part #
- C42421848
- Package / case
- SOP-16
- Category
- Counters, Dividers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,595 in stock
#C42421848
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.83 | ₹89.15 |
| 50+ | ₹13.88 | ₹694.00 |
| 150+ | ₹11.89 | ₹1,783.50 |
| 500+ | ₹10.41 | ₹5,205.00 |
| 2,500+ | ₹9.22 | ₹23,050.00 |
| 5,000+ | ₹8.64 | ₹43,200.00 |
5 × ₹17.83
₹89.15
excl. GST
₹105.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4060BM-TD
₹89.15 for 5 + GST
Specifications
- Logic Family
- CD4000
- Voltage - Supply
- 2V~20V
- Direction
- Up Counter
- Trigger Type
- Falling Edge
- Timing
- Asynchronous
- Reset
- Asynchronous
- Operating Temperature
- -40℃~+85℃
- Number of Elements
- 1
- Count Rate
- 12MHz
- Features
- Reset function
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.203 g
Overview
The CD4060B is a 14-stage binary counter that integrates an oscillator driver module and a 14-bit binary counter module. The circuit can be configured with external components to use the oscillator driver as either an RC oscillator or a crystal oscillator driver. A reset pin is provided to clear the counter value and control the enable/disable of the oscillator module. When the reset pin is driven HIGH, the counter is reset and the oscillator is disabled. All flip-flops in the counter are asynchronous edge-triggered. The counter state changes on the falling edge of φi (φo).
Key features
- Wide supply voltage range
- Up to 12MHz operation at 15V
- Active-high reset function
- Well-defined symmetrical output characteristics
- Characterized at 5V, 10V, and 15V
