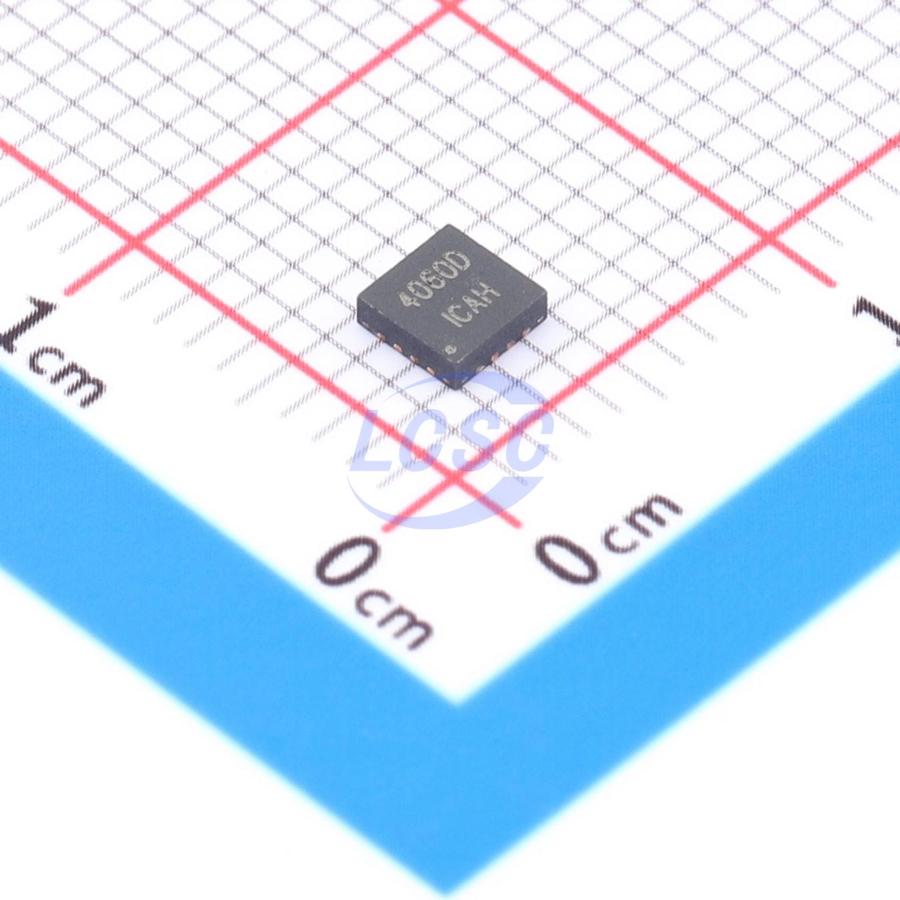

CD4060DLQ/TR
Falling Edge QFN-16-EP(3x3) Counters, Dividers
A chip composed of an oscillator and a 14-bit binary serial counter
- Manufacturer
- HGSEMI
- Manufacturer part #
- CD4060DLQ/TR
- Store part #
- C42463854
- Package / case
- QFN-16-EP(3x3)
- Category
- Counters, Dividers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,785 in stock
#C42463854
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.34 | ₹66.70 |
| 50+ | ₹11.68 | ₹584.00 |
| 150+ | ₹10.86 | ₹1,629.00 |
| 500+ | ₹10.24 | ₹5,120.00 |
| 2,500+ | ₹9.75 | ₹24,375.00 |
| 5,000+ | ₹9.50 | ₹47,500.00 |
5 × ₹13.34
₹66.70
excl. GST
₹78.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CD4060DLQ/TR
₹66.70 for 5 + GST
Specifications
- Logic Family
- CD4000
- Voltage - Supply
- 3V~15V
- Trigger Type
- Falling Edge
- Operating Temperature
- -40℃~+85℃
- Reset
- Asynchronous
- Propagation Delay
- 190ns
- Features
- Reset function
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.154 g
Overview
CD4060D is composed of an oscillator and a 14-bit binary serial counter. The oscillator structure can be an external RC or crystal oscillator circuit. When RESET is high, the counter is cleared and the oscillator is disabled. All counter bits are master-slave flip-flops. The counter counts in binary on the falling edge of Φ0 (and Φ0). A Schmitt trigger is used on the clock pulse line to limit the clock rise and fall times.
Applications
- Timer/Counter
- Signal Generator
- Frequency Counter
- Other Applications
Key features
- Low input current: IIN ≤ 1uA, VIN = VDD - VSS = 1.5V, Ta = 25℃
- Low quiescent current: IDD = 0.2uA (typ) @ VDD - VSS = 15V, Ta = 25℃
- External RC or crystal oscillator circuit configuration
- Wide operating voltage VDD - VSS range: 3V ~ 15V
- Schmitt trigger input for noise immunity
- Package types: DIP-16, SOP-16, TSSOP-16, QFN-16
