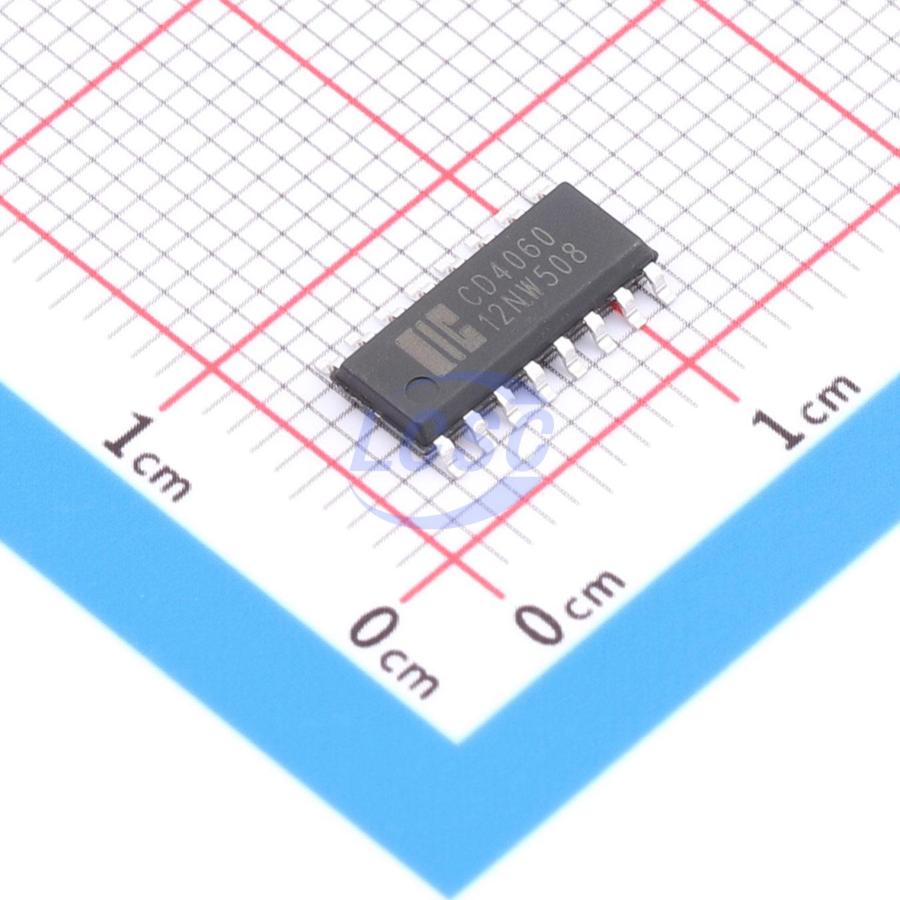

CD4060SA16.TR
Falling Edge SOP-16 Counters, Dividers
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- CD4060SA16.TR
- Store part #
- C51940038
- Package / case
- SOP-16
- Category
- Counters, Dividers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,855 in stock
#C51940038
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.37 | ₹76.85 |
| 50+ | ₹13.49 | ₹674.50 |
| 150+ | ₹12.69 | ₹1,903.50 |
| 500+ | ₹11.70 | ₹5,850.00 |
| 2,500+ | ₹11.25 | ₹28,125.00 |
| 4,000+ | ₹10.98 | ₹43,920.00 |
5 × ₹15.37
₹76.85
excl. GST
₹90.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CD4060SA16.TR
₹76.85 for 5 + GST
Specifications
- Logic Family
- CD4000
- Voltage - Supply
- 3V~15V
- Trigger Type
- Falling Edge
- Timing
- Asynchronous
- Operating Temperature
- -40℃~+125℃
- Reset
- Asynchronous
- Propagation Delay
- 100ns@15V,50pF
- Features
- Static operation;Reset function
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
The CD4060 is a 14-stage ripple-carry binary counter/divider and oscillator, featuring three oscillator terminals, ten buffered outputs, and an asynchronous master reset input. The oscillator configuration allows RC or crystal oscillator circuits to be designed, or it can be replaced by an external clock signal at the input. The counter advances on the falling edge of the clock. A high-level master reset signal will reset all counter outputs regardless of other input conditions. The device operates over a recommended supply voltage range of 3V to 15V. Unused inputs must be connected to VDD, VSS, or another input.
Key features
- Wide supply voltage range: 3V to 15V
- Tolerates slow clock rise and fall times
- Fully static operation
- 5V, 10V, and 15V parametric ratings
- Standardized symmetrical output characteristics
- ESD protection on inputs and outputs
- Operating temperature range: -40℃ to +125℃
- Package types: DIP16, SOP16, TSSOP16
