CD4068BM96
4.2mA 5uA 4.2mA 3V~18V 1 SOIC-14 Gates and Inverters - Multi-Function, Configurable RoHS
SOIC-14ROHS3 CompliantActive

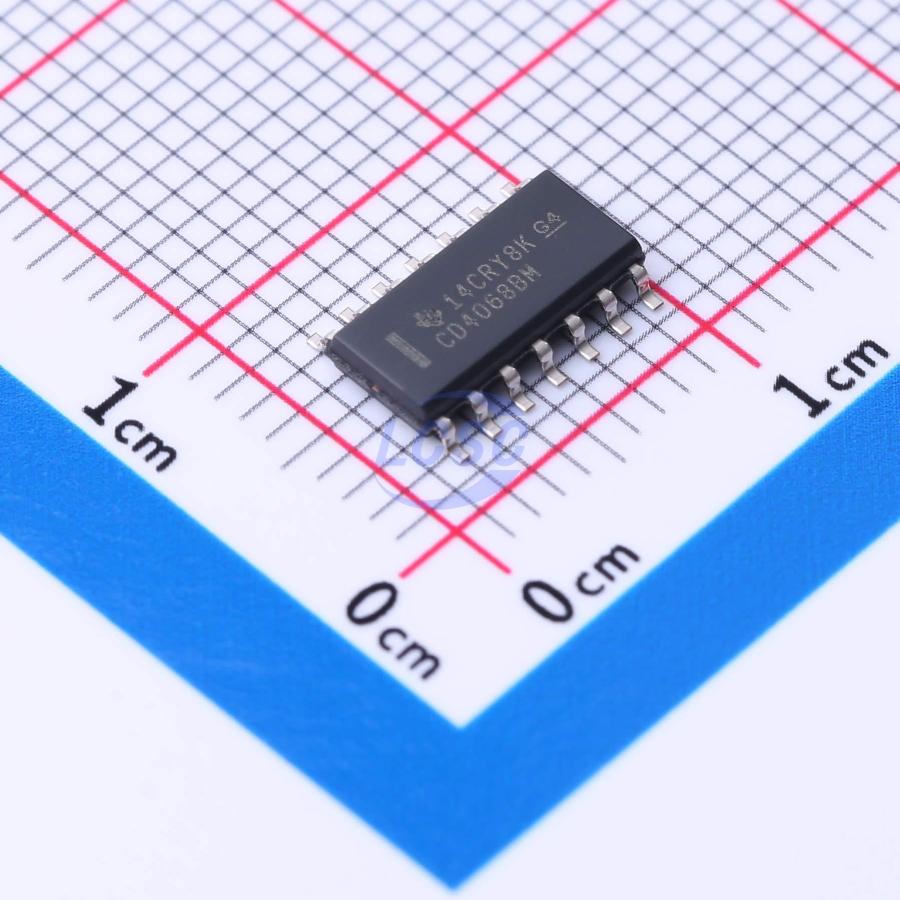

CMOS 8-input NAND/AND Gate
- Manufacturer
- TI
- Manufacturer part #
- CD4068BM96
- Store part #
- C2859569
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,812 in stock
#C2859569
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹94.93 | ₹94.93 |
| 10+ | ₹75.81 | ₹758.10 |
| 30+ | ₹66.26 | ₹1,987.80 |
| 100+ | ₹56.92 | ₹5,692.00 |
| 500+ | ₹51.27 | ₹25,635.00 |
| 1,000+ | ₹48.22 | ₹48,220.00 |
1 × ₹94.93
₹94.93
excl. GST
₹112.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4068BM96
₹94.93 for 1 + GST
Specifications
- Input Logic Level - High
- 3.5V;7V;11V
- Input Logic Level - Low
- 1.5V;3V;4V
- Logic Family
- 4000B Series
- Propagation Delay
- 300ns@5V,50pF;150ns@10V,50pF;110ns@15V,50pF
- Current - Output Low(IOL)
- 4.2mA
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 5uA
- Current - Output High(IOH)
- 4.2mA
- Voltage - Supply
- 3V~18V
- Operating Temperature
- -55℃~+125℃
- Number of Gates
- 1
- Output Logic Level - Low
- 50mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.24 g
Overview
CD4068B NAND/AND gate: provides the system designer with direct.imple. mentation of the positive-togic 8-input NAND and AND functions and supplements the existing family of CMOS gates.
Key features
- Medium-Speed Operation: tPhL. ΔPLH = 75 ns (typ.) at VDD = 10 V
- Buffered inputs and outputs
- 5-V, 10-V, and 15-V parametric ratings
- Standardized symmetrical output characteristics
- 100% tested for quiescent current at 20 V
- Maximum input current of 1 μA at 18 V over full package-temperature range; 100 nA at 18 V and ≥ 50 ℃
- Noise margin (over full package-temperature range): 1 V at VDD = 5 V, 2 V at VDD = 10 V, 2.5 V at VDD = 15 V
- Meets all requirements of JEDEC Tentative Standard No. 138, "Standard Specifications for Description of 'B' Series CMOS Devices"
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4068BM#C2862983TI · SOIC-14 | TI | SOIC-14 | 6 | ₹305.16 · 6 in stock | View |
 | CD4068BM/TR#C3007966HGSEMI · SOP-14 | HGSEMI | SOP-14 | 1,100 | ₹20.32 · 1,100 in stock | View |
