lingxingic

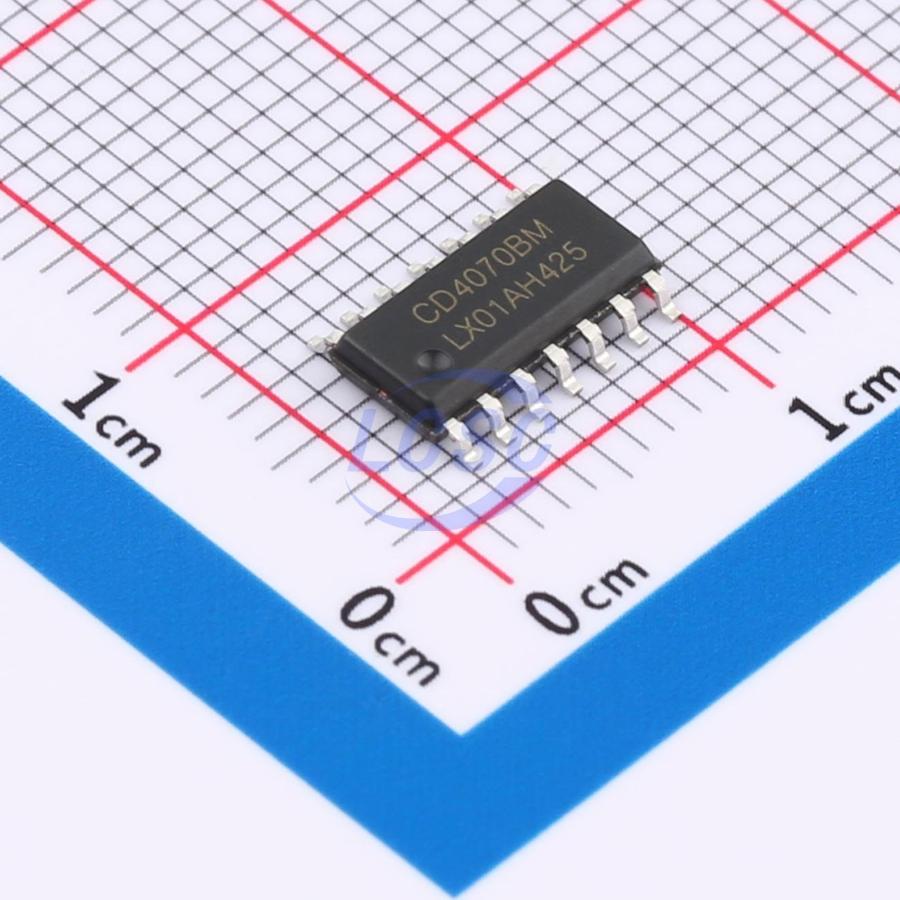

CD4070BM(LX)

1uA 3V~15V 100ns@15V,50pF SOP-14 Gates and Inverters

SOP-14RoHSActive

Quad 2-input Exclusive-or Gate

Manufacturer: lingxingic
Manufacturer part #: CD4070BM(LX)
Store part #: C32710662
Package / case: SOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,915 in stock

#C32710662

Stock & price checked 37 h ago

Quantity	Unit price	Pack price
5+	₹15.84	₹79.20
50+	₹12.45	₹622.50
150+	₹10.76	₹1,614.00
500+	₹9.49	₹4,745.00
2,500+	₹8.07	₹20,175.00
4,000+	₹7.57	₹30,280.00

Quantity (min 5, multiples of 5)

5 × ₹15.84

₹79.20

excl. GST

₹93.46 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

CD4070BM(LX)

₹79.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Logic Level - High: 3.5V;7V;11V
Input Logic Level - Low: 1.5V;3V;4V
Operating Temperature: -40℃~+125℃
Logic Family: 4000 Series
Output Logic Level - High: 4.95V~5V;9.95V~10V;14.95V~15V
Quiescent Current(Iq): 1uA
Voltage - Supply: 3V~15V
Current - Output High(IOH): 3.4mA
Number of Channels: 4;2
Output Logic Level - Low: 50mV
Propagation Delay: 100ns@15V,50pF
Current - Output Low(IOL): 3.4mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.225 g

Overview

The CD4070 is a quad 2-input EXCLUSIVE-OR gate. The outputs are fully buffered for the highest noise immunity and pattern insensitivity to output impedance. It operates over a recommended ΔVDD power supply range of 3V to 15V referenced to vss (usually ground). Unused inputs must be connected to ΔVDD, vss, or another input.
