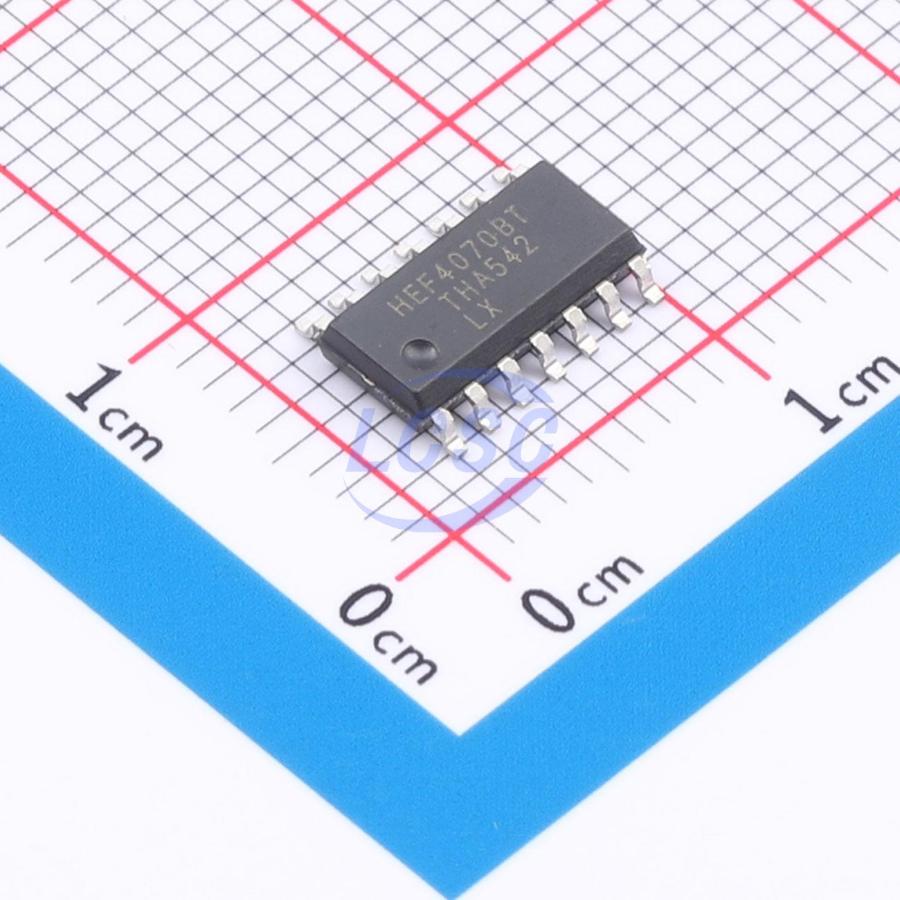

HEF4070BT(LX)
3V~15V 100ns@15V,50pF 1uA SOP-14 Gates and Inverters
SOP-14RoHSActive
- Manufacturer
- lingxingic
- Manufacturer part #
- HEF4070BT(LX)
- Store part #
- C52261134
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,995 in stock
#C52261134
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.78 | ₹143.90 |
| 50+ | ₹22.76 | ₹1,138.00 |
| 150+ | ₹20.19 | ₹3,028.50 |
| 500+ | ₹16.97 | ₹8,485.00 |
| 2,500+ | ₹15.55 | ₹38,875.00 |
| 4,000+ | ₹14.69 | ₹58,760.00 |
5 × ₹28.78
₹143.90
excl. GST
₹169.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
HEF4070BT(LX)
₹143.90 for 5 + GST
Specifications
- Logic Family
- 4000 Series
- Voltage - Supply
- 3V~15V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 100ns@15V,50pF
- Input Logic Level - High
- 3.5V;7V;11V
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 1.5V;3V;4V
- Output Logic Level - High
- 4.95V~5V;9.95V~10V;14.95V~15V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.14 g
Overview
HEF4070 is a quad 2-input XOR gate with an operating voltage range of 3V~15V (referenced to VSS, typically connected to ground). Unused inputs must be connected to VDD, VSS, or another input.
Key features
- Operating voltage range: 3V~15V
- Available in 5V, 10V, and 15V parametric ratings
- Operating temperature range: -40℃~+125℃
- Package: SOP14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4070BM(LX)#C32710662lingxingic · SOP-14 | lingxingic | SOP-14 | 4,940 | ₹15.84 · 4,940 in stock | View |
