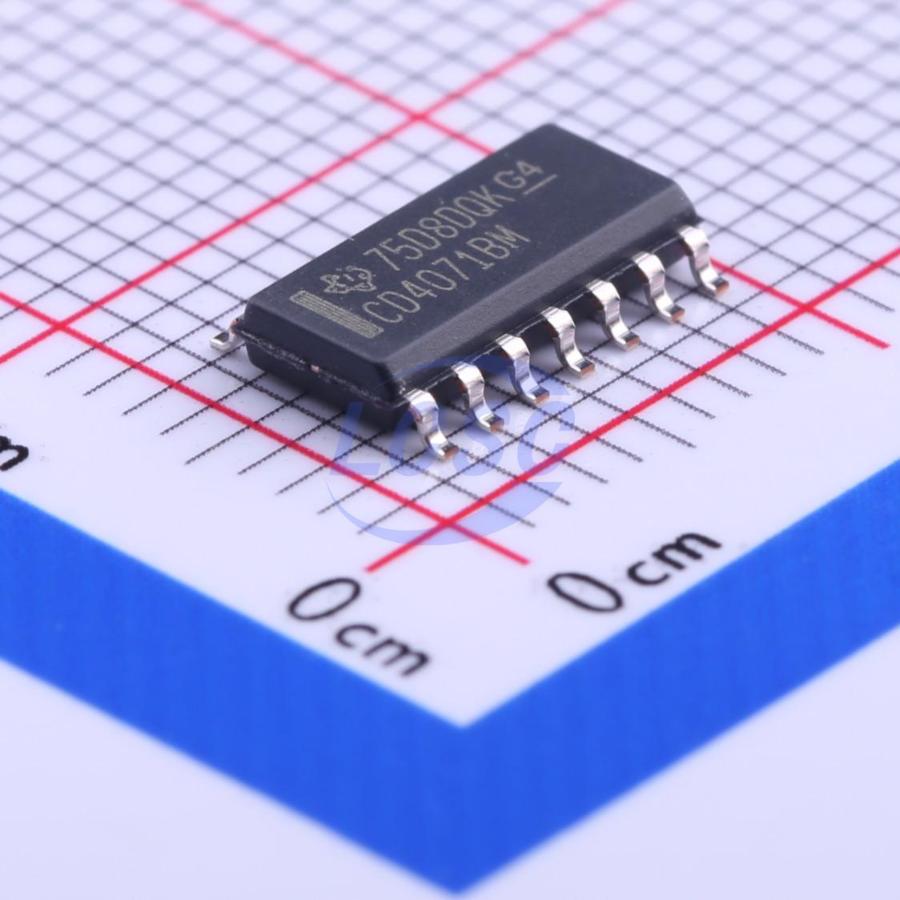

CD4071BM96
1uA 3V~18V 60ns@10V,50pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
CMOS OR Gates
- Manufacturer
- TI
- Manufacturer part #
- CD4071BM96
- Store part #
- C97039
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,360 in stock
#C97039
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.91 | ₹65.91 |
| 10+ | ₹52.47 | ₹524.70 |
| 30+ | ₹46.62 | ₹1,398.60 |
| 100+ | ₹39.25 | ₹3,925.00 |
| 500+ | ₹36.00 | ₹18,000.00 |
| 1,000+ | ₹32.10 | ₹32,100.00 |
1 × ₹65.91
₹65.91
excl. GST
₹77.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4071BM96
₹65.91 for 1 + GST
Specifications
- Input Logic Level - High
- 3.5V~11V
- Input Logic Level - Low
- 1.5V~4V
- Operating Temperature
- -55℃~+125℃
- Logic Family
- 4000B Series
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~18V
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 60ns@10V,50pF
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
OR gates provide the system designer with direct implementation of the positive- logic OR function and supplement the existing family of CMOS gates.
Key features
- Medium- Speed Operation - tPLH, tPHL = 60 ns (typ.) at VDD = 10V
- 100% tested for quiescent current at 20V
- Maximum input current of 1μA at 18V over full package- temperature range; 100nA at 18V and 25℃
- Standardized, symmetrical output characteristics
- Noise margin (over full package temperature range): 1V at VDD = 5V, 3V at VDD = 10V, 2.5V at VDD = 15V
- 5 - V, 10 - V and 15 - V parametric ratings
- Meets all requirements of JEDEC Tentative Standard No.13B, Standard Specifications for Description of δ'B' Series CMOS Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4071BDTR(XBLW)#C42376983XBLW · SOP-14 | XBLW | SOP-14 | 340 | ₹21.21 · 340 in stock | View |
 | CD4071BM/TR#C910854HGSEMI · SOP-14 | HGSEMI | SOP-14 | 2,690 | ₹14.82 · 2,690 in stock | View |
 | MC14071BDR2G#C7287onsemi · SOIC-14 | onsemi | SOIC-14 | 2 | ₹61.10 · 2 in stock | View |
 | MC14071BDG#C233505onsemi · SOIC-14 | onsemi | SOIC-14 | 35 | ₹76.50 · 35 in stock | View |
 | CD4071BDRG#C51292180HANSCHIP semiconductor · SOP-14 | HANSCHIP semiconductor | SOP-14 | 2,355 | ₹10.07 · 2,355 in stock | View |
