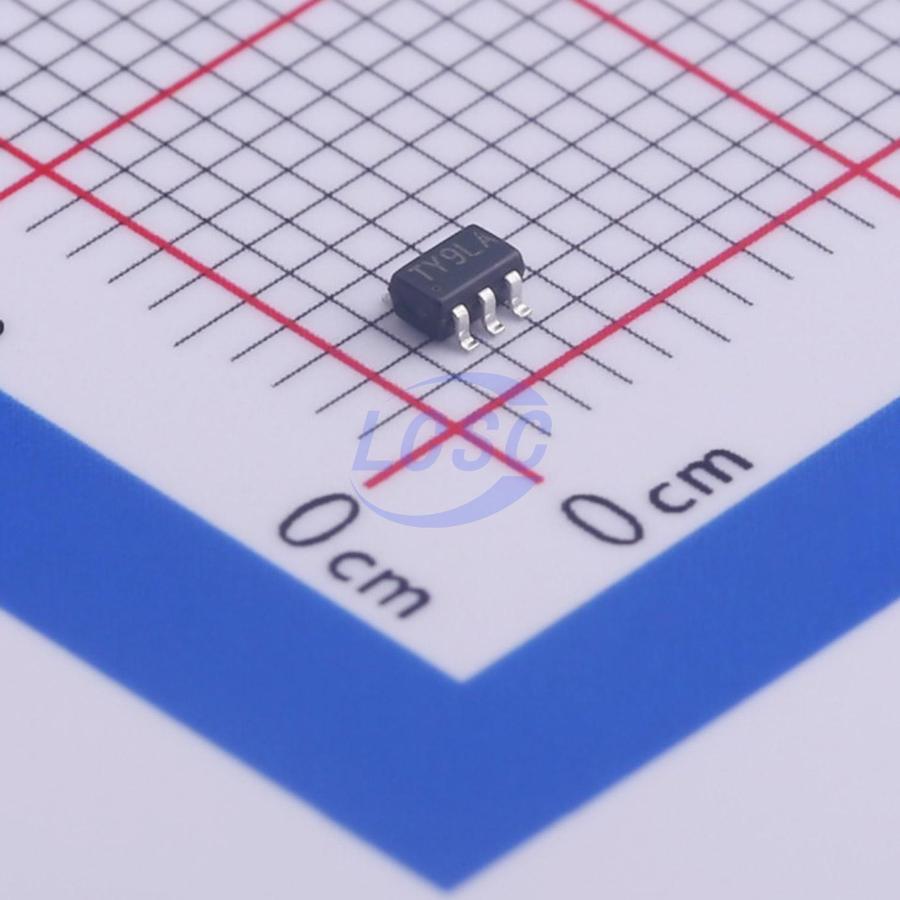

DIODES

74LVC1G97DW-7

Schmitt trigger 1.65V~5.5V 32mA 4uA 32mA 1 SOT-363 Gates and Inverters - Multi-Function, Configurable RoHS

SOT-363ROHS3 CompliantActive

CONFIGURABLE MULTIPLE-FUNCTION GATE

Manufacturer: DIODES
Manufacturer part #: 74LVC1G97DW-7
Store part #: C460532
Package / case: SOT-363
Category: Gates and Inverters - Multi-Function, Configurable
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,910 in stock

#C460532

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹25.10	₹125.50
50+	₹19.78	₹989.00
150+	₹17.50	₹2,625.00
500+	₹14.65	₹7,325.00
3,000+	₹12.76	₹38,280.00
6,000+	₹12.00	₹72,000.00

Quantity (min 5, multiples of 5)

5 × ₹25.10

₹125.50

excl. GST

₹148.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G97DW-7

₹125.50 for 5 + GST

Specifications

output type: Push-pull
Logic Family: 74LVC Series
Input type: Schmitt trigger
Propagation Delay: 5.1ns@5V,50pF
Voltage - Supply: 1.65V~5.5V
Operating Temperature: -40℃~+125℃
Output Logic Level - Low: 300mV;400mV;450mV;550mV
Current - Output Low(IOL): 32mA
Output Logic Level - High: 1.2V;1.9V;2.3V;2.4V;3.8V
Quiescent Current(Iq): 4uA
Current - Output High(IOH): 32mA
Features: Overvoltage-tolerant input;Local shutdown mode
Number of Gates: 1

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.015 g

Overview

The 74LVC1G97 is a single three- input positive configurable multiple- function gate with a standard push- pull output. The output state is determined by eight patterns of three- bit input. The user can choose the logic functions MUX, AND, OR, NAND, NOR, inverter or non- inverting buffer. All inputs can be connected to ground or VCC as required. The device is designed for operation with a power supply range of 1.65V to 5.5V. The inputs are tolerant to 5.5V allowing this device to be used in a mixed voltage environment. The device is fully specified for partial power- down applications using IOFF. The IOFF circuitry disables the output to prevent damaging current backflow when the device is powered down. The user is reminded that the device can simulate several types of logic gates but may respond differently due to the Schmitt action at the inputs.

Applications

Voltage level shifting
General- purpose logics
Power- down signal isolation
Wide array of products such as:
PCs, networking, notebooks, netbooks, PDAs
Computer peripherals, hard drives, CD/DVD ROM
TVs, DVDs, DVRs, set- top boxes
Cell phones, personal navigation/GPS
MP3 players, cameras, video recorders

Key features

Wide Supply Voltage Range from 1.65V to 5.5V
±24mA Output Drive at 3.3V
CMOS Low Power Consumption
IOFF Supports Partial Power- Down Mode Operation
Inputs Accept up to 5.5V
ESD Protection Exceeds JESD 22
200V Machine Model (A115- A)
2000V Human Body Model (A114- A)
Latchup Exceeds 100mA per JESD 78, Class II
Range of Package Options
SOT26, SOT363, X2- DFN1410- 6, and X2- DFN1010- 6: Available in "Green" Molding Compound (no Br, Sb)
Totally Lead- Free & Fully RoHS Compliant
Halogen and Antimony Free. "Green" Device
