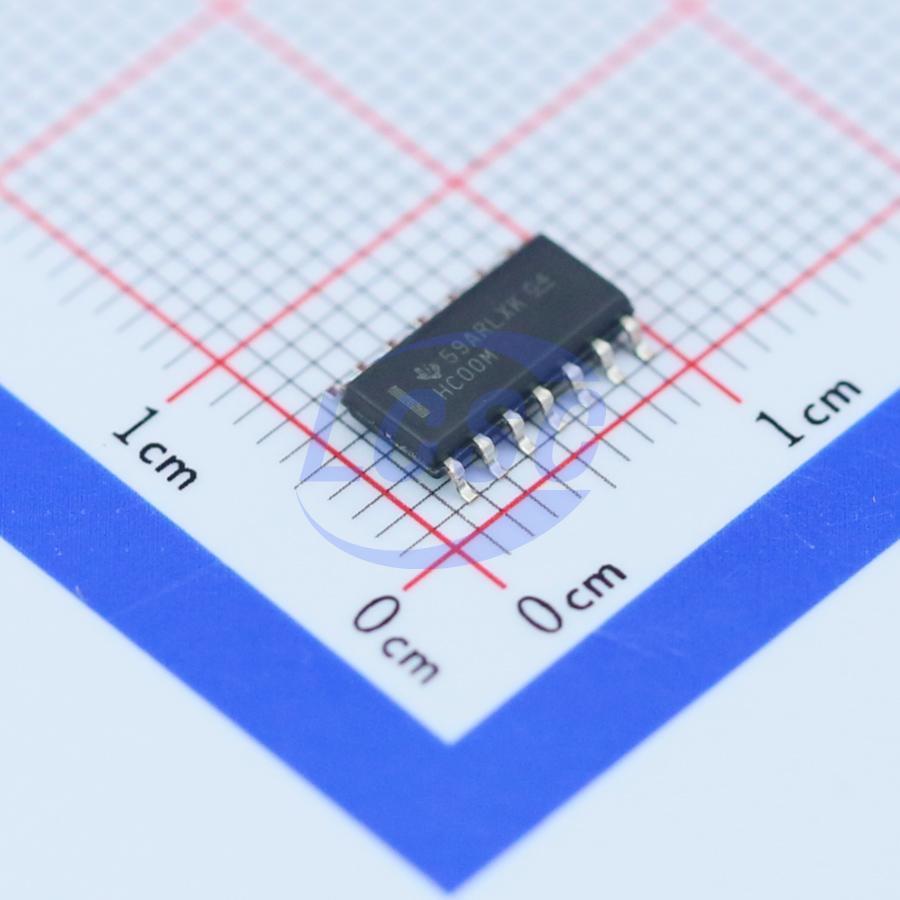

CD74HC00M96
2uA 2V~6V 27ns@4.5V,50pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS CompliantActive
High-Speed CMOS Logic Quad 2-Input NAND Gate
- Manufacturer
- TI
- Manufacturer part #
- CD74HC00M96
- Store part #
- C107294
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,310 in stock
#C107294
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.73 | ₹183.65 |
| 50+ | ₹29.47 | ₹1,473.50 |
| 150+ | ₹25.92 | ₹3,888.00 |
| 500+ | ₹22.76 | ₹11,380.00 |
| 2,500+ | ₹21.89 | ₹54,725.00 |
| 5,000+ | ₹21.36 | ₹1,06,800.00 |
5 × ₹36.73
₹183.65
excl. GST
₹216.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD74HC00M96
₹183.65 for 5 + GST
Specifications
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Logic Family
- 74HC Series
- Operating Temperature
- -55℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 100mV;400mV
- Propagation Delay
- 27ns@4.5V,50pF
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.16 g
Overview
The CD54HC00, CD74HC00, CD54HCT00, and CD74HCT00 logic gates utilize silicon gate CMOS technology to achieve operating speeds similar to LSTTL gates with the low power consumption of standard CMOS integrated circuits. All devices have the ability to drive 10 LSTTL loads. The 74HCT logic family is functionally pin compatible with the standard 74LS logic family.
Key features
- Buffered Inputs
- Typical Propagation Delay: 7ns at VCC = 5V, cL = 15pF, TA = 25℃
- Fanout (Over Temperature Range)
- Standard Outputs: 10 LSTTL Loads
- Bus Driver Outputs: 15 LSTTL Loads
- Wide Operating Temperature Range: -55℃ to 125℃
- Balanced Propagation Delay and Transition Times
- Significant Power Reduction Compared to LSTTL Logic ICs
- Alternate Source is Philips/Signetics
- HC Types
- 2V to 6V Operation
- High Noise Immunity: NL = 30%, NH = 30% of VCC at VCC = 5V
- HCT Types
- 4.5V to 5.5V Operation
- Direct LSTTL Input Logic Compatibility, VL = 0.8V (Max), VH = 2V (Min)
- CMOS Input Compatibility, I ≤ 1μA at VO L, VO H
