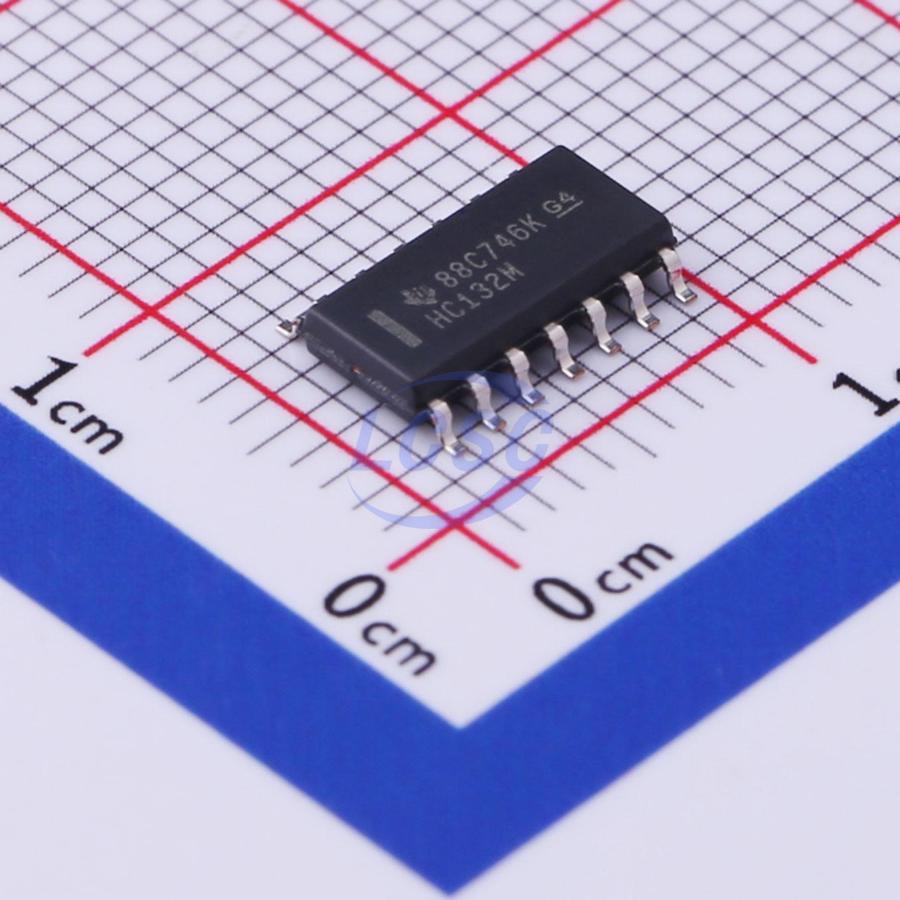

CD74HC132M96

The ’HC132 and ’HCT132 each contain four 2-input NAND Schmitt Triggers in one package. This logic device utilizes silicon gate CMOS technology to achieve operating speeds similar to LSTTL gates with the low power consumption of standard CMOS integrated circuits. All devices have the ability to drive 10 LSTTL loads. The HCT logic family is functionally pin compatible with the standard LS logic family.

Key features

• Unlimited Input Rise and Fall Times
• Exceptionally High Noise Immunity
• Typical Propagation Delay: 10ns at Vcc = 5V, Cl = 15pF, TA = 25℃
• Fanout (Over Temperature Range) - Standard Outputs: 10 LSTTL Loads - Bus Driver Outputs: 15 LSTTL Loads
• Wide Operating Temperature Range: -55℃ to 125℃
• Balanced Propagation Delay and Transition Times
• Significant Power Reduction Compared to LSTTL Logic ICs
• HC Types - 2V to 6V Operation - High Noise Immunity: N(IL) = 37%, N(IH) = 51% of Vcc at Vcc = 5V
• HCT Types - 4.5V to 5.5V Operation - Direct LSTTL Input Logic Compatibility, V(IL) = 0.8V (Max), V(IH) = 2V (Min) - CMOS Input Compatibility, I ≤ 1μA at VoL, VoH
