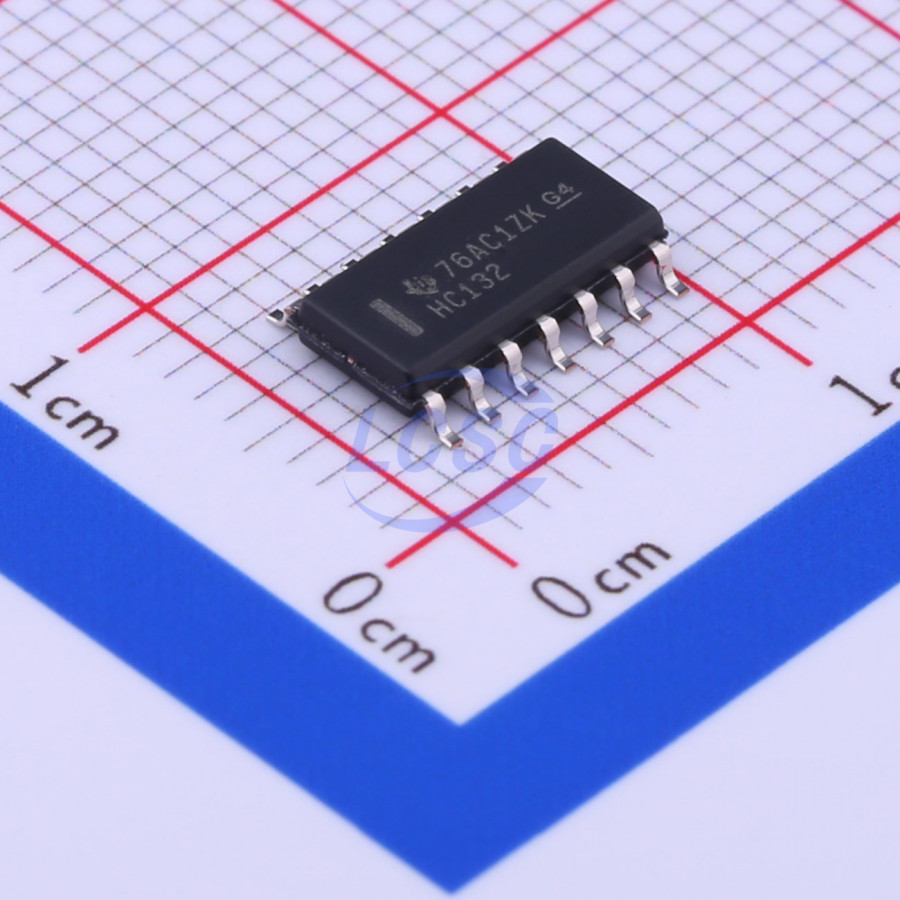

SN74HC132DR

The SNx4HC132 device functions as a NAND gate, but because of the Schmitt action, it has different input threshold levels for positive and negative going signals. The SNx4HC132 devices perform the Boolean function Y = A(overline)·B(overline) or Y = A(overline) + B(overline) in positive logic. These circuits are temperature compensated and can be triggered from the slowest of input ramps and still give clean jitter-free output signals. The SNx4HC132 is a quadruple 2-input positive-NAND gate with low drive that produces slow rise and fall times. This reduces ringing on the output signal. Each circuit functions as a NAND gate, but because of the Schmitt action, it has different input threshold levels for positive- and negative-going signals. These circuits are temperature compensated and can be triggered from the slowest of input ramps and still give clean, jitter-free output signals.

Applications

• Electronic Points-of-Sale
• Telecom Infrastructure
• Network Switches
• Tests and Measurements

Key features

• Wide Operating Voltage Range of 2 V to 6 V
• Outputs Can Drive up to 10 LSTTL Loads
• Low Power Consumption, 20 μA Maximum ICC
• Typical tpd = 14 ns
• ±4 mA Output Drive at 5 V
• Low Input Current of 1 μA Maximum
• Operation from Very Slow Input Transitions
• Temperature-Compensated Threshold Levels
• High Noise Immunity
• Same Pinouts as SN74HC00
