TIDatasheet (PDF)

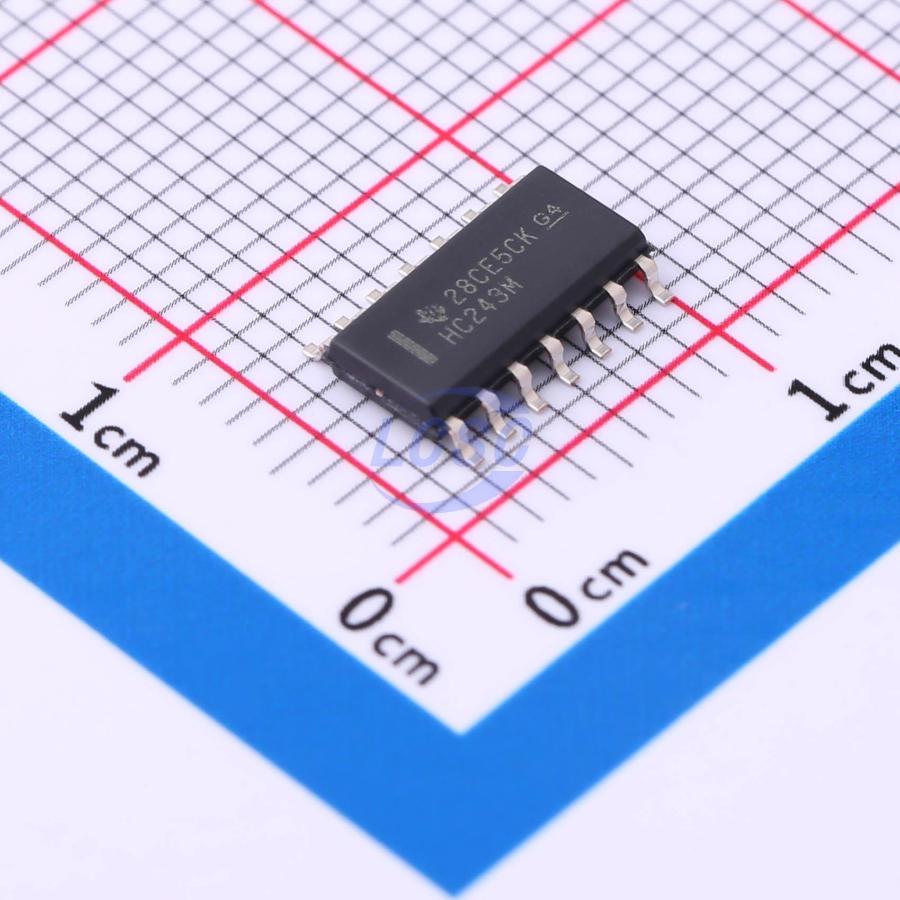

CD74HC243M96
Transceiver 1 Element 4 Bit per Element Tri-State Output SOIC-14
SOIC-14ROHS3 CompliantActive
High-speed CMOS logic quad bus transceiver with three-state outputs
- Manufacturer
- TI
- Manufacturer part #
- CD74HC243M96
- Store part #
- C2863560
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,615 in stock
#C2863560
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.19 | ₹59.19 |
| 10+ | ₹50.31 | ₹503.10 |
| 30+ | ₹44.02 | ₹1,320.60 |
| 100+ | ₹38.82 | ₹3,882.00 |
| 500+ | ₹37.30 | ₹18,650.00 |
| 1,000+ | ₹36.21 | ₹36,210.00 |
1 × ₹59.19
₹59.19
excl. GST
₹69.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD74HC243M96
₹59.19 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 4
- Channel Type
- Bidirectional
- Operating Temperature
- -55℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 160uA
- Propagation Delay
- 7ns@5V,15pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
Key features
- Propagation delay typical value (A to B, B to A): 7ns at V_CC = 5V, C_L = 15pF, T_A = 25℃
- Tri-state output buffer input fan-out (over temperature range)
- Wide operating temperature range: -55℃ to 125℃
- Balanced propagation delay and transition time
- Significantly reduced power consumption compared to LSTTL logic ICs
- HC type: 2V to 6V operating voltage
- HC type: High noise immunity: N_1L = 30%, N_IH = 30% of V_CC at V_CC = 5V
- HCT type: 4.5V to 5.5V operating voltage
- HCT type: Direct LSTTL input logic compatibility, V_IL = 0.8V (max), V_IH = 2V (min)
- HCT type: CMOS input compatibility, |I_l| ≤ 1μA at V_OL, V_OH
