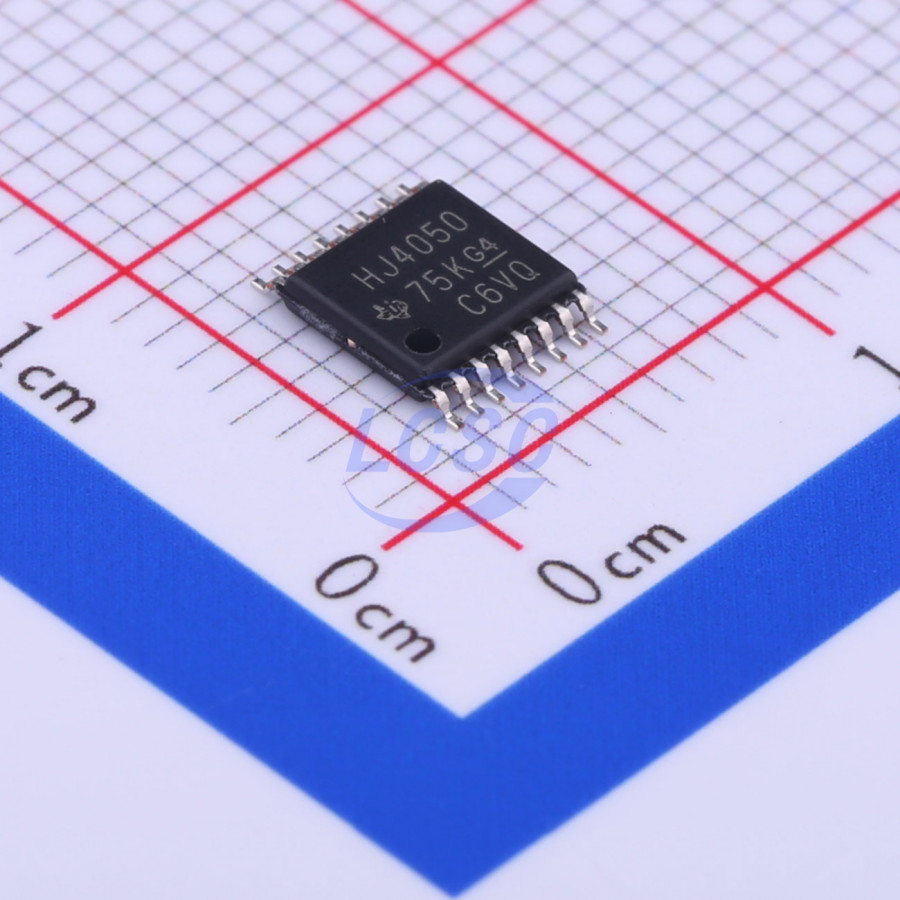

CD74HC4050PWR

The ’HC4049 and ’HC4050 are fabricated with high-speed silicon gate technology. They have a modified input protection structure that enables these parts to be used as logic level translators which convert high-level logic to a low-level logic while operating off the low-level logic supply. For example, 15-V input pulse levels can be down-converted to 0-V to 5-V logic levels. The modified input protection structure protects the input from negative electrostatic discharge. These parts also can be used as simple buffers or inverters without level translation. The ’HC4049 and ’HC4050 are enhanced versions of equivalent CMOS types.

Applications

• High-to-low logic level translation
• Simple signal buffer
• Signal inverter

Key features

• Typical Propagation Delay: 6ns at Vcc = 5V, CL = 15pF, TA = 25℃
• High-to-Low Voltage Level Converter for up to V₁ = 16V
• Fanout (Over Temperature Range): Standard Outputs - 10 LSTTL Loads; Bus Driver Outputs - 15 LSTTL Loads
• Wide Operating Temperature Range: -55℃ to 125℃
• Balanced Propagation Delay and Transition Times
• Significant Power Reduction Compared to LSTTL Logic ICs
• HC Types - 2V to 6V Operation - High Noise Immunity: Nₗₗ = 30%, Nₕₕ = 30% of Vcc at Vcc = 5V
