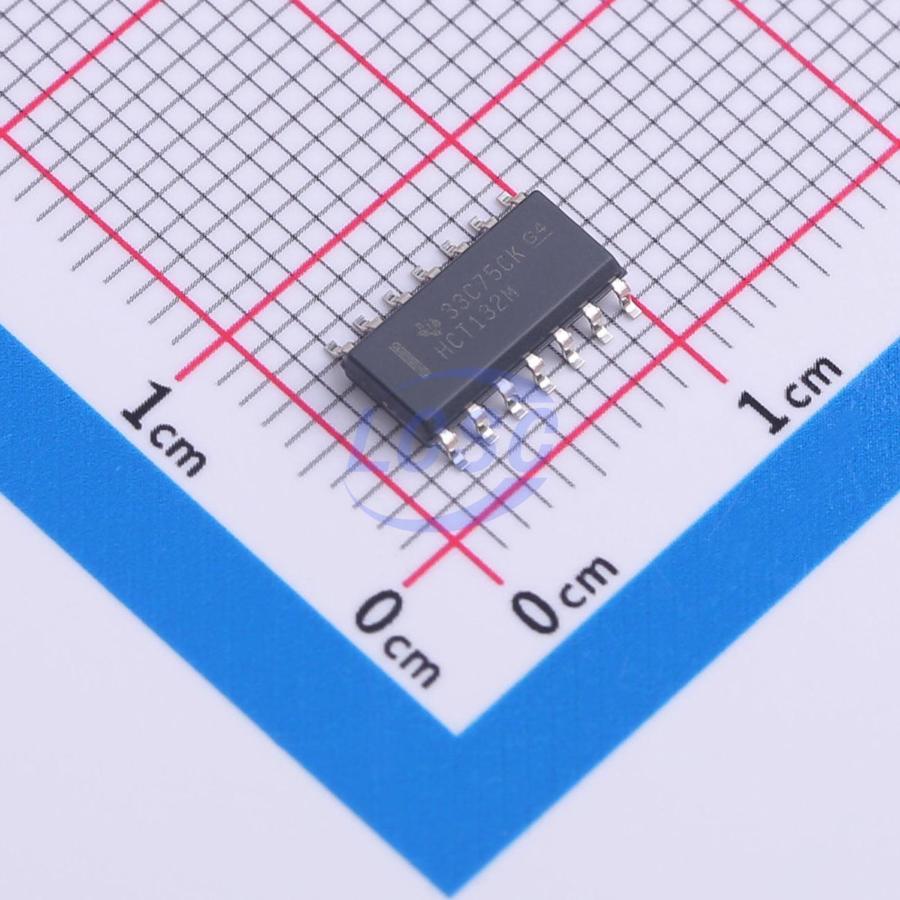

CD74HCT132M96
4.5V~5.5V 33ns@4.5V,50pF 2uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Quadruple 2-Input NAND Gates with TTL-Compatible Schmitt-Trigger Inputs
- Manufacturer
- TI
- Manufacturer part #
- CD74HCT132M96
- Store part #
- C2870547
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,329 in stock
#C2870547
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.57 | ₹53.57 |
| 10+ | ₹41.90 | ₹419.00 |
| 30+ | ₹36.94 | ₹1,108.20 |
| 100+ | ₹30.67 | ₹3,067.00 |
| 500+ | ₹27.86 | ₹13,930.00 |
| 1,000+ | ₹26.14 | ₹26,140.00 |
1 × ₹53.57
₹53.57
excl. GST
₹63.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD74HCT132M96
₹53.57 for 1 + GST
Specifications
- Input Type
- TTL-compatible CMOS;Schmitt trigger
- output type
- Push-pull
- Logic Family
- 74HCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 400mV
- Propagation Delay
- 33ns@4.5V,50pF
- Input Logic Level - Low
- 500mV~600mV
- Operating Temperature
- -55℃~+125℃
- Input Logic Level - High
- 1.9V~2.1V
- Output Logic Level - High
- 3.7V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
This device contains four independent 2-input NAND gates. Each gate performs the Boolean function Y(overline)=A•B in positive logic.
Applications
- Alarm / tamper detect circuit S-R latch
Key features
- LSTTL input logic compatible
- VIL(max)=0.8 V, VIH(min)=2 V
- CMOS input logic compatible
- lI ≤ 1 μA at VOL, VOH
- Buffered inputs
- 4.5 V to 5.5 V operation
- Wide operating temperature range: -55℃ to +125℃
- Supports fanout up to 10 LSTTL loads
- Significant power reduction compared to LSTTL logic ICs
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HCT132D,653#C5963Nexperia · SOIC-14 | Nexperia | SOIC-14 | 3 | ₹43.37 · 3 in stock | View |
 | CD74HCT00M96#C6552TI · SOIC-14 | TI | SOIC-14 | 6 | ₹122.73 · 6 in stock | View |
 | 74HCT00S14-13#C842441DIODES · SO-14 | DIODES | SO-14 | 87 | ₹28.43 · 87 in stock | View |
 | SN74HCT00D#C354415TI · SOIC-14 | TI | SOIC-14 | 1 | ₹93.71 · 1 in stock | View |
 | SN74HCT00DR#C6764TI · SOIC-14 | TI | SOIC-14 | 2,816 | ₹52.80 · 2,816 in stock | View |
