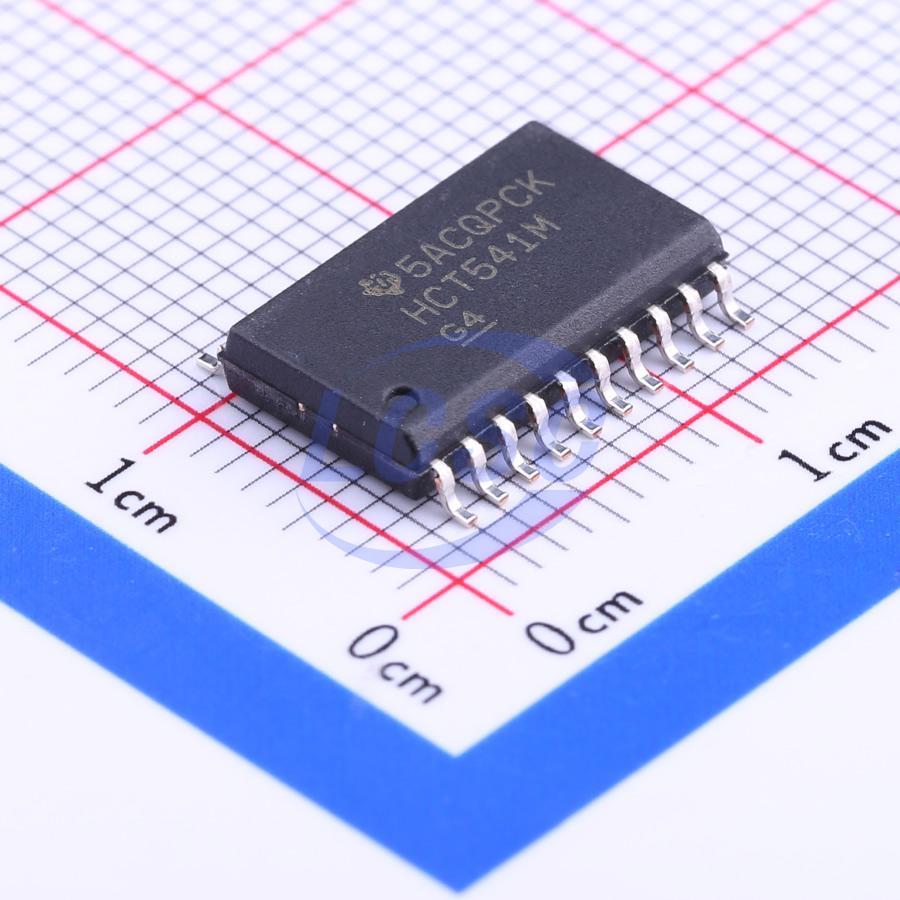

CD74HCT541M96

The 'HC540 and CD74HCT540 are Inverting Octal Buffers and Line Drivers with Three- State Outputs and the capability to drive 15 LSTTL loads. The 'HC541 and 'HCT541 are Non- Inverting Octal Buffers and Line Drivers with Three- State Outputs that can drive 15 LSTTL loads. The Output Enables (OE1) and (OE2) control the Three- State Outputs. If either OE1 or OE2 is HIGH the outputs will be in the high impedance state. For data output OE1 and OE2 both must be LOW.

Applications

• Bus signal driving
• Logic signal buffering

Key features

• 'HC540, CD74HCT540: Inverting; 'HC541, 'HCT541: Non-Inverting
• Buffered Inputs
• Three-State Outputs
• Bus Line Driving Capability
• Typical Propagation Delay = 9ns at VCC = 5V, CL = 15pF, TA = 25℃
• Fanout (Over Temperature Range):
• Standard Outputs: 10 LSTTL Loads
• Bus Driver Outputs: 15 LSTTL Loads
• Wide Operating Temperature Range: -55℃ to 125℃
• Balanced Propagation Delay and Transition Times
• Significant Power Reduction Compared to LSTTL Logic ICs
• HC Types:
• 2V to 6V Operation
• High Noise Immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5V
• HCT Types:
• 4.5V to 5.5V Operation
• Direct LSTTL Input Logic Compatibility, VIL = 0.8V (Max), VIH = 2V (Min)
• CMOS Input Compatibility, II ≤ 1μA at VOL, VOH
