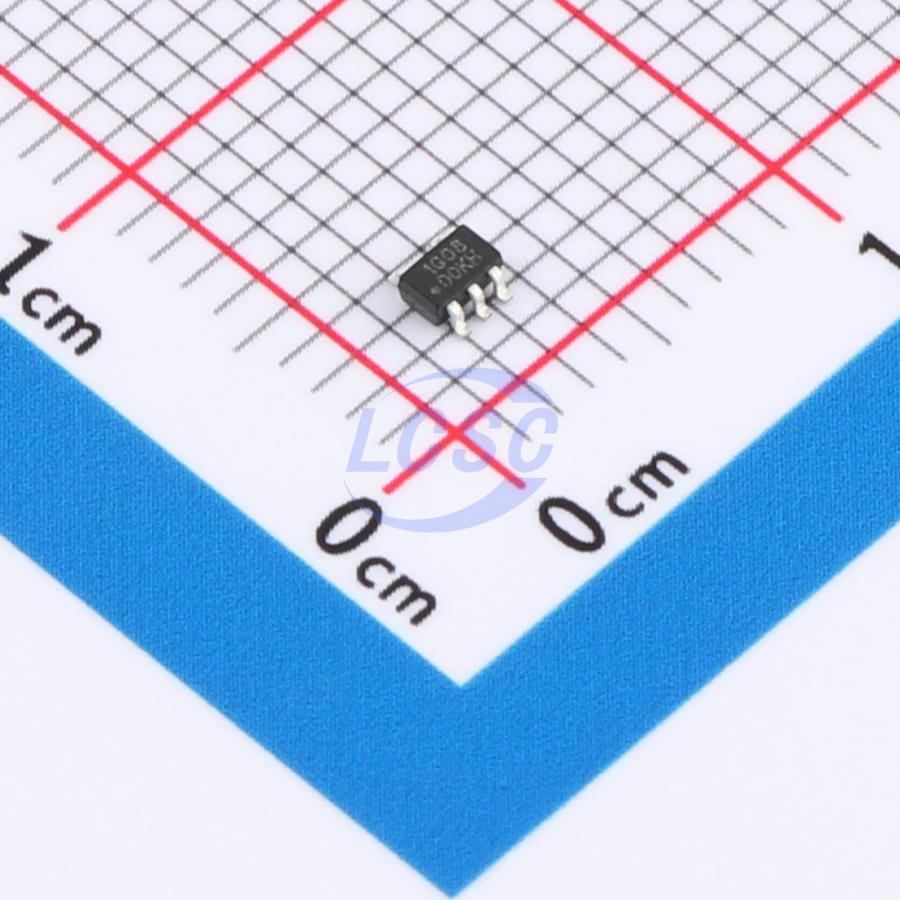

JSCJ

CJ74AHC1G08R5N

StandardCMOS 2V~5.5V 7.9ns@5V,50pF 1uA SOT-353 Gates and Inverters

SOT-353RoHSActive

Manufacturer: JSCJ
Manufacturer part #: CJ74AHC1G08R5N
Store part #: C52145685
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,745 in stock

#C52145685

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹10.68	₹53.40
50+	₹8.40	₹420.00
150+	₹7.28	₹1,092.00
500+	₹6.42	₹3,210.00
3,000+	₹5.74	₹17,220.00
6,000+	₹5.40	₹32,400.00

Quantity (min 5, multiples of 5)

5 × ₹10.68

₹53.40

excl. GST

₹63.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

CJ74AHC1G08R5N

₹53.40 for 5 + GST

Specifications

Input Type: StandardCMOS
Logic Family: 74AHC
Voltage - Supply: 2V~5.5V
Output Logic Level - Low: 360mV
Propagation Delay: 7.9ns@5V,50pF
Input Logic Level - High: 1.5V;2.1V;3.85V
Input Logic Level - Low: 500mV;900mV;1.65V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 3.94V
Quiescent Current(Iq): 1uA
Current - Output High(IOH): 8mA
Number of Channels: 1;2
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.225 g

Overview

CJ74AHC1G08 and CJ74AHCT1G08 are high-speed silicon-gate CMOS devices offering 2-input AND gate functionality. AHC devices feature CMOS input switching levels with a supply voltage range of 2V to 5.5V. AHCT devices feature TTL input switching levels with a supply voltage range of 4.5V to 5.5V.
