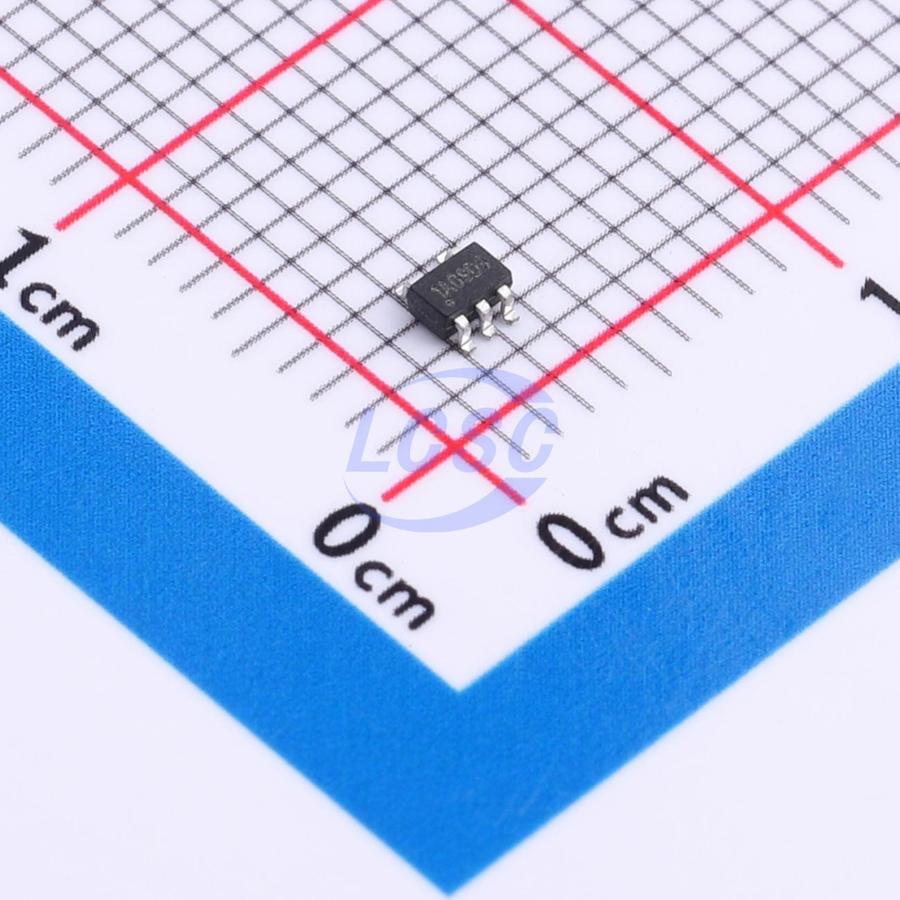

CJ74AHC1G09R5N
2V~5.5V 7.5ns@5.5V,50pF 1uA SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ74AHC1G09R5N
- Store part #
- C52145687
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,935 in stock
#C52145687
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.76 | ₹58.80 |
| 50+ | ₹9.21 | ₹460.50 |
| 150+ | ₹7.94 | ₹1,191.00 |
| 500+ | ₹6.99 | ₹3,495.00 |
| 3,000+ | ₹6.22 | ₹18,660.00 |
| 6,000+ | ₹5.83 | ₹34,980.00 |
5 × ₹11.76
₹58.80
excl. GST
₹69.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ74AHC1G09R5N
₹58.80 for 5 + GST
Specifications
- output type
- Open-drain
- Logic Family
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 360mV
- Propagation Delay
- 7.5ns@5.5V,50pF
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1;2
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.225 g
Overview
CJ74AHC1G09 is a high-speed silicon-gate CMOS device offering a 2-input AND gate function with open-drain output. The open-drain output can be connected with other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. For digital operation, the device must be connected to a pull-up resistor to establish a logic high level.
Applications
- Combined power good signal
- Enable digital signal
Key features
- Wide supply voltage range: 2V ~ 5.5V
- Low power consumption
- Operating temperature range: -40℃ ~ +125℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ74AHC1G08R5N#C52145685JSCJ · SOT-353 | JSCJ | SOT-353 | 2,745 | ₹10.68 · 2,745 in stock | View |
