JSCJ

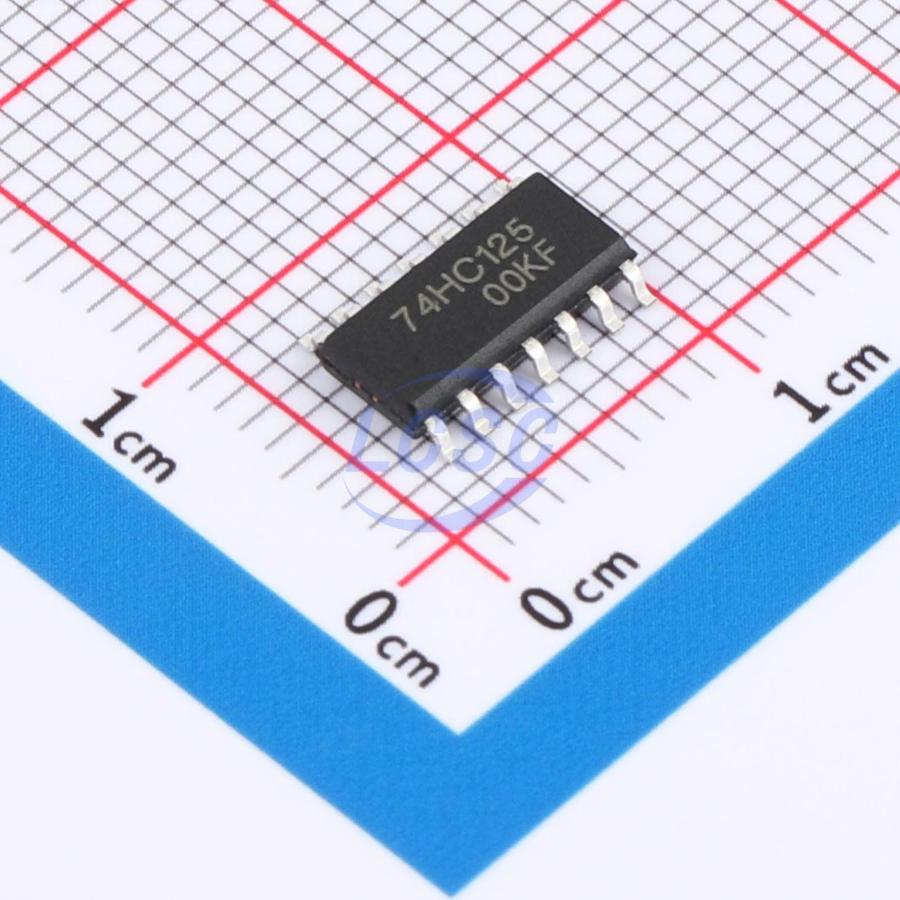

CJ74HC125ADN

StandardCMOS 2V~6V 1 4 20ns@4.5V SOP-14 Buffers, Drivers, Receivers, Transceivers

SOP-14RoHSActive

Manufacturer: JSCJ
Manufacturer part #: CJ74HC125ADN
Store part #: C52145490
Package / case: SOP-14
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,715 in stock

#C52145490

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹20.43	₹102.15
50+	₹16.15	₹807.50
150+	₹14.33	₹2,149.50
500+	₹12.05	₹6,025.00
2,500+	₹11.03	₹27,575.00
4,000+	₹10.43	₹41,720.00

Quantity (min 5, multiples of 5)

5 × ₹20.43

₹102.15

excl. GST

₹120.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

CJ74HC125ADN

₹102.15 for 5 + GST

Specifications

Function: Output enable
Input type: StandardCMOS
Current - Output High(IOH): 6mA
Series: 74HC
Voltage - Supply: 2V~6V
Output Type: Tri-State
Current - Output Low(IOL): 6mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Operating Temperature: -40℃~+125℃
Number of Elements: 4
Quiescent Supply Current: 8uA
Propagation Delay: 20ns@4.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.33 g

Overview

CJ74HC/HCT125 is a quad buffer/line driver with 3-state outputs controlled by output enable inputs (n/OE). When n/OE is HIGH, the outputs are in a high-impedance off-state. The inputs include clamping diodes, which allow the use of current-limiting resistors to interface inputs to voltages exceeding VCC.
