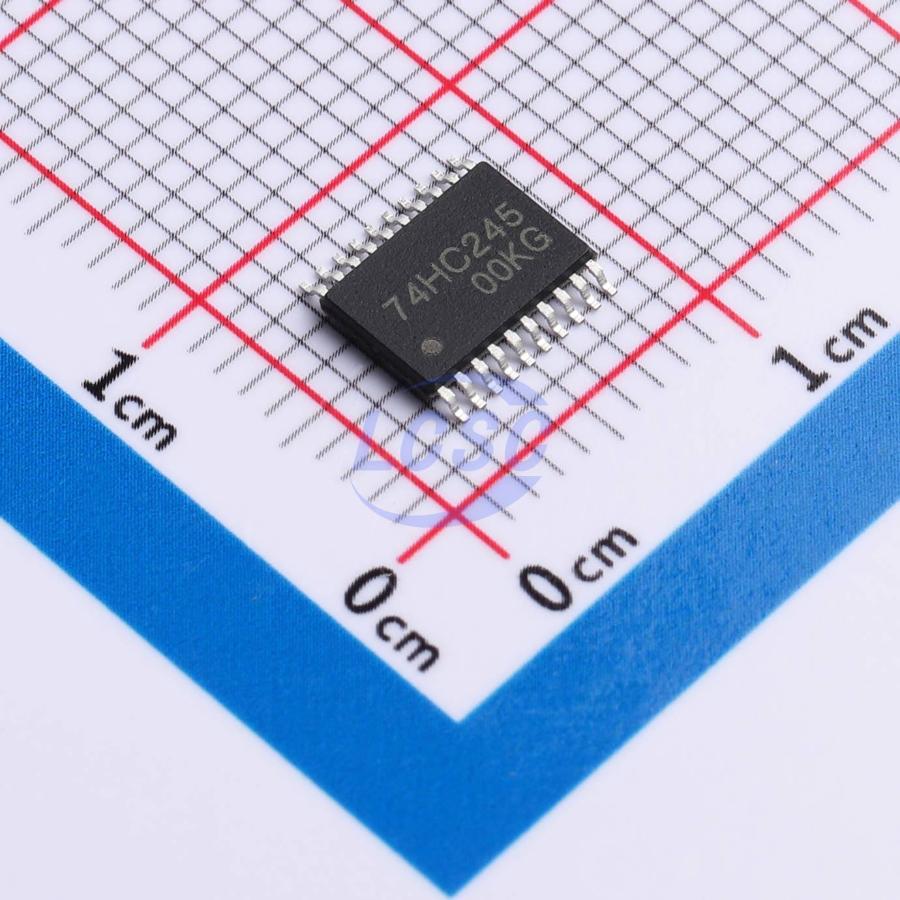

JSCJ

CJ74HC245BGN

2V~6V 8 1 9ns@4.5V,15pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers

TSSOP-20RoHSActive

Manufacturer: JSCJ
Manufacturer part #: CJ74HC245BGN
Store part #: C52145530
Package / case: TSSOP-20
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,895 in stock

#C52145530

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹29.69	₹148.45
50+	₹23.13	₹1,156.50
150+	₹20.32	₹3,048.00
500+	₹16.82	₹8,410.00
2,500+	₹15.25	₹38,125.00
4,000+	₹14.31	₹57,240.00

Quantity (min 5, multiples of 5)

5 × ₹29.69

₹148.45

excl. GST

₹175.17 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

CJ74HC245BGN

₹148.45 for 5 + GST

Specifications

Function: Output enable
Current - Output High(IOH): 7.8mA
Series: 74HC
Voltage - Supply: 2V~6V
Output Type: Tri-State
Current - Output Low(IOL): 7.8mA
Number of Bits per Element: 8
Channel Type: Bidirectional
Number of Elements: 1
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 8uA
Propagation Delay: 9ns@4.5V,15pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.255 g

Overview

CJ74HC/HCT245 is an 8-bit transceiver with 3-state outputs. The device features an output enable (/OE) pin and a direction control (DIR) pin. When /OE is HIGH, the outputs are placed in a high-impedance (off) state. Input clamping diodes are provided, enabling the use of current-limiting resistors to interface inputs to voltages exceeding VCC.
