JSCJDatasheet (PDF)

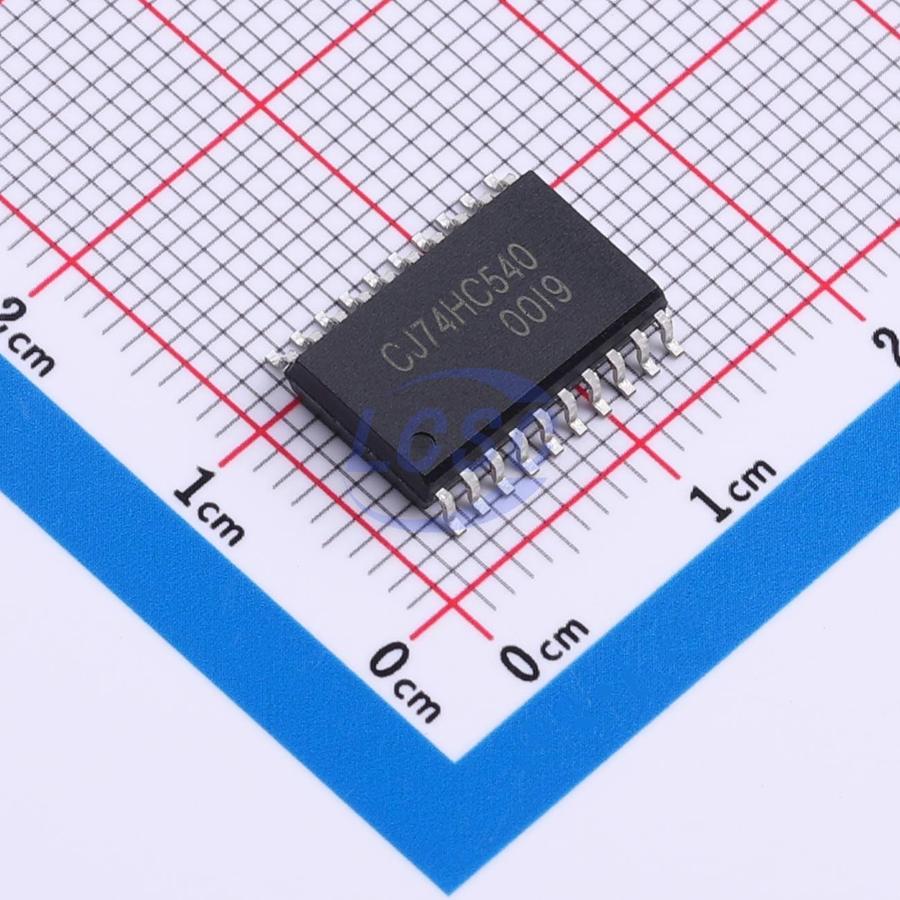

CJ74HC540AGN
StandardCMOS 2V~6V 8 1 20ns@4.5V,50pF SOP-20 Buffers, Drivers, Receivers, Transceivers
SOP-20RoHSActive
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ74HC540AGN
- Store part #
- C52145551
- Package / case
- SOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,293 in stock
#C52145551
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.57 | ₹67.57 |
| 10+ | ₹53.45 | ₹534.50 |
| 30+ | ₹47.36 | ₹1,420.80 |
| 100+ | ₹39.77 | ₹3,977.00 |
| 500+ | ₹36.50 | ₹18,250.00 |
| 1,000+ | ₹34.54 | ₹34,540.00 |
1 × ₹67.57
₹67.57
excl. GST
₹79.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
CJ74HC540AGN
₹67.57 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Input type
- StandardCMOS
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 8
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 8uA
- Propagation Delay
- 20ns@4.5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.785 g
Overview
CJ74HC/HCT540 is an 8-bit inverting buffer/line driver with 3-state outputs. The device features two output enable pins (OE1 and OE2). When OEn is HIGH, the outputs are forced into a high-impedance (off) state. Input clamping diodes are provided, enabling the use of current-limiting resistors to interface inputs to voltages exceeding VCC.
Applications
- Servers
- Personal computers and laptops
- Network switches
- Wearable health and fitness devices
- Telecommunications infrastructure
Key features
- Input level: CMOS for CJ74HC540; TTL for CJ74HCT540
- Inverting outputs
- Operating temperature range: -40°C ~ +125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ74HC541AGN#C52145559JSCJ · SOP-20 | JSCJ | SOP-20 | On request | Price on request | Quote |
