JSCJ

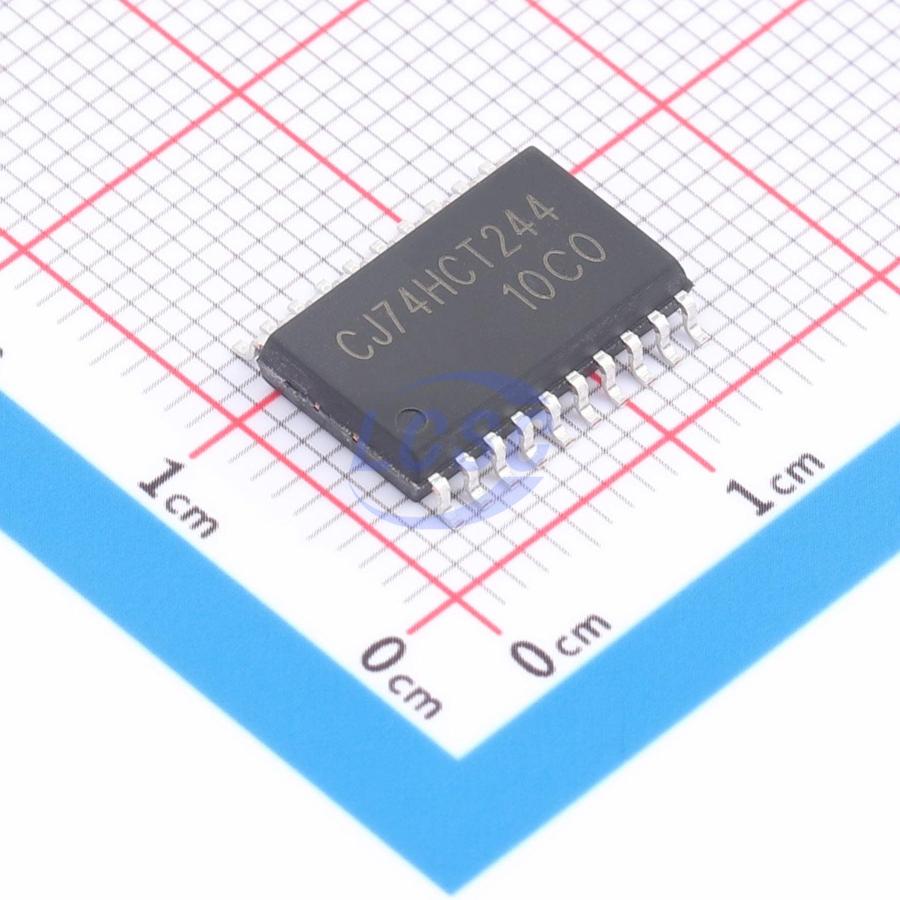

CJ74HCT244AGN

TTL-compatible CMOS 4.5V~5.5V 8 1 22ns@4.5V,15pF SOP-20 Buffers, Drivers, Receivers, Transceivers

SOP-20RoHSActive

Manufacturer: JSCJ
Manufacturer part #: CJ74HCT244AGN
Store part #: C52145527
Package / case: SOP-20
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,795 in stock

#C52145527

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹36.22	₹181.10
50+	₹28.66	₹1,433.00
150+	₹25.41	₹3,811.50
500+	₹21.37	₹10,685.00
2,000+	₹19.57	₹39,140.00
4,000+	₹18.48	₹73,920.00

Quantity (min 5, multiples of 5)

5 × ₹36.22

₹181.10

excl. GST

₹213.70 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

CJ74HCT244AGN

₹181.10 for 5 + GST

Specifications

Function: Output enable
Input type: TTL-compatible CMOS
Current - Output High(IOH): 6mA
Voltage - Supply: 4.5V~5.5V
Series: 74HCT
Output Type: Tri-State
Current - Output Low(IOL): 6mA
Number of Bits per Element: 8
Channel Type: Unidirectional
Number of Elements: 1
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 160uA
Propagation Delay: 22ns@4.5V,15pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.698 g

Overview

CJ74HC/HCT244 is an 8-bit buffer/line driver with 3-state outputs. The device can be used as two 4-bit buffers or one 8-bit buffer. It features two output enable pins, each controlling four 3-state outputs. When an output enable pin is HIGH, the outputs enter a high-impedance state. The inputs include clamping diodes, allowing the input interface to be connected to voltages higher than VCC through current-limiting resistors.
