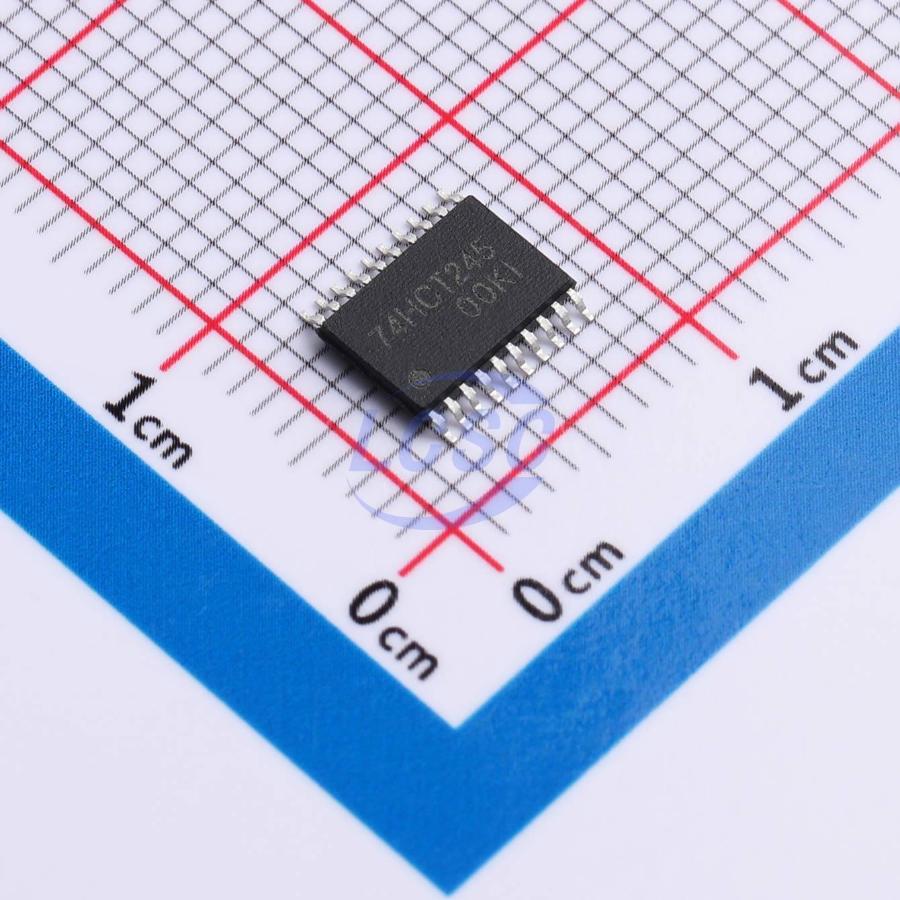

JSCJ

CJ74HCT245BGN

4.5V~5.5V 8 1 33ns@4.5V TSSOP-20 Buffers, Drivers, Receivers, Transceivers

TSSOP-20RoHSActive

Manufacturer: JSCJ
Manufacturer part #: CJ74HCT245BGN
Store part #: C52145532
Package / case: TSSOP-20
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,820 in stock

#C52145532

Stock & price checked 35 h ago

Quantity	Unit price	Pack price
5+	₹22.13	₹110.65
50+	₹17.25	₹862.50
150+	₹15.15	₹2,272.50
500+	₹12.54	₹6,270.00
2,500+	₹11.38	₹28,450.00
4,000+	₹10.68	₹42,720.00

Quantity (min 5, multiples of 5)

5 × ₹22.13

₹110.65

excl. GST

₹130.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

CJ74HCT245BGN

₹110.65 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Function: Output enable
Current - Output High(IOH): 6mA
Voltage - Supply: 4.5V~5.5V
Series: 74HCT
Output Type: Tri-State
Current - Output Low(IOL): 6mA
Number of Bits per Element: 8
Channel Type: Bidirectional
Number of Elements: 1
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 160uA
Propagation Delay: 33ns@4.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.255 g

Overview

CJ74HC/HCT245 is an 8-bit transceiver with 3-state outputs. The device features an output enable (/OE) pin and a direction control (DIR) pin. When /OE is HIGH, the outputs are placed in a high-impedance (off) state. Input clamping diodes are provided, enabling the use of current-limiting resistors to interface inputs to voltages exceeding VCC.
