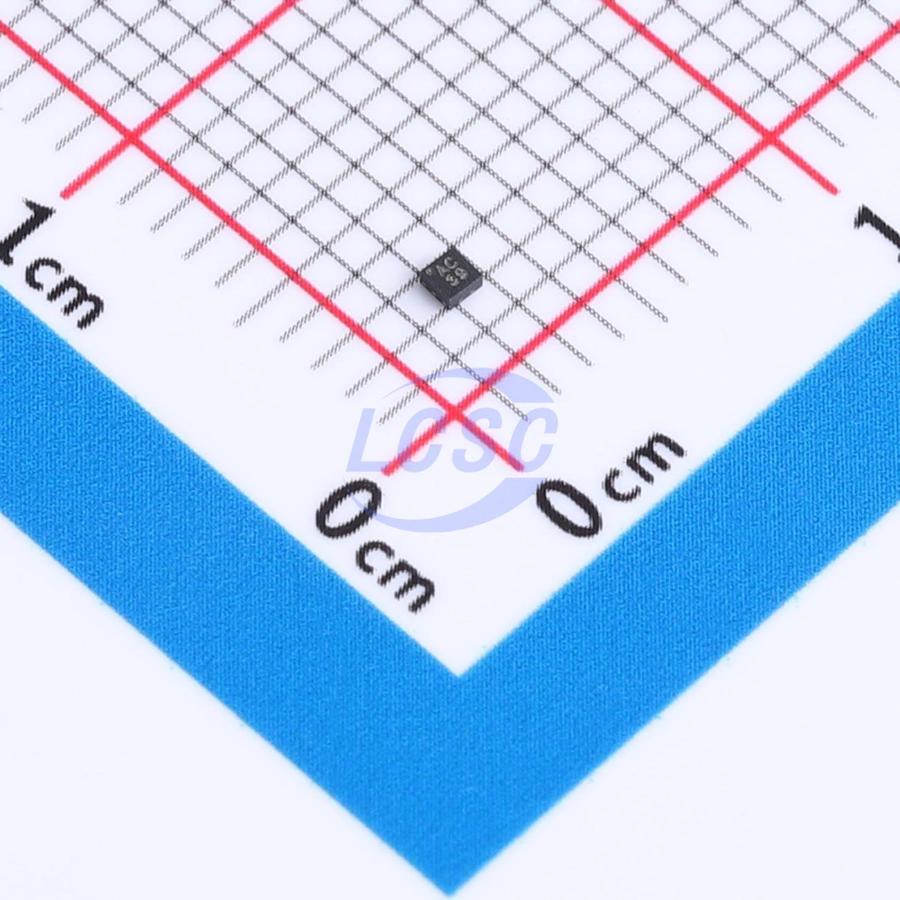

CJ74LVC1G125DKN
1.65V~5.5V 1 1 10.5ns@5.5V,50pF DFN-6L(1x1) Buffers, Drivers, Receivers, Transceivers
DFN-6L(1x1)RoHSActive
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ74LVC1G125DKN
- Store part #
- C52145621
- Package / case
- DFN-6L(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,000 in stock
#C52145621
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.18 | ₹70.90 |
| 50+ | ₹11.11 | ₹555.50 |
| 150+ | ₹9.58 | ₹1,437.00 |
| 500+ | ₹8.43 | ₹4,215.00 |
| 2,500+ | ₹7.50 | ₹18,750.00 |
| 5,000+ | ₹7.04 | ₹35,200.00 |
5 × ₹14.18
₹70.90
excl. GST
₹83.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CJ74LVC1G125DKN
₹70.90 for 5 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Function
- Output enable;Level shifting
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 10.5ns@5.5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.165 g
Overview
The CJ74LVC1G125 provides a single non-inverting buffer/line driver with 3-state output. The 3-state output is controlled by the output enable input (/OE). When the /OE pin is HIGH, the output enters a high-impedance off-state. The device inputs can be driven by 3.3V or 5V devices, enabling its use in mixed 3.3V/5V environments.
Applications
- Cable Modem Termination System
- High-Speed Data Acquisition and Generation
- Motor Control: High Voltage
- Power Line Communication Modem
- Solid State Drive: Internal or External
Key features
- Operating voltage range: 1.65V ~ 5.5V
- Output drive capability: ±24mA (Vcc=3.0V)
- CMOS low power consumption
- Operating temperature range: -40℃ ~ +125℃
