JSCJDatasheet (PDF)

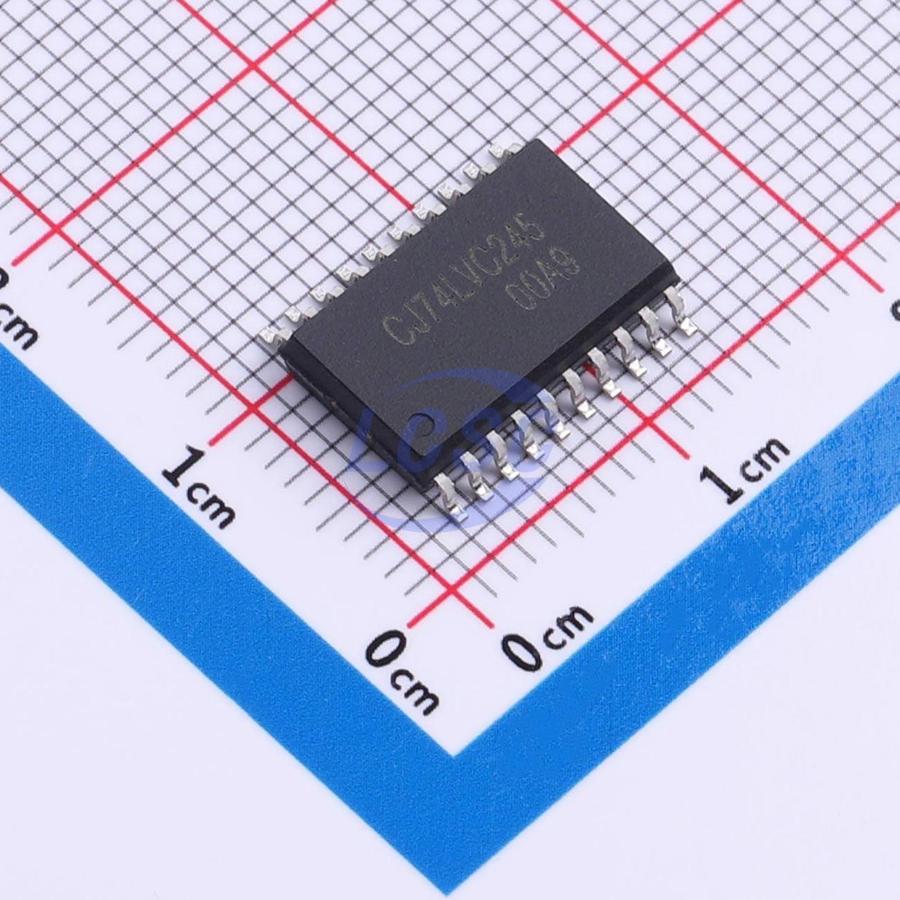

CJ74LVC245AGN
1.2V~5.5V 8 1 6.3ns@3.3V,50pF SOP-20 Buffers, Drivers, Receivers, Transceivers
SOP-20RoHSActive
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ74LVC245AGN
- Store part #
- C52145668
- Package / case
- SOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,760 in stock
#C52145668
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.58 | ₹157.90 |
| 50+ | ₹24.98 | ₹1,249.00 |
| 150+ | ₹22.15 | ₹3,322.50 |
| 500+ | ₹18.63 | ₹9,315.00 |
| 2,000+ | ₹17.05 | ₹34,100.00 |
| 4,000+ | ₹16.11 | ₹64,440.00 |
5 × ₹31.58
₹157.90
excl. GST
₹186.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
CJ74LVC245AGN
₹157.90 for 5 + GST
Specifications
- Voltage - Supply
- 1.2V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Function
- Output enable;Power-off isolation;Level shifting
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Propagation Delay
- 6.3ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.805 g
Overview
The CJ74LVC245 is an 8-bit transceiver with noninverting, 3-state bus-compatible outputs in both send and receive directions. The device features an output enable (/OE) input for easy cascading and a direction control (DIR) input for transmit/receive selection. /OE controls the outputs, effectively isolating the bus. Inputs can be driven by 3.3V or 5V devices. Voltages up to 5.5V can be applied when outputs are disabled. These features make the device suitable for mixed 3.3V and 5V applications.
Applications
- Cable modem termination systems
- Servers
- LED displays
- Network switches
- Telecom infrastructure
Key features
- I/O compatible with 5V logic levels
- Wide supply voltage range: 1.2 V ~ 5.5 V
- CMOS low power consumption
- Direct TTL-level interface
- Inputs accept voltages up to 5.5 V
- High-impedance state when V_CC = 0 V
