JSCJDatasheet (PDF)

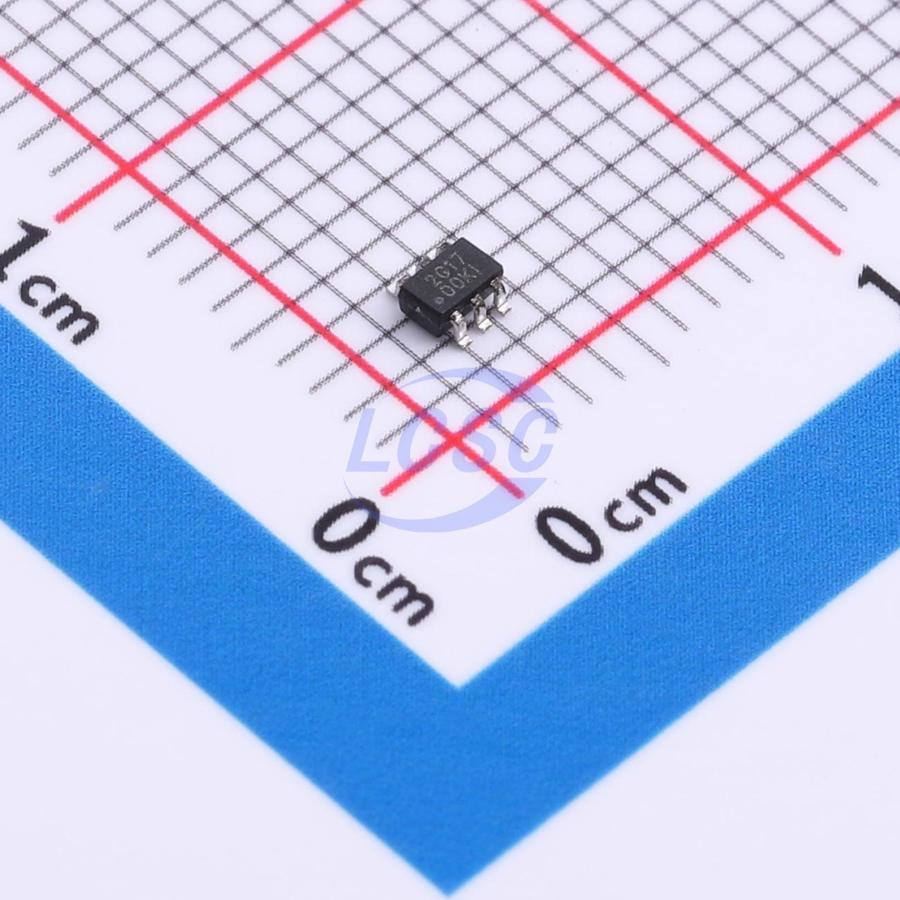

CJ74LVC2G17R6N
Schmitt trigger 1.65V~5.5V 2 1 SOT-363 Buffers, Drivers, Receivers, Transceivers
SOT-363RoHSActive
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ74LVC2G17R6N
- Store part #
- C52145645
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,860 in stock
#C52145645
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.58 | ₹62.90 |
| 50+ | ₹9.91 | ₹495.50 |
| 150+ | ₹8.57 | ₹1,285.50 |
| 500+ | ₹7.57 | ₹3,785.00 |
| 3,000+ | ₹6.76 | ₹20,280.00 |
| 6,000+ | ₹6.36 | ₹38,160.00 |
5 × ₹12.58
₹62.90
excl. GST
₹74.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ74LVC2G17R6N
₹62.90 for 5 + GST
Specifications
- Function
- Level shifting
- Current - Output High(IOH)
- 32mA
- Input type
- Schmitt trigger
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Push-pull
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 2
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 4uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
Overview
The CJ74LVC2G17 provides two non-inverting buffers with Schmitt-trigger inputs, capable of converting slowly changing input signals into clean, well-defined, bounce-free output signals. The inputs can be driven by 3.3V or 5V devices, allowing this device to be used as a level translator in mixed 3.3V and 5V environments.
Applications
- AV receiver
- Audio dock
- Blu-ray player
- MP3 player/recorder
- Personal digital assistant
Key features
- Wide supply voltage range: 1.65V to 5.5V
- 5V-tolerant inputs, compatible with 5V logic interface
- Output drive capability ±24mA (Vcc=3.0V)
- CMOS low power consumption
- Operating temperature range: -40℃ to +125℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ74LVC2G07R6N#C52145637JSCJ · SOT-363 | JSCJ | SOT-363 | 250 | ₹11.71 · 250 in stock | View |
