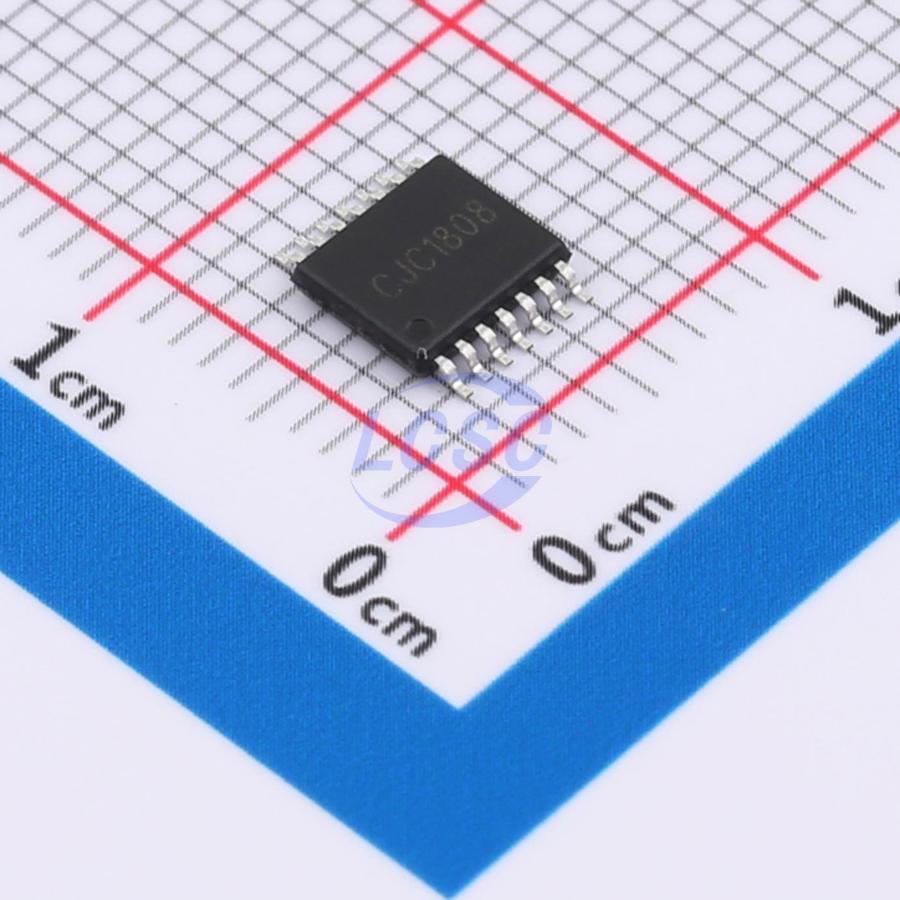

CJC1808
I2S 2.7V~5.5V TSSOP-14 Analog to Digital Converters (ADC) RoHS
TSSOP-14ROHS CompliantActive
Analog-Input 24-Bit Stereo Analog-to-Digital Converter
- Manufacturer
- ESHINE
- Manufacturer part #
- CJC1808
- Store part #
- C7431494
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,105 in stock
#C7431494
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.43 | ₹59.43 |
| 10+ | ₹47.33 | ₹473.30 |
| 30+ | ₹41.18 | ₹1,235.40 |
| 100+ | ₹35.23 | ₹3,523.00 |
| 500+ | ₹31.61 | ₹15,805.00 |
| 1,000+ | ₹29.81 | ₹29,810.00 |
1 × ₹59.43
₹59.43
excl. GST
₹70.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJC1808
₹59.43 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- I2S
- Quiescent Current (Iq)
- 15.1mA
- Voltage - Supply
- 2.7V~5.5V
- Number of Channels
- 2
- Voltage Reference
- Built-in
- Clock/Oscillator
- External
- Clock Frequency
- 24.576MHz;2.048MHz~49.152MHz
- Features
- Integrated modulator;Built-in digital filter;Power-on reset
- Resolution(Bits)
- 96kHz;24
- S/N Ratio
- 95dB
- ADC architecture
- Sigma-Delta
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.174 g
Overview
The CJC1808 device is a high-performance, low-cost, single-chip, stereo analog-to-digital converter with single-ended analog voltage input. The CJC1808 device uses a delta-sigma modulator with 64-times oversampling and includes a digital decimation filter and high-pass filter that removes the dc component of the input signal. For various applications, the CJC1808 device supports master and slave mode and two data formats in serial audio interface. Fabrication of the CJC1808 device uses a highly advanced CMOS process. The device is available in a small, 14-pin TSSOP package.
Key features
- Stereo Δ-Σ ADC
- On-chip digital anti-alias filter
- Single-ended input
- Digital high-pass filter to eliminate DC offset
- S/(N + D): -87dB@3.3V for 48kHz
- DR: 95dB@3.3V for 48kHz, 91dB@3.3V for 96kHz
- S/N: 95dB@3.3V for 48kHz, 91dB@3.3V for 96kHz
- Sampling Rate: 8kHz～96kHz
- System Clock: 256fs/384fs/512fs
- CMOS Input Level
- Master/Slave mode
- Audio Interface: Left-justified, 24-bit/I2S, 24-bit
- Power Supply: 2.7 to 5.5V
- Ta = -40~85℃
- Package: 14-pin TSSOP
