CJC5340

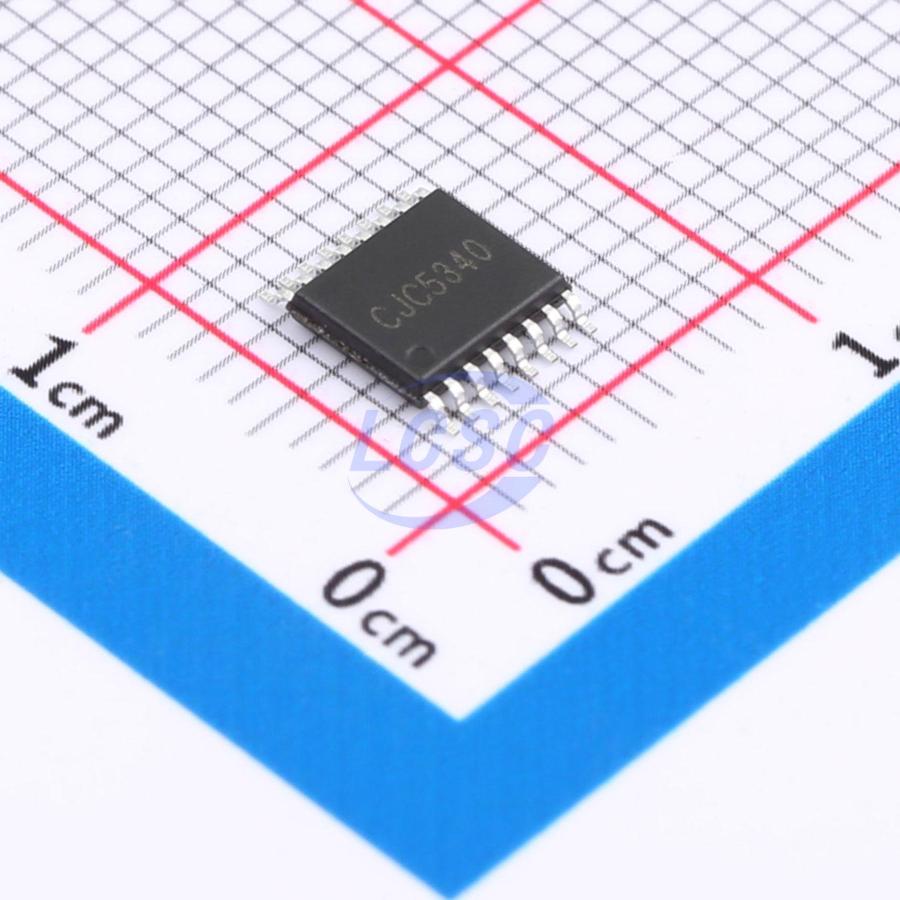

The CJC5340 is a complete analog-to-digital converter for digital audio systems. It performs sampling, analog-to-digital conversion, and anti-alias filtering, generating 24-bit values for both left and right inputs in serial format sample rates up to 200 kHz per channel. The CJC5340 uses a 5th-order, multi-bit Delta-Sigma modulator followed by digital filtering and decimation, which removes the need for an external anti-alias filter. The CJC5340 is available in a 16-pin TSSOP package for grades (-40°C to +85°C). The CJC5340 is ideal for audio systems requiring wide dynamic range, negligible distortion and low noise, such as set-top boxes, DVD-karaoke players, DVD recorders, A/V receivers, and automotive applications.

Applications

• set-top boxes
• DVD-karaoke players
• DVD recorders
• A/V receivers
• automotive applications

Key features

• Advanced Multi-bit Delta-Sigma Architecture
• 24-bit Conversion
• Supports All Audio Sample Rates Including 192 kHz
• -88 dB THD+N
• 77 mW Power Consumption
• High-Pass Filter to Remove DC Offsets
• Analog/Digital Core Supplies from 3V to 3.6V
• Supports Logic Levels from 3V to 3.6V
• Auto-detect Mode Selection in Slave Mode
• Auto-Detect MCLK Divider
