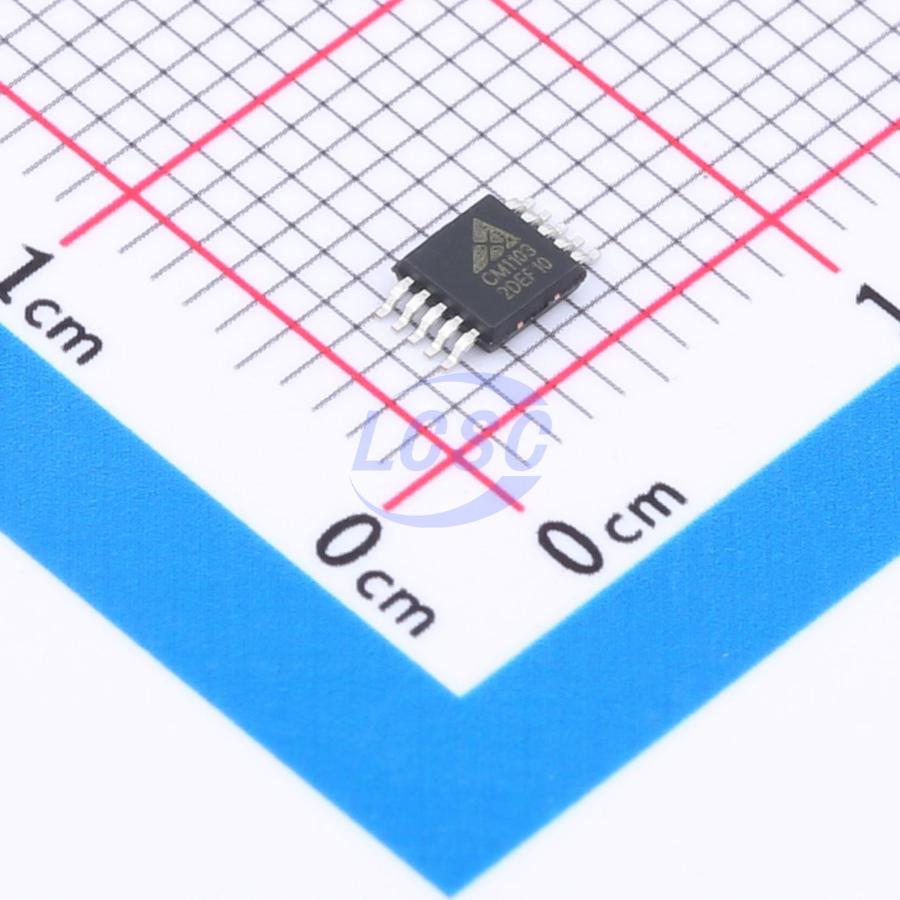

CM1103-SOPTA
16 Bit Analog to Digital Converter 4 Input Sigma-Delta MSOP-10
MSOP-10RoHSActive
Built-in high-precision reference source and programmable comparator, low power consumption, I2C interface, 2 kSPS, 16-bit ADC
- Manufacturer
- CIMO
- Manufacturer part #
- CM1103-SOPTA
- Store part #
- C20606814
- Package / case
- MSOP-10
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,900 in stock
#C20606814
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹281.75 | ₹281.75 |
| 10+ | ₹236.75 | ₹2,367.50 |
| 30+ | ₹208.60 | ₹6,258.00 |
| 100+ | ₹183.42 | ₹18,342.00 |
| 500+ | ₹170.42 | ₹85,210.00 |
| 1,000+ | ₹164.66 | ₹1,64,660.00 |
1 × ₹281.75
₹281.75
excl. GST
₹332.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CM1103-SOPTA
₹281.75 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Interface
- I2C
- Quiescent Current (Iq)
- 2uA
- Voltage - Supply
- 2.5V~5V
- Number of Channels
- 4
- Integral non - linearity
- 1LSB
- Voltage Reference
- Built-in
- Clock/Oscillator
- Built-in
- Clock Frequency
- 500kHz
- Features
- Multiplexers;Power-on reset;Soft reset
- Resolution(Bits)
- 16;2kHz
- ADC architecture
- Sigma-Delta
- Programmable Gain
- Support
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
A high-precision, low-power, I²C-compatible 16-bit ΔΣ ADC with an integrated low-drift voltage reference, oscillator, PGA, and digital comparator. The device performs conversions at 2kSPS, with the PGA providing an input voltage range of ±256mV to ±6.144V. The input multiplexer supports 4 single-ended inputs or 2 differential inputs. The digital comparator provides overvoltage detection. The device operates in single-shot or continuous conversion mode; in single-shot mode, it automatically powers down upon conversion completion, significantly reducing idle-state power consumption.
Applications
- Handheld instruments
- Battery voltage/current monitoring
- Consumer electronics
- Factory automation and process control
Key features
- Wide supply voltage range: 2.5V to 5V
- Low current consumption: 260pA (continuous conversion mode)
- Programmable data rate: 6.25SPS to 2kSPS
- Internal low-drift voltage reference
- Internal oscillator
- Internal programmable gain amplifier
- I²C interface
- Operating temperature range: -40°C ~ 125°C
- Supports 4 single-ended inputs or 2 differential inputs
- AEC-Q100 compliant
