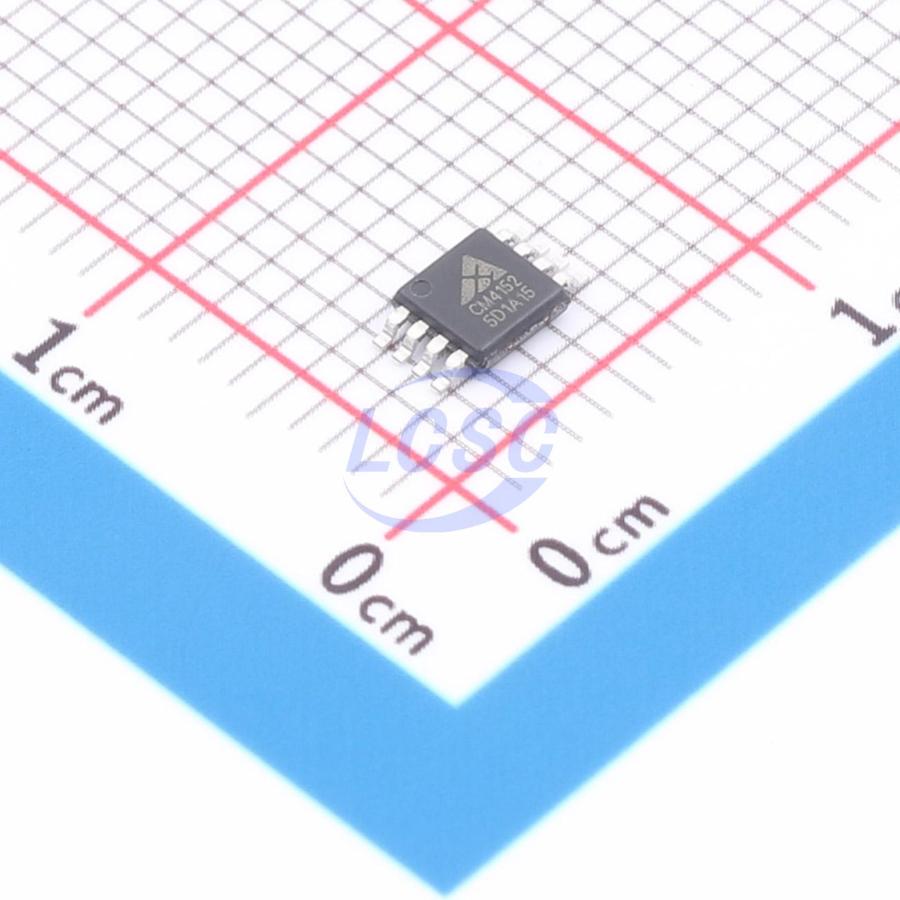

CM4152-MSOTA
50mA 2 150uV 20V/us 130dB 1.5pA 2.3mA 7MHz MSOP-8 Instrumentation, Op Amps, Buffer Amps
MSOP-8RoHSActive
- Manufacturer
- CIMO
- Manufacturer part #
- CM4152-MSOTA
- Store part #
- C54451287
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,026 in stock
#C54451287
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹286.56 | ₹286.56 |
| 10+ | ₹243.51 | ₹2,435.10 |
| 30+ | ₹216.53 | ₹6,495.90 |
| 100+ | ₹188.84 | ₹18,884.00 |
| 500+ | ₹176.52 | ₹88,260.00 |
| 1,000+ | ₹170.97 | ₹1,70,970.00 |
1 × ₹286.56
₹286.56
excl. GST
₹338.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CM4152-MSOTA
₹286.56 for 1 + GST
Specifications
- Output Current
- 50mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 150uV
- Slew Rate
- 20V/us
- Input Offset Current(Ios)
- 3.5pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 130dB
- Ib - Input Bias Current
- 1.5pA
- Input Offset Voltage Drift(Vos TC)
- 1.5uV/℃
- Quiescent Current
- 2.3mA
- Gain Bandwidth Product
- 7MHz
- Input Voltage Noise Density
- 7nV/√Hz@1kHz
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.123 g
Overview
CM4151/CM4152 are single/dual-channel precision op-amps featuring low offset voltage, low input bias current, low input voltage noise, and low input current noise, making them especially suited for high-impedance sensor signal amplification and shunt-based precision current measurement. The combination of DC accuracy, low noise, and fast settling time in the CM4151/CM4152 significantly improves measurement accuracy in medical instruments, electronic measurement systems, and automatic test equipment. The CM4151/CM4152 maintain fast settling performance when driving large capacitive loads, and exhibit no output phase reversal when the input voltage exceeds the common-mode voltage range. The CM4151 is available in MSOP8 and SOP8 packages, while the CM4152 is available in MSOP8, SOP8, and DFN packages. Both are rated for an operating temperature range of -40℃ to 125℃.
Applications
- Instrumentation
- Multi-pole filters
- Precision current measurement
- Photodiode amplifiers
- Sensors
- Audio
Key features
- Fast settling time: 500ns (settling to 0.1%)
- Low offset voltage: 0.8mV max
- Low offset voltage drift: 1.5μV/℃ typical
- Low input bias current: 1.5pA typical (VS = ±15V)
- Dual supply: ±5V~±15V
- Low noise: 7nV/√Hz typical (1kHz)
- Low distortion: 0.0005%
- No phase reversal
- Unity-gain stable
- SOP8 4.9mm × 3.9mm, MSOP8 3mm × 3mm (CM4151) packages
- SOP8 4.9mm × 3.9mm, MSOP8 3mm × 3mm, DFN8 3mm × 3mm (CM4152) packages
