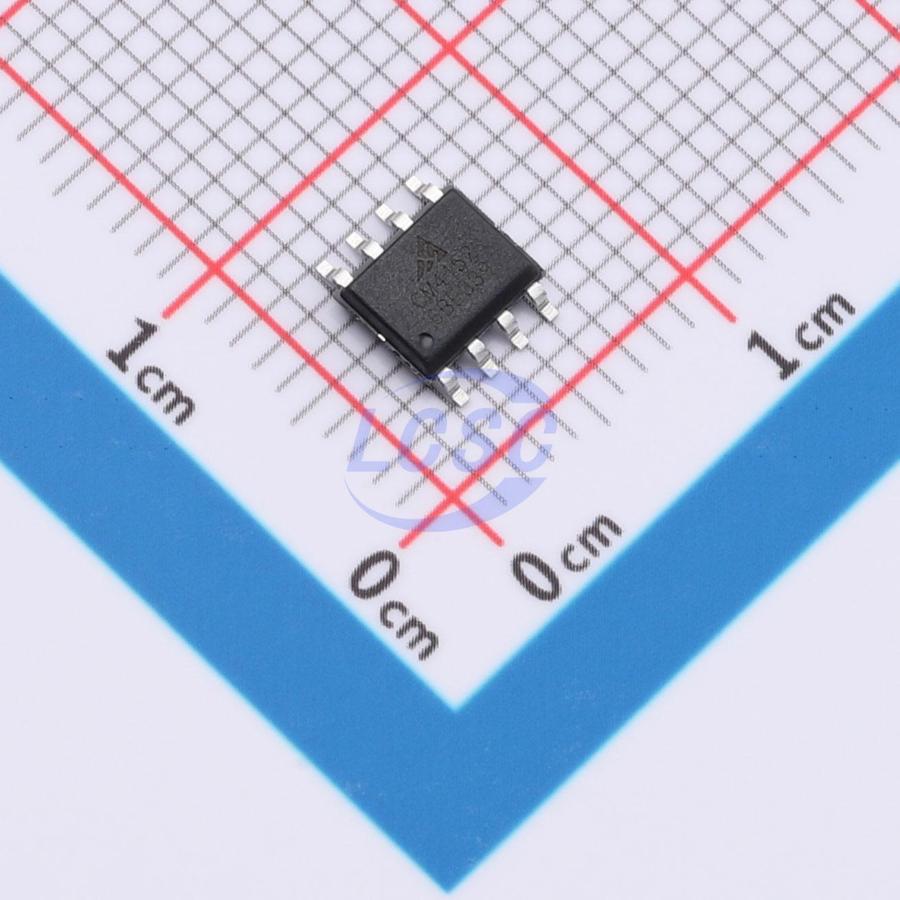

CIMO

CM4152-SOPTA

48mA 2 100uV 22V/us 125dB 1.5pA 6.2MHz 2.3mA SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

Manufacturer: CIMO
Manufacturer part #: CM4152-SOPTA
Store part #: C53235284
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,964 in stock

#C53235284

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹348.11	₹348.11
10+	₹295.81	₹2,958.10
30+	₹263.04	₹7,891.20
100+	₹229.39	₹22,939.00
500+	₹214.43	₹1,07,215.00
1,000+	₹207.70	₹2,07,700.00

Quantity (min 1)

1 × ₹348.11

₹348.11

excl. GST

₹410.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

CM4152-SOPTA

₹348.11 for 1 + GST

Specifications

Output Current: 48mA
Number of Channels: 2
Vos - Input Offset Voltage: 100uV
Slew Rate: 22V/us
Input Offset Current(Ios): 1.2pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 125dB
Ib - Input Bias Current: 1.5pA
Input Offset Voltage Drift(Vos TC): 1.5uV/℃
Gain Bandwidth Product: 6.2MHz
Quiescent Current: 2.3mA
Features: Overvoltage protection;Reverse-phase input protection;Built-in compensation
Input Voltage Noise Density: 7nV/√Hz@1kHz

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.162 g

Overview

CM4151/CM4152 are single/dual-channel precision op-amps featuring low offset voltage, low input bias current, low input voltage noise, and low input current noise. These characteristics make them particularly suitable for high-impedance sensor signal amplification and shunt-based precision current measurement. The combination of DC accuracy, low noise, and fast settling time in this op-amp series significantly enhances measurement accuracy in medical instruments, electronic measurement systems, and automated test equipment. They maintain fast settling performance when driving large capacitive loads and exhibit no output phase reversal when the input voltage exceeds the common-mode voltage range. Both CM4151/CM4152 are available in MSOP8 and SOP8 surface-mount packages, with a rated operating temperature range of -40℃ ~ 125℃.
