CN3304

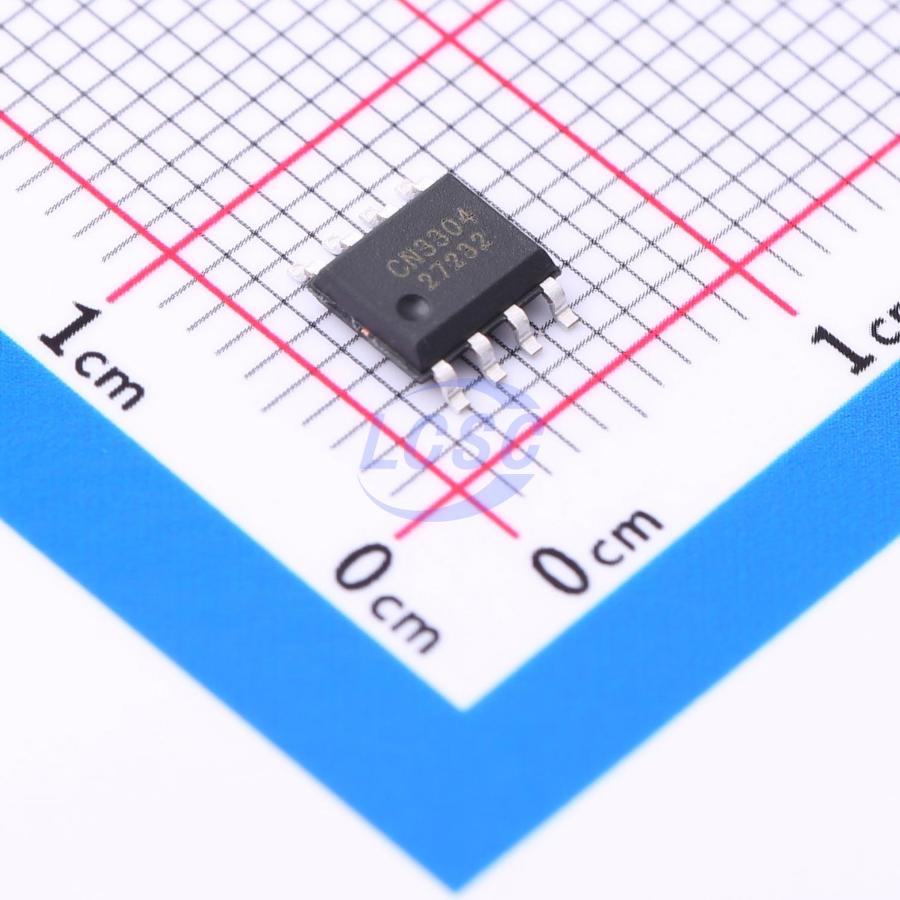

Battery Charging IC Lithium-ion/Polymer SOP-8
PFM step-up four-cell lithium battery charging control integrated circuit
- Manufacturer
- CONSONANCE
- Manufacturer part #
- CN3304
- Store part #
- C3034874
- Package / case
- SOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,740 in stock
#C3034874
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.42 | ₹87.10 |
| 50+ | ₹15.27 | ₹763.50 |
| 150+ | ₹14.35 | ₹2,152.50 |
| 500+ | ₹13.20 | ₹6,600.00 |
| 2,500+ | ₹11.77 | ₹29,425.00 |
| 4,000+ | ₹11.47 | ₹45,880.00 |
5 × ₹17.42
₹87.10
excl. GST
₹102.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CN3304
₹87.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 2uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 2.7V~6.5V
- Features
- Constant current charging;Constant voltage charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 10.5A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.105 g
Overview
CN3304 is a PFM boost-type charge controller IC for four-cell lithium battery charging. It operates with an input voltage range of 2.7V to 6.5V and integrates an internal voltage reference, inductor current sensing unit, battery voltage detection circuit, output overvoltage protection circuit, low battery voltage protection unit, control unit, and off-chip MOSFET driver circuit. Ideally suited for 5V input four-cell lithium battery charging control applications, it offers the advantages of minimal external components, rich functionality, and simple circuit design.
Applications
- Four-cell lithium battery charge control
- Power tools, etc.
- Audio equipment
- Standalone chargers
Key features
- Maximum operating frequency up to 1MHz
- Operating temperature range: -40°C to +85°C
- When battery voltage drops below input voltage or battery short-circuit occurs, the on-chip external N-channel and P-channel MOSFETs work together to continue charging the battery at a reduced current, providing battery protection
- Chip enable input
- Status indicator output
- 8-pin SOP8 package
