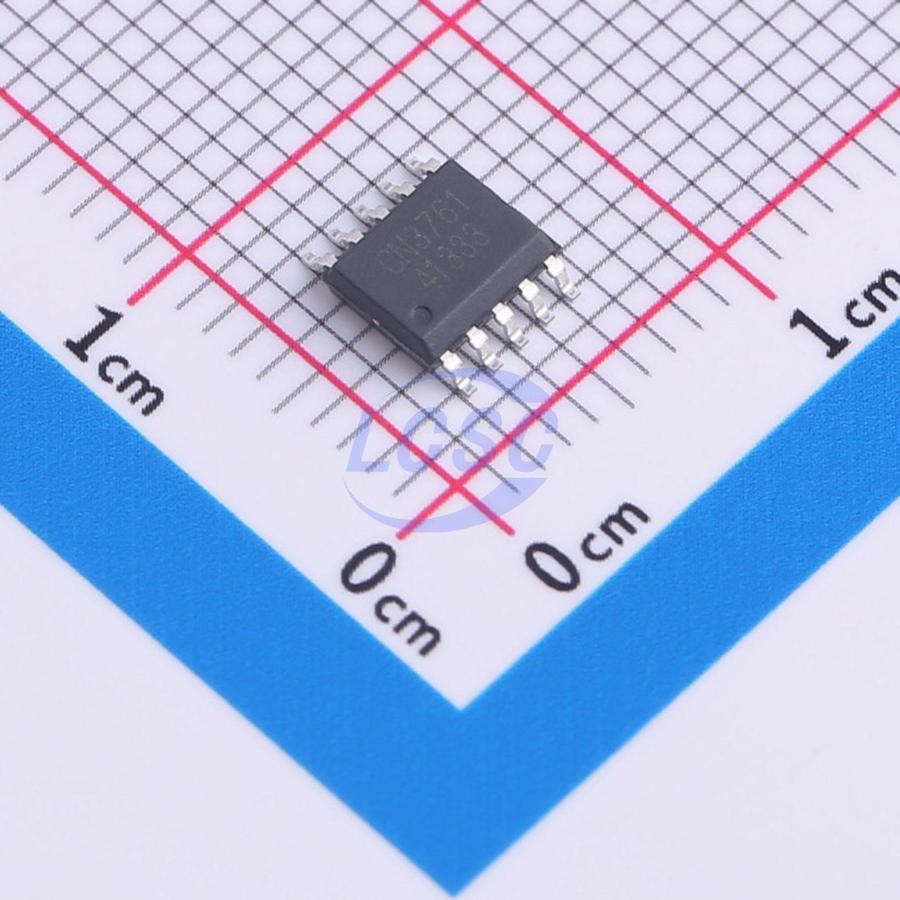

CN3761
Battery Charging IC Lithium-ion/Polymer SOIC-10-1mm
4A single-cell lithium battery charging management integrated circuit
- Manufacturer
- CONSONANCE
- Manufacturer part #
- CN3761
- Store part #
- C41308
- Package / case
- SOIC-10-1mm
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,907 in stock
#C41308
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.18 | ₹55.18 |
| 10+ | ₹42.80 | ₹428.00 |
| 30+ | ₹37.59 | ₹1,127.70 |
| 100+ | ₹31.08 | ₹3,108.00 |
| 500+ | ₹27.39 | ₹13,695.00 |
| 1,000+ | ₹25.64 | ₹25,640.00 |
1 × ₹55.18
₹55.18
excl. GST
₹65.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CN3761
₹55.18 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1mA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~28V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Under-voltage lockout;Soft-start
- The Chip Type
- Charging IC
- Charge Current - Max
- 4A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.222 g
Overview
CN3761 is a PWM buck-mode single-cell lithium battery charge management IC that independently manages single-cell lithium battery charging. It features a compact package, minimal external components, and ease of use. CN3761 supports trickle, constant current, and constant voltage charging modes, making it well-suited for lithium battery charge management. In constant voltage mode, CN3761 regulates the battery voltage to 4.2V, which can be adjusted upward via an external resistor; in constant current mode, the charge current is set through an external resistor.
Applications
- Power banks
- Handheld devices
- Backup battery applications
- Portable industrial and medical instruments
- Power tools
- Standalone battery chargers
Key features
- Trickle charging at 17.5% of the set constant-current charge current for deeply discharged lithium batteries when battery voltage falls below 66.5% (typical) of the constant-voltage charge voltage
- In the constant-voltage charging phase, charge current tapers gradually; charging terminates when current drops to 16% of the constant-current charge current
- In the charge termination state, a new charge cycle starts automatically if battery voltage drops to 95.5% of the constant-voltage charge voltage
- Automatically enters sleep mode when input power is lost or input voltage falls below battery voltage
- Additional features include input undervoltage lockout, battery overvoltage protection, and charge status indication
- 10-pin SSOP package
