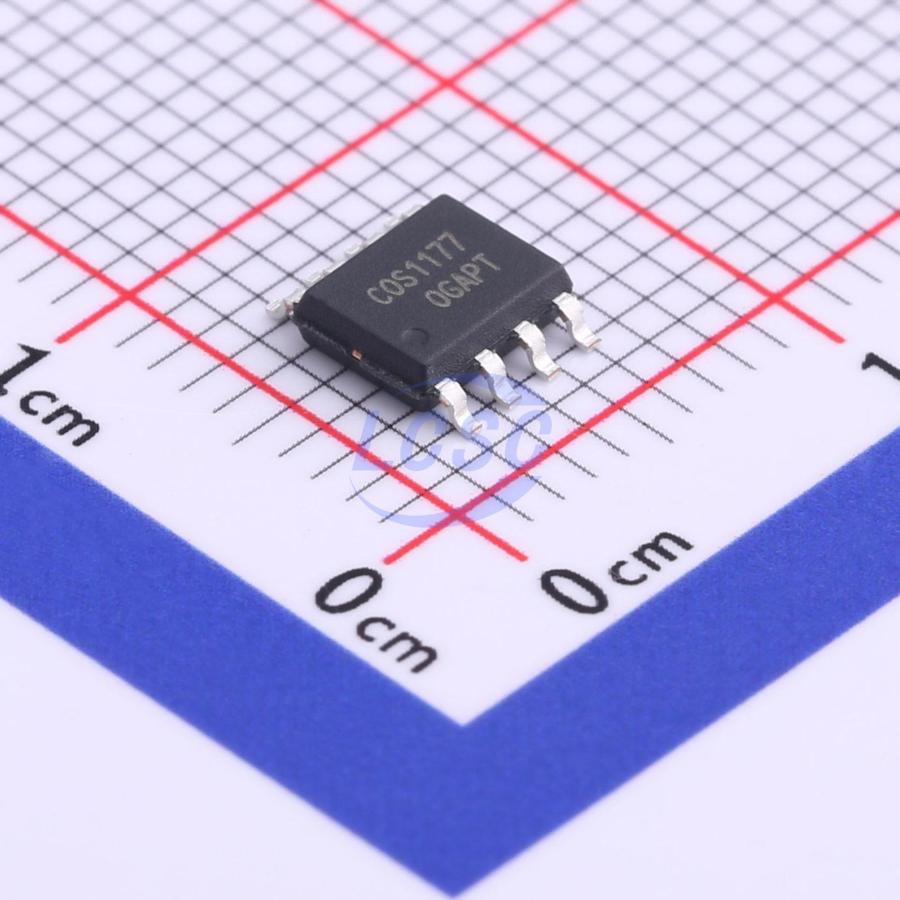

COS1177SR
1 50uV 0.7V/us 125dB 1nA 330uA 2MHz SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
36V, Precision Low-Noise Operational Amplifiers
- Manufacturer
- COSINE
- Manufacturer part #
- COS1177SR
- Store part #
- C726650
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,885 in stock
#C726650
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.85 | ₹244.25 |
| 50+ | ₹38.99 | ₹1,949.50 |
| 150+ | ₹34.77 | ₹5,215.50 |
| 500+ | ₹25.67 | ₹12,835.00 |
| 2,500+ | ₹23.31 | ₹58,275.00 |
| 4,000+ | ₹21.91 | ₹87,640.00 |
5 × ₹48.85
₹244.25
excl. GST
₹288.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
COS1177SR
₹244.25 for 5 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 50uV
- Slew Rate
- 0.7V/us
- Input Offset Current(Ios)
- 200pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 125dB
- Ib - Input Bias Current
- 1nA
- Input Offset Voltage Drift(Vos TC)
- 200nV/℃
- Quiescent Current
- 330uA
- Gain Bandwidth Product
- 2MHz
- Features
- Built-in compensation;Overvoltage protection
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Dual Supply
- -18V~-2.5V;2.5V~18V
- Single Supply
- 5V~36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.213 g
