COSINEDatasheet (PDF)

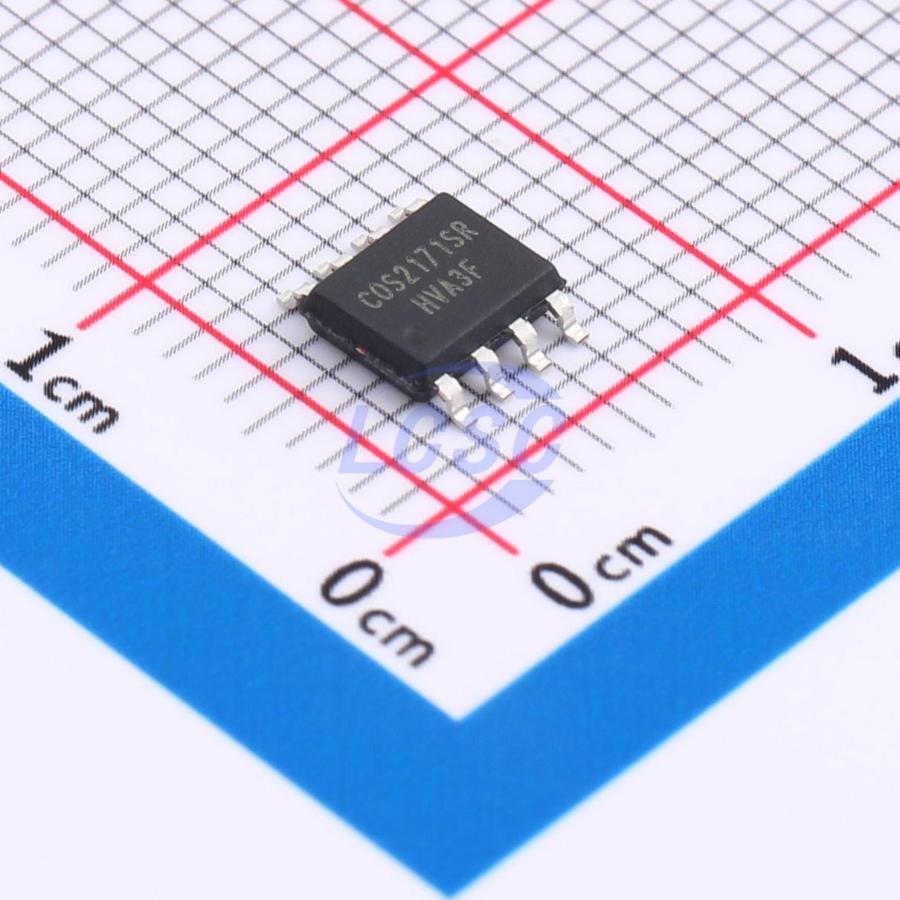

COS2171SRA
40mA 2 300uV 3V/us 120dB 10pA 5MHz 700uA Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
40V 5MHz Rail-to-Rail Input/Output Single Supply Operational Amplifiers
- Manufacturer
- COSINE
- Manufacturer part #
- COS2171SRA
- Store part #
- C7434391
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,860 in stock
#C7434391
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.27 | ₹251.35 |
| 50+ | ₹39.39 | ₹1,969.50 |
| 150+ | ₹34.61 | ₹5,191.50 |
| 500+ | ₹30.91 | ₹15,455.00 |
| 2,500+ | ₹28.30 | ₹70,750.00 |
| 4,000+ | ₹26.76 | ₹1,07,040.00 |
5 × ₹50.27
₹251.35
excl. GST
₹296.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
COS2171SRA
₹251.35 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 300uV
- Slew Rate
- 3V/us
- Input Offset Current(Ios)
- 4pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 300nV/℃
- Gain Bandwidth Product
- 5MHz
- Quiescent Current
- 700uA
- Features
- EMI filtering/RF suppression;Built-in compensation
- Input Voltage Noise Density
- 18nV/√Hz@1kHz
- Dual Supply
- 2.25V~20V;-20V~-2.25V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 4.5V~40V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.177 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | COS2171SRB#C7434392COSINE · SOP-8 | COSINE | SOP-8 | 580 | ₹45.48 · 580 in stock | View |
 | COS2172SRA#C7434393COSINE · SOP-8 | COSINE | SOP-8 | 426 | ₹71.15 · 426 in stock | View |
 | COS2172SRB#C7434394COSINE · SOP-8 | COSINE | SOP-8 | 1,380 | ₹39.48 · 1,380 in stock | View |
 | COS722SR#C693063COSINE · SOIC-8 | COSINE | SOIC-8 | 10,310 | ₹23.03 · 10,310 in stock | View |
 | COS6022SR#C18198084COSINE · SOP-8 | COSINE | SOP-8 | 175 | ₹20.20 · 175 in stock | View |
