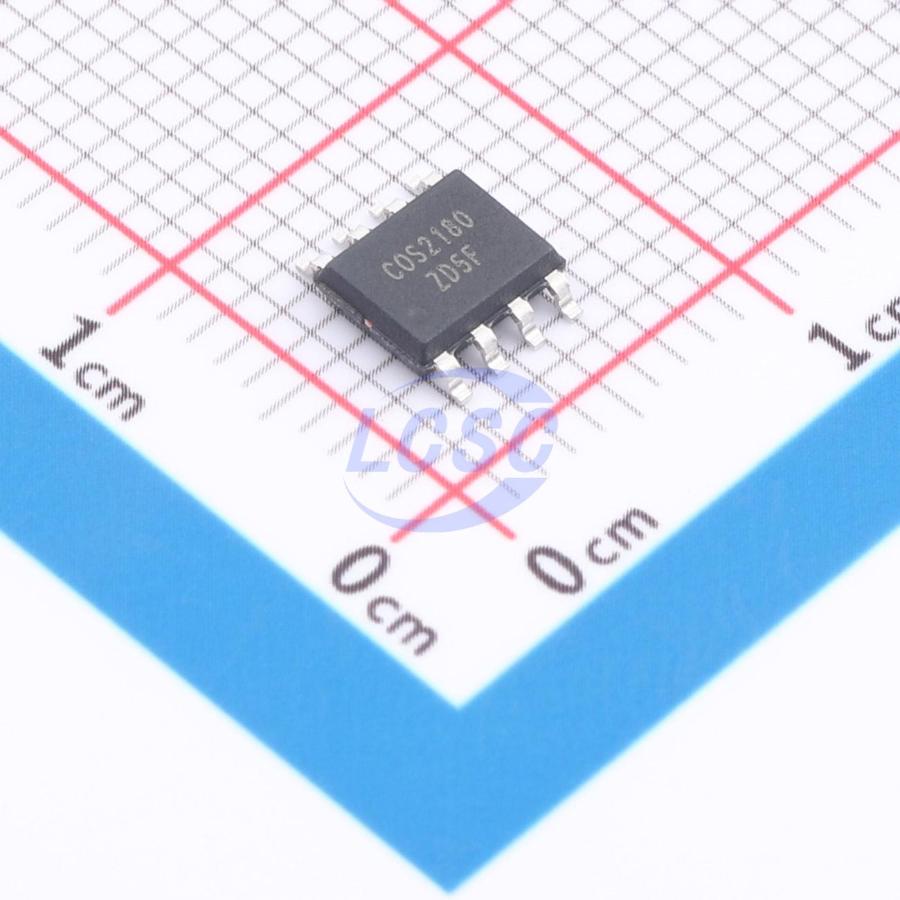

COS2180SRC

18mA 2 125uV 4V/us 130dB 150pA 2MHz 450uA Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

Manufacturer: COSINE
Manufacturer part #: COS2180SRC
Store part #: C49823505
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,454 in stock

#C49823505

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹51.29	₹51.29
10+	₹45.42	₹454.20
30+	₹42.60	₹1,278.00
100+	₹39.56	₹3,956.00
500+	₹37.81	₹18,905.00
1,000+	₹36.95	₹36,950.00

Quantity (min 1)

1 × ₹51.29

₹51.29

excl. GST

₹60.52 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

COS2180SRC

₹51.29 for 1 + GST

Specifications

Output Current: 18mA
Number of Channels: 2
Vos - Input Offset Voltage: 125uV
Slew Rate: 4V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 130dB
Ib - Input Bias Current: 150pA
Input Offset Voltage Drift(Vos TC): 5nV/℃
Gain Bandwidth Product: 2MHz
Quiescent Current: 450uA
Features: Zero drift / auto-zero;Built-in compensation;Reverse-phase input protection
Input Voltage Noise Density: 10nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -18V~-2.25V;2.25V~18V
Single Supply: 4.5V~36V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1 g

Overview

COS180 (single), COS2180 (dual), and COS4180 (quad) are low-power, precision op-amps that operate from a single supply of +4.5V to +36V or dual supplies of ±2.25V to ±18V. The COSx180 series employs chopper-stabilized technology to deliver ultralow offset voltage and near-zero temperature drift. The COSx180 series is unity-gain stable with a typical gain-bandwidth product of 2MHz. Despite low quiescent current, the COSx180 series offers excellent overall performance and versatility. They feature rail-to-rail input and output ranges. The output voltage swing extends to within 20mV of each supply rail, providing maximum output dynamic range along with excellent overload recovery. The ultralow temperature offset drift and ultralow input bias current make these devices ideal for low-offset, low-power, and high-impedance applications.

Applications

Sensor conditioning
Temperature measurement
Transducers
Test equipment
Medical instrumentation
Battery management systems

Key features

Wide supply range: Single supply: 4.5V ~ 36V; Dual supply: ±2.25V ~ ±18V
Low offset voltage: 75µV (max)
Low input bias current: 150pA
Zero drift: 0.005µV/℃
Low quiescent current: 450μA
Gain bandwidth product: 2MHz
Slew rate: 4V/µs
Rail-to-rail input and output
Unity-gain stable
No phase reversal
Extended temperature range: -40℃ ~ +125℃
Small package: COS180 available in SOT23-5/SOP-8; COS2180 available in SOP-8/MSOP-8; COS4180 available in SOP14/TSSOP14
