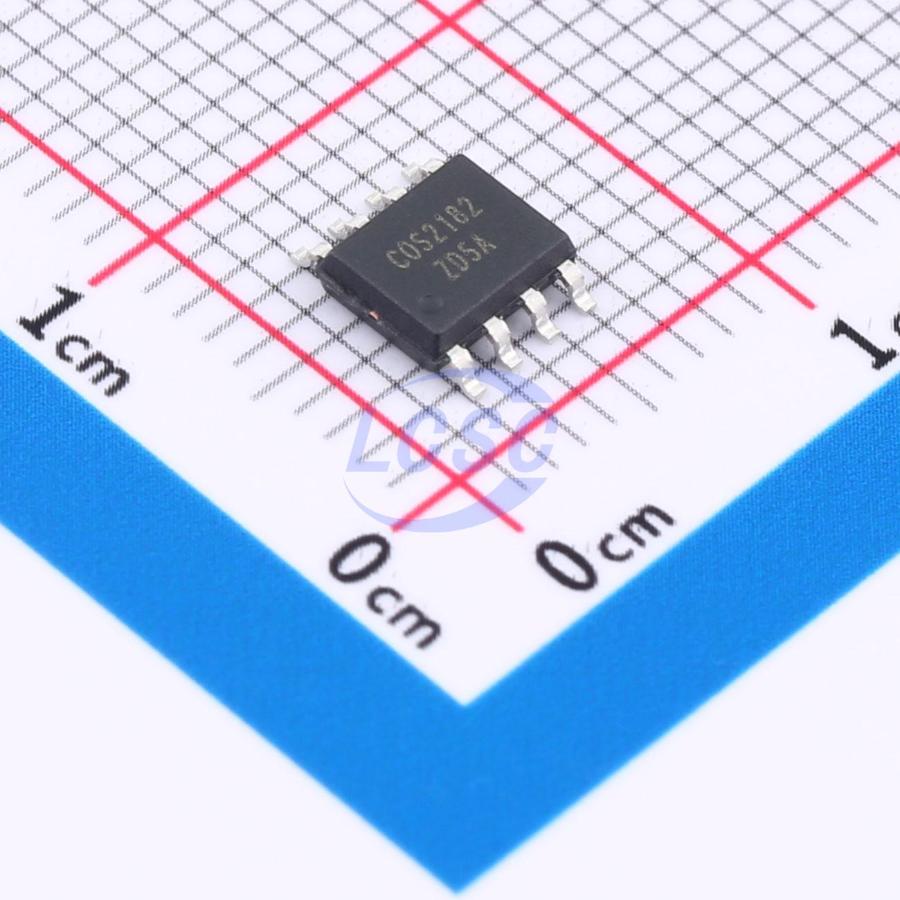

COS2182U
18mA 2 10uV 10V/us 5pA 140dB 5MHz 580uA Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
36V 5MHz RRIO Zero-Drift Precision Operational Amplifiers
- Manufacturer
- COSINE
- Manufacturer part #
- COS2182U
- Store part #
- C42411194
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,555 in stock
#C42411194
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹102.96 | ₹102.96 |
| 10+ | ₹81.40 | ₹814.00 |
| 30+ | ₹70.53 | ₹2,115.90 |
| 100+ | ₹59.87 | ₹5,987.00 |
| 500+ | ₹53.56 | ₹26,780.00 |
| 1,000+ | ₹50.06 | ₹50,060.00 |
1 × ₹102.96
₹102.96
excl. GST
₹121.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
COS2182U
₹102.96 for 1 + GST
Specifications
- Output Current
- 18mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 10uV
- Slew Rate
- 10V/us
- Input Offset Current(Ios)
- 3pA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 5pA
- Common Mode Rejection Ratio(CMRR)
- 140dB
- Input Offset Voltage Drift(Vos TC)
- 5nV/℃
- Gain Bandwidth Product
- 5MHz
- Quiescent Current
- 580uA
- Features
- Zero drift / auto-zero;Reverse-phase input protection;Built-in compensation
- Input Voltage Noise Density
- 10nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -18V~-2.25V;2.25V~18V
- Single Supply
- 4.5V~36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.112 g
