COSINEDatasheet (PDF)

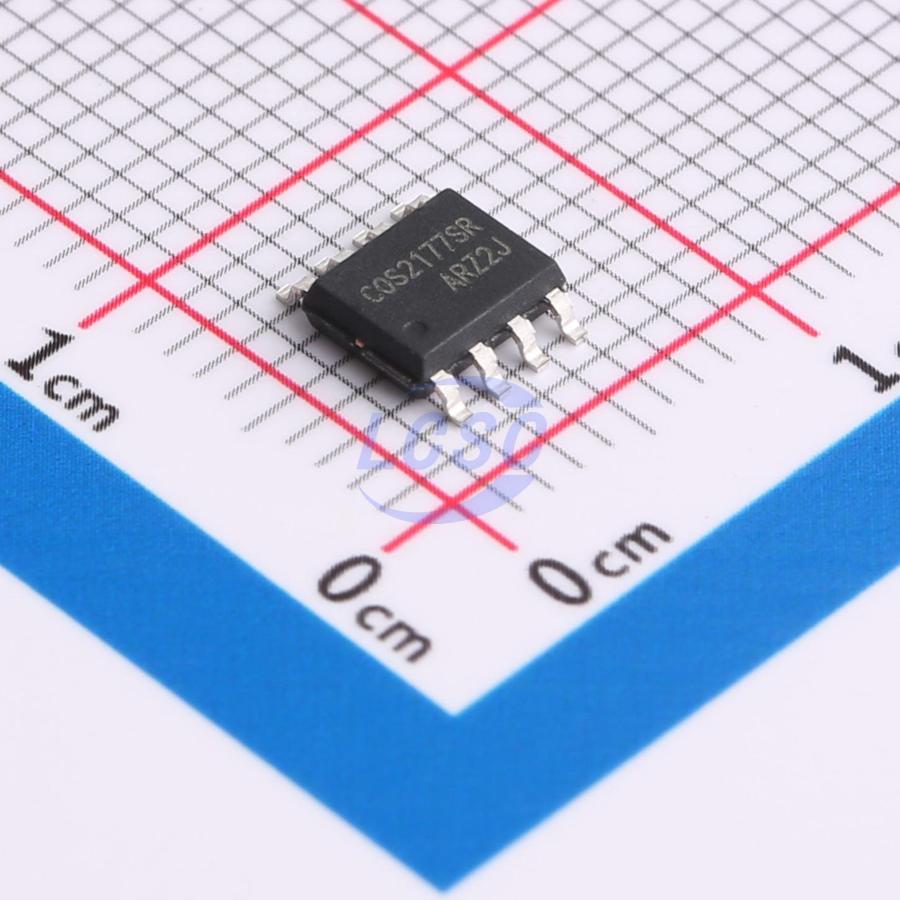

COS2277SR
10mA 2 50uV 0.7V/us 125dB 2nA 330uA 2MHz SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
36V, Precision Low-Noise Operational Amplifiers
- Manufacturer
- COSINE
- Manufacturer part #
- COS2277SR
- Store part #
- C5447205
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,427 in stock
#C5447205
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹93.71 | ₹93.71 |
| 10+ | ₹74.18 | ₹741.80 |
| 30+ | ₹64.21 | ₹1,926.30 |
| 100+ | ₹54.44 | ₹5,444.00 |
| 500+ | ₹48.59 | ₹24,295.00 |
| 1,000+ | ₹45.55 | ₹45,550.00 |
1 × ₹93.71
₹93.71
excl. GST
₹110.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
COS2277SR
₹93.71 for 1 + GST
Specifications
- Output Current
- 10mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 50uV
- Slew Rate
- 0.7V/us
- Input Offset Current(Ios)
- 200pA
- Common Mode Rejection Ratio(CMRR)
- 125dB
- Ib - Input Bias Current
- 2nA
- Input Offset Voltage Drift(Vos TC)
- 700nV/℃
- Quiescent Current
- 330uA
- Gain Bandwidth Product
- 2MHz
- Features
- Built-in compensation;Overvoltage protection
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Dual Supply
- -18V~-2.25V;2.25V~18V
- Single Supply
- 5V~36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.18 g
