COSINEDatasheet (PDF)

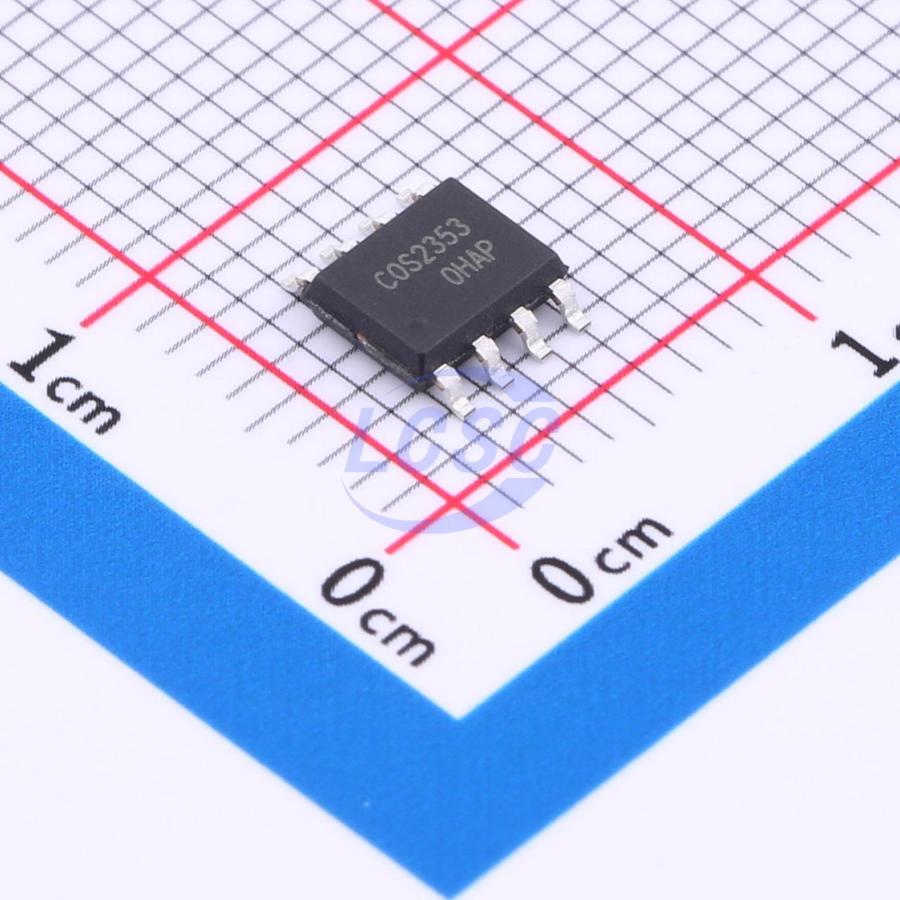

COS2353SR
100mA 2 600uV 38V/us 2.5pA 125dB 50MHz 2.5mA Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
50MHz, Rail-to-Rail Input/Output High Speed Operational Amplifiers
- Manufacturer
- COSINE
- Manufacturer part #
- COS2353SR
- Store part #
- C2685365
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,070 in stock
#C2685365
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.99 | ₹204.95 |
| 50+ | ₹31.80 | ₹1,590.00 |
| 150+ | ₹27.88 | ₹4,182.00 |
| 500+ | ₹22.98 | ₹11,490.00 |
| 3,000+ | ₹20.80 | ₹62,400.00 |
| 6,000+ | ₹19.47 | ₹1,16,820.00 |
5 × ₹40.99
₹204.95
excl. GST
₹241.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
COS2353SR
₹204.95 for 5 + GST
Specifications
- Output Current
- 100mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 600uV
- Slew Rate
- 38V/us
- Input Offset Current(Ios)
- 2.5pA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 2.5pA
- Common Mode Rejection Ratio(CMRR)
- 125dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Gain Bandwidth Product
- 50MHz
- Quiescent Current
- 2.5mA
- Features
- Built-in compensation
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Dual Supply
- -2.25V~2.25V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.001 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | COS2350SR#C19078363COSINE · SOP-8 | COSINE | SOP-8 | 3 | ₹58.68 · 3 in stock | View |
 | COS8092SR#C726663COSINE · SOP-8 | COSINE | SOP-8 | 802 | ₹58.40 · 802 in stock | View |
 | COS8052SR#C2685361COSINE · SOP-8 | COSINE | SOP-8 | 2,990 | ₹47.58 · 2,990 in stock | View |
 | COS8042ARZ#C42162995COSINE · SOP-8 | COSINE | SOP-8 | On request | ₹382.25 · 0 in stock | View |
