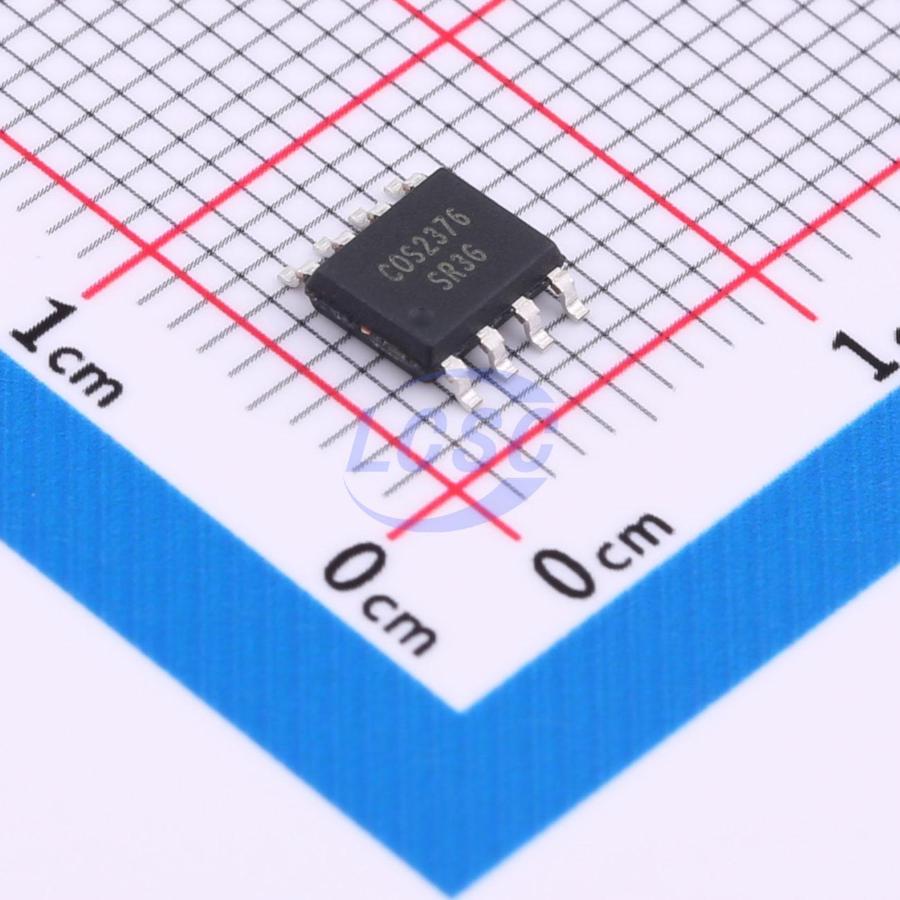

COS2376SRA
21mA 2 10uV 6V/us 30pA 120dB 425uA 7MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
Zero-Drift Operational Amplifiers
- Manufacturer
- COSINE
- Manufacturer part #
- COS2376SRA
- Store part #
- C7525167
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,119 in stock
#C7525167
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹42.38 | ₹42.38 |
| 10+ | ₹37.81 | ₹378.10 |
| 30+ | ₹35.85 | ₹1,075.50 |
| 100+ | ₹33.46 | ₹3,346.00 |
| 500+ | ₹32.37 | ₹16,185.00 |
| 1,000+ | ₹31.51 | ₹31,510.00 |
1 × ₹42.38
₹42.38
excl. GST
₹50.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
COS2376SRA
₹42.38 for 1 + GST
Specifications
- Output Current
- 21mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 10uV
- Slew Rate
- 6V/us
- Input Offset Current(Ios)
- 30pA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 30pA
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Input Offset Voltage Drift(Vos TC)
- 50nV/℃
- Quiescent Current
- 425uA
- Gain Bandwidth Product
- 7MHz
- Features
- Zero drift / auto-zero;EMI filtering/RF suppression;Built-in compensation
- Input Voltage Noise Density
- 15nV/√Hz@1kHz
- Dual Supply
- 1.25V~3.5V;-3.5V~-1.25V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~7V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.176 g
