COSINEDatasheet (PDF)

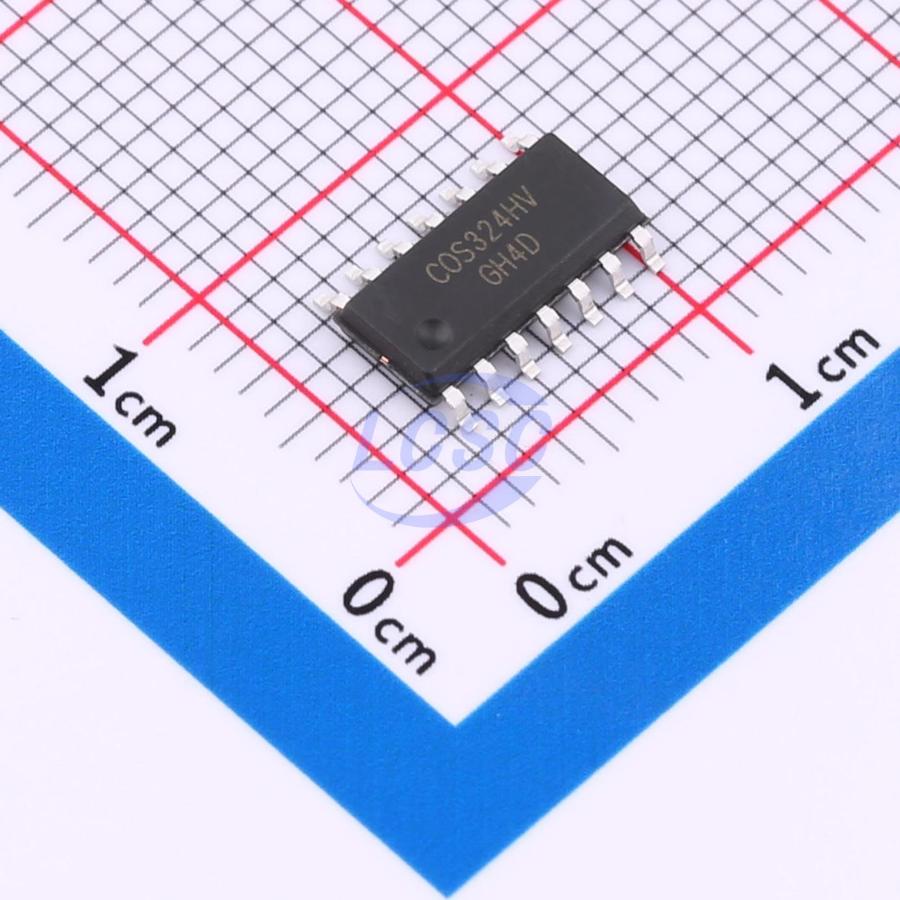

COS324HV
40mA 4 2mV 350V/ms 45nA 90dB 250uA 1MHz Rail-to-rail output SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-14ROHS CompliantActive
Low Cost, High Voltage Operational Amplifiers
- Manufacturer
- COSINE
- Manufacturer part #
- COS324HV
- Store part #
- C22447445
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,935 in stock
#C22447445
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.93 | ₹69.65 |
| 50+ | ₹11.03 | ₹551.50 |
| 150+ | ₹9.59 | ₹1,438.50 |
| 500+ | ₹8.51 | ₹4,255.00 |
| 3,000+ | ₹7.65 | ₹22,950.00 |
| 6,000+ | ₹7.21 | ₹43,260.00 |
5 × ₹13.93
₹69.65
excl. GST
₹82.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
COS324HV
₹69.65 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 350V/ms
- Input Offset Current(Ios)
- 3nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 45nA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 250uA
- Gain Bandwidth Product
- 1MHz
- Features
- Built-in compensation
- Dual Supply
- -15V~-1.5V;1.5V~15V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.277 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM324SR#C22447444COSINE · SOP-14 | COSINE | SOP-14 | 3,120 | ₹15.61 · 3,120 in stock | View |
 | LM2902SR#C42437070COSINE · SOP-14 | COSINE | SOP-14 | 1,755 | ₹12.52 · 1,755 in stock | View |
 | LMV324SR#C22391246COSINE · SOP-14 | COSINE | SOP-14 | 970 | ₹20.15 · 970 in stock | View |
 | COS324SR#C693061COSINE · SOP-14 | COSINE | SOP-14 | 1,640 | ₹22.94 · 1,640 in stock | View |
 | COS2254SR#C2979744COSINE · SOP-14 | COSINE | SOP-14 | 462 | ₹71.28 · 462 in stock | View |
