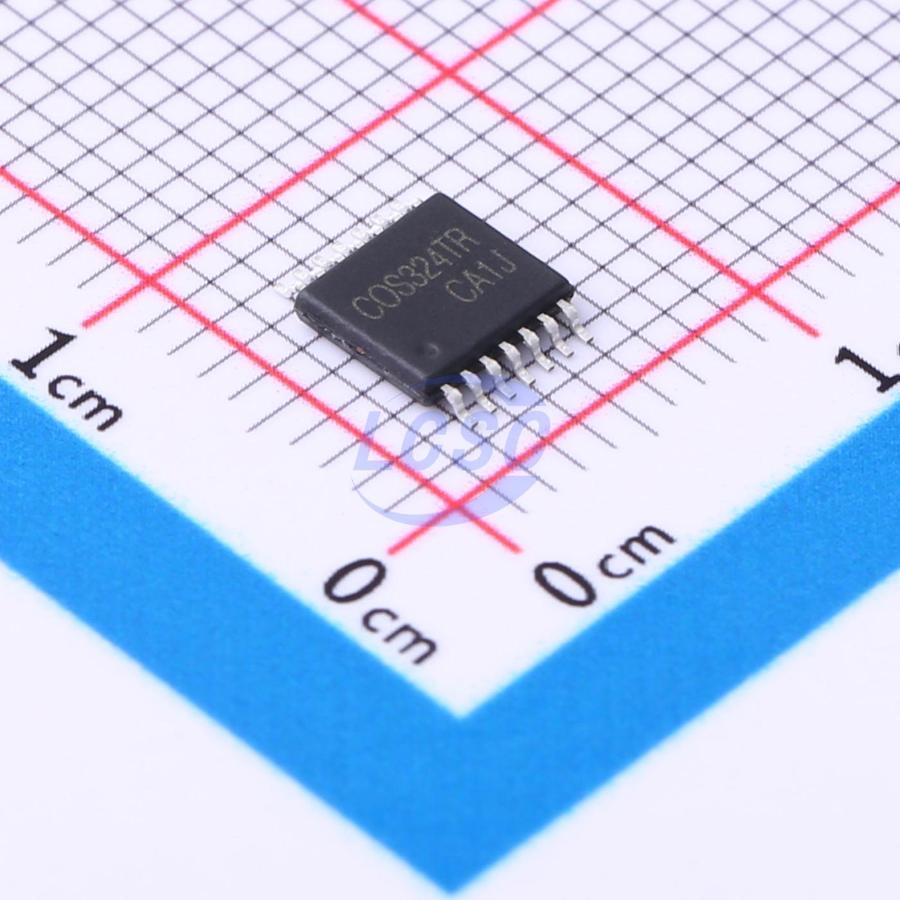

COS324TR COSINE

COS324TR

45mA 4 5mV 1V/us 2.5pA 125dB 85uA 1.5MHz Rail-to-rail output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS

TSSOP-14ROHS CompliantActive

1.5MHz, Low Cost Micro Power Operational Amplifiers

Manufacturer: COSINE
Manufacturer part #: COS324TR
Store part #: C2897458
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,830 in stock

#C2897458

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹24.82	₹124.10
50+	₹19.34	₹967.00
150+	₹16.99	₹2,548.50
500+	₹14.06	₹7,030.00
2,500+	₹12.75	₹31,875.00
4,000+	₹11.97	₹47,880.00

Quantity (min 5, multiples of 5)

5 × ₹24.82

₹124.10

excl. GST

₹146.44 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

COS324TR

₹124.10 for 5 + GST

Specifications

Output Current: 45mA
Number of Channels: 4
Vos - Input Offset Voltage: 5mV
Slew Rate: 1V/us
Input Offset Current(Ios): 2.5pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 2.5pA
Common Mode Rejection Ratio(CMRR): 125dB
Input Offset Voltage Drift(Vos TC): 5uV/℃
Quiescent Current: 85uA
Gain Bandwidth Product: 1.5MHz
Features: Built-in compensation
Input Voltage Noise Density: 28nV/√Hz@1kHz
Dual Supply: -1.05V~2.75V
Rail to Rail: Rail-to-rail output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.16 g
